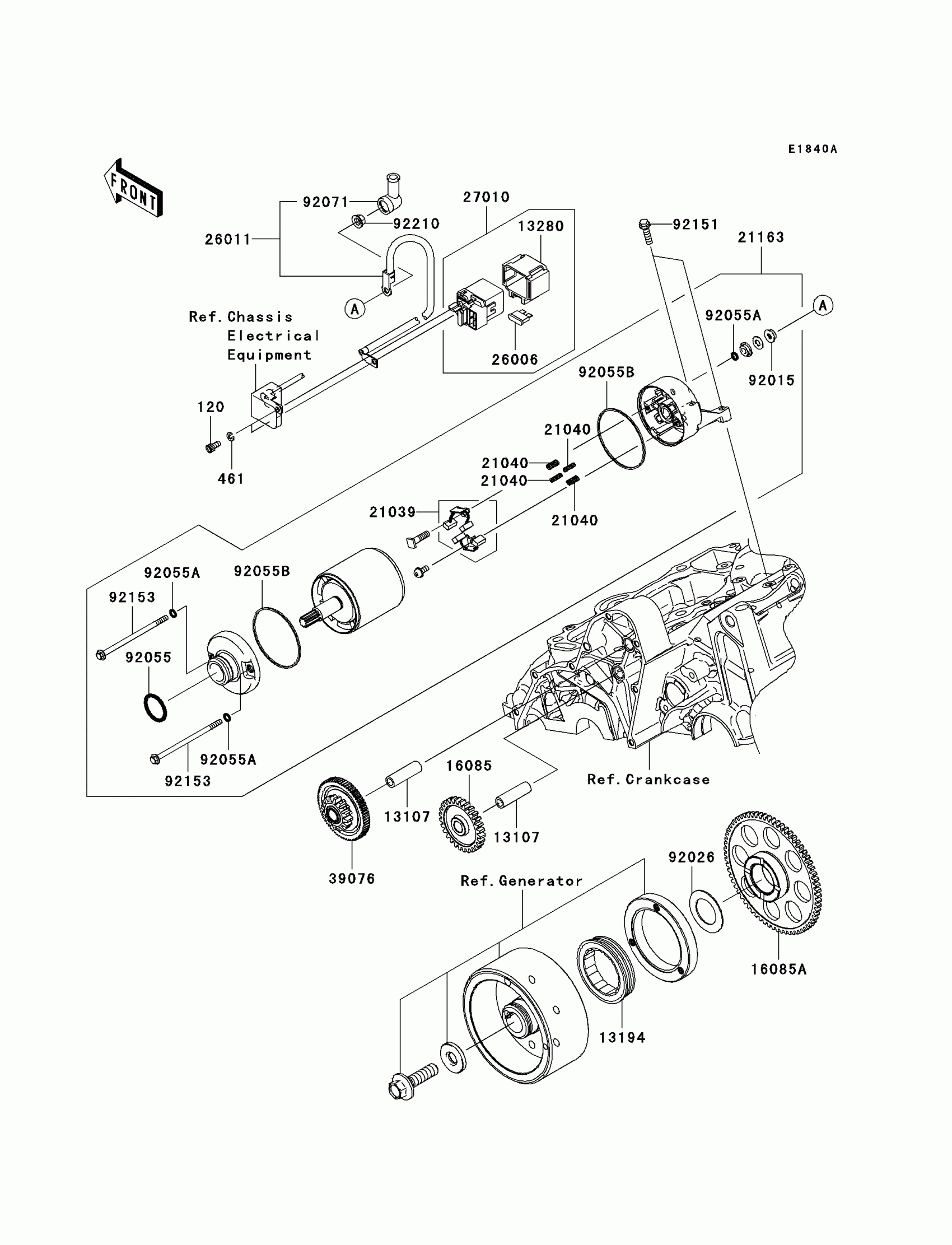

Kawasaki ER-6n (Australian) Starter Motor(ER650AE046805-) Diagram

Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.64

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

13107

SHAFT,IDLE GEAR

13107-1106

$16.69

13194

CLUTCH-ONEWAY

13194-1083

Unavailable

13280

HOLDER

13280-1263

$13.72

16085

GEAR,IDLE,28T

16085-0074

$104.12

16085A

GEAR,67T

16085-0076

$117.38

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0040

$500.40

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD

26011-0083

$36.81

27010

SWITCH,MAGNETIC

27010-1446

$136.50

39076

LIMITER,16T&66T

39076-0006

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92026

SPACER,29.1X47.5X1.2

92026-087

$9.91

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92071

GROMMET

92071-0024

$10.21

92151

BOLT,6X22

92151-1937

Unavailable

92153

BOLT

92153-1783

$11.93

92210

NUT,6MM

92210-0188

$2.15
