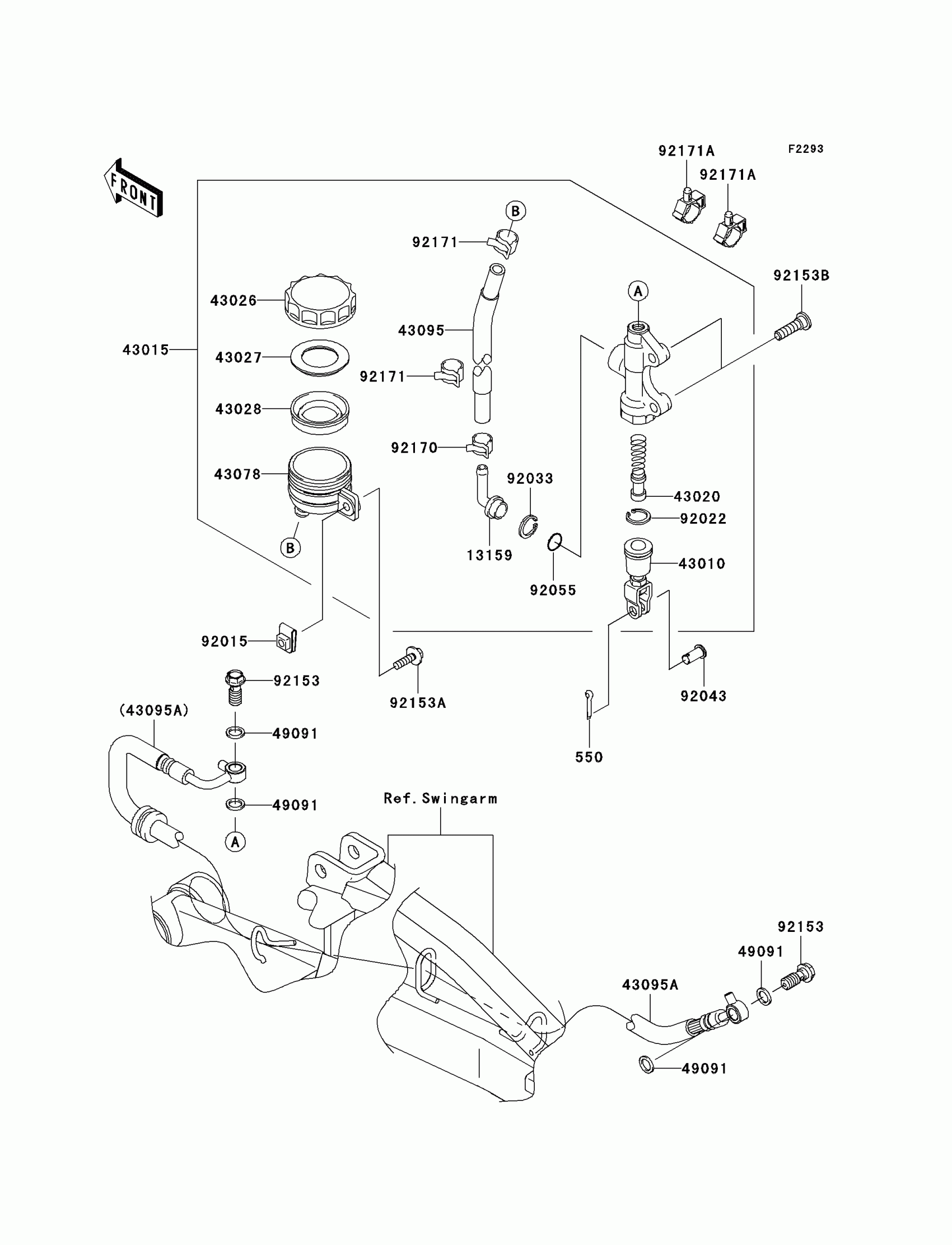

Kawasaki ER-6n (Australian) Rear Master Cylinder Diagram

Description

Price

550

PIN COTTER 2.0X15

550D2015

$1.04

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1074

$65.94

43015

CYLINDER-ASSY-MASTER,RR

43015-0068

$271.07

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0193

$19.77

43095A

HOSE-BRAKE,RR

43095-0238

$84.24

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,6MM

92015-1602

$7.34

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,6X22

92153-0725

$2.15

92153B

BOLT,SOCKET,8X30

92153-1624

$3.90

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,HOSE

92171-0463

$6.38

92171A

CLAMP

92171-0955

$5.33
