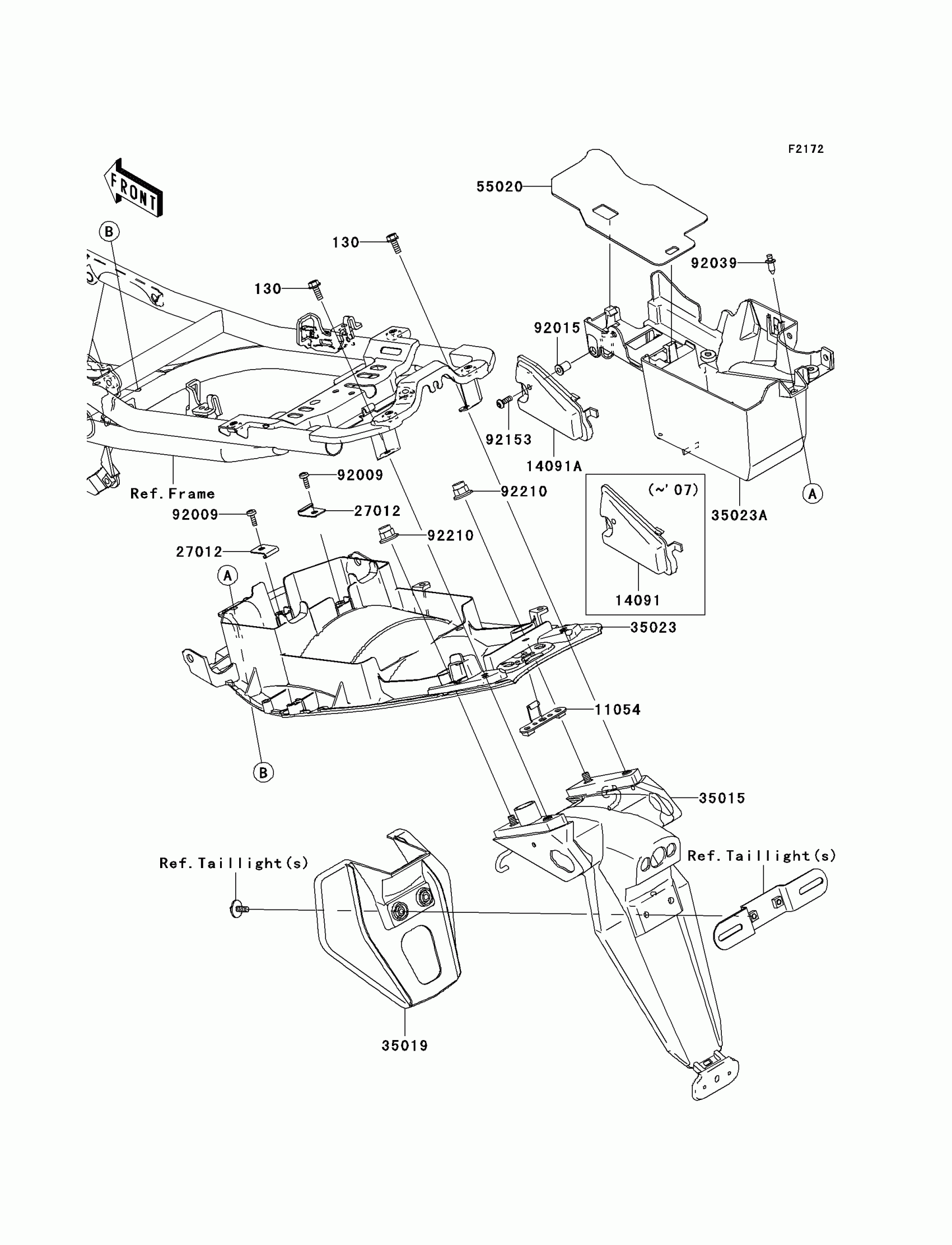

Kawasaki ER-6n (Australian) Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130BB0618

$1.81

11054

BRACKET,TAIL LAMP

11054-0253

$6.81

14091A

COVER,SWITCH MAINTENANCE

14091-0715

$8.57

27012

HOOK,BATTERY CASE

27012-1316

$11.01

35015

FLAP-COMP

35015-0005

$84.07

35019

FLAP

35019-0042

$38.90

35023

FENDER-REAR,RR

35023-0076

$65.47

35023A

FENDER-REAR,FR

35023-0077

$32.80

55020

GUARD,HEAT

55020-0220

$21.82

92009

SCREW,6X14

92009-3845

$1.06

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-1283

$2.80

92153

BOLT,SOCKET,5X16

92153-1244

$2.41

92210

NUT,CAP,6MM

92210-0170

$2.90
