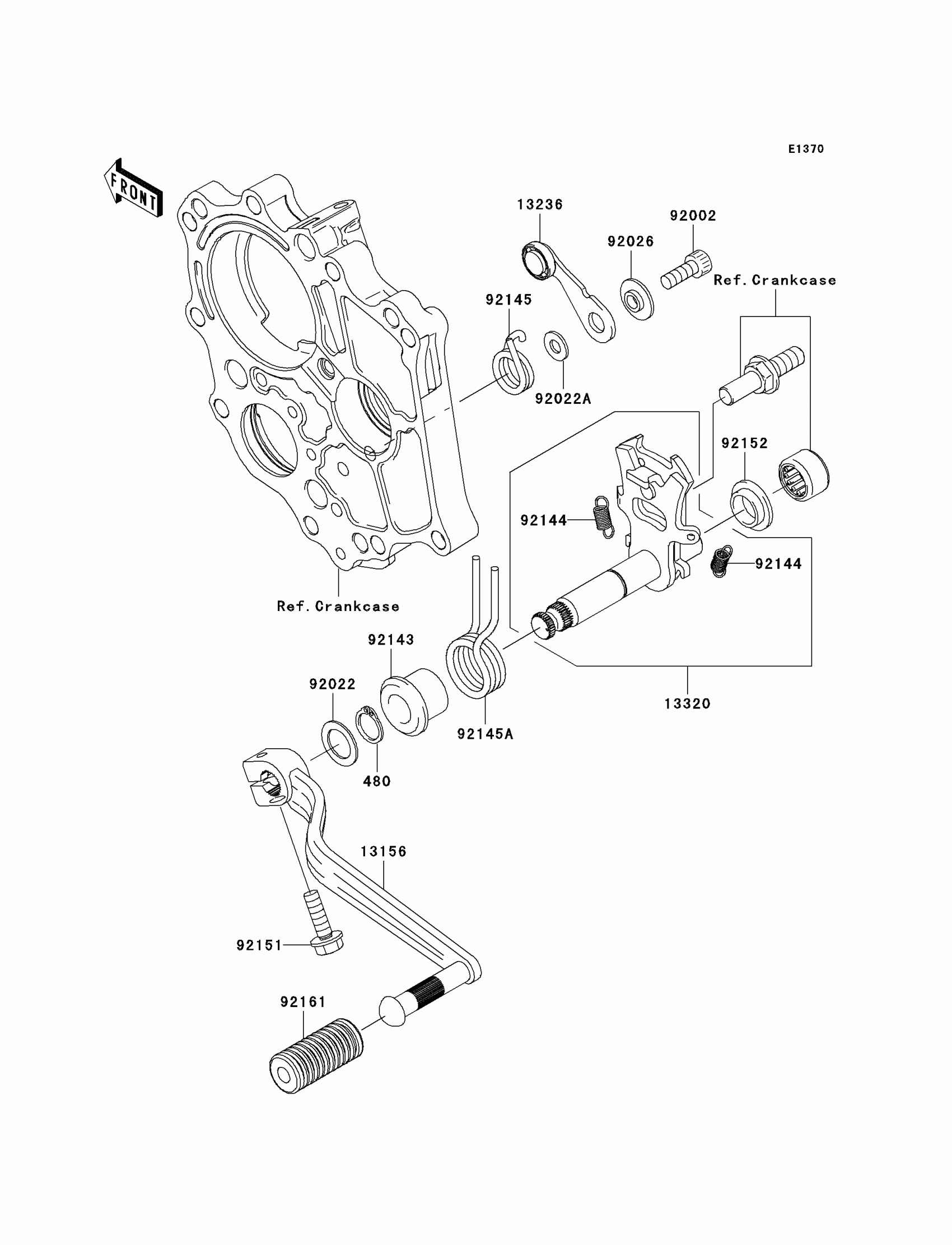

Kawasaki ER-6n (Australian) Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13156

LEVER-CHANGE,PEDAL

13156-0072

$54.06

13236

LEVER-COMP,POSITION

13236-0094

$9.59

13320

LEVER-ASSY

13320-0010

$70.44

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92143

COLLAR,RETURN SPRING

92143-1498

$10.65

92144

SPRING,CHANGE LEVER

92144-1975

$5.46

92145

SPRING,POSITION

92145-0304

$3.87

92145A

SPRING,RETURN

92145-0326

$6.02

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92152

COLLAR

92152-1075

$4.18

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18
