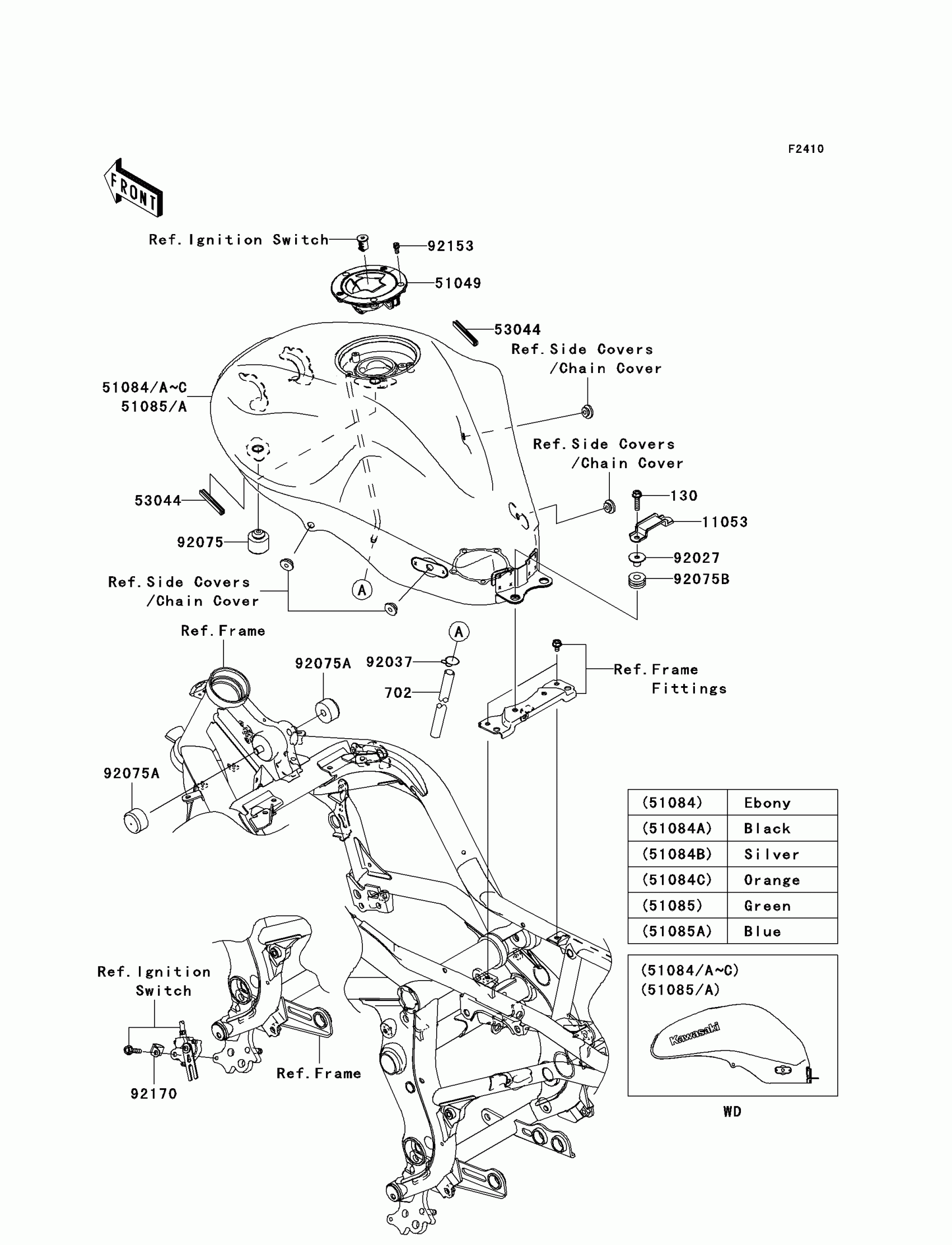

Kawasaki ER-6n (Australian) Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$2.80

702

TUBE-RUBBER,6X9X750

702A06750

$21.97

11053

BRACKET,SEAT

11053-1812

$6.36

51049

CAP-TANK,FUEL

51049-0012

Unavailable

51085

TANK-COMP-FUEL,C.L.GREEN

51085-5362-15P

$860.79

51085A

TANK-COMP-FUEL,C.P.BLUE

51085-5364-15D

$799.10

53044

TRIM,L=60

53044-1249

$6.57

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER

92075-1002

$6.22

92075A

DAMPER,FUEL TANK

92075-125

$6.22

92075B

DAMPER,10X24X12

92075-1690

$5.00

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92170

CLAMP

92170-1833

$6.42
