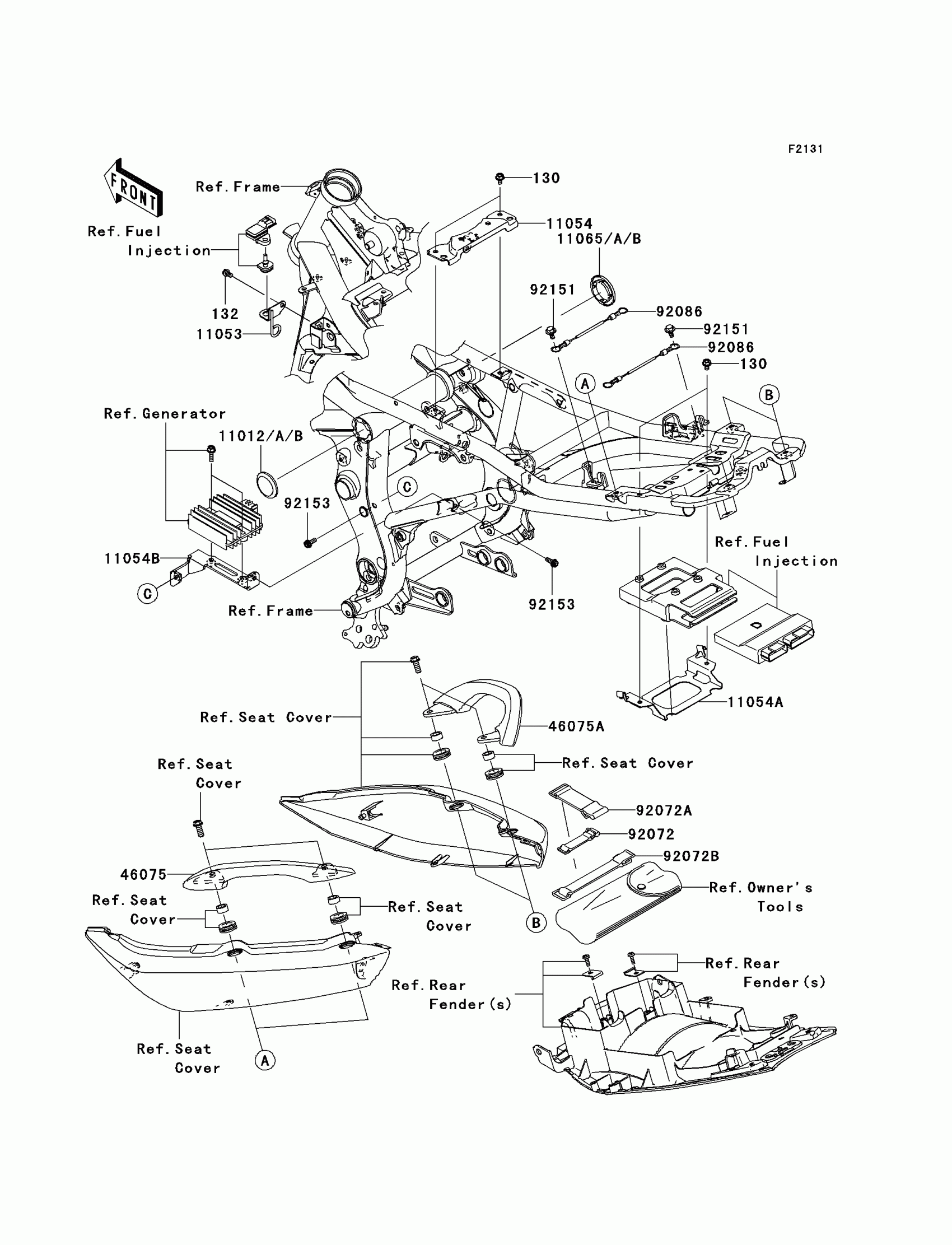

Kawasaki ER-6n (Australian) Frame Fittings(-JKAEREA1 7A035082) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130L0610

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132L0610

Unavailable

11012A

CAP,CROSS PIPE,P.RED

11012-1717-10N

$8.71

11012B

CAP,CROSS PIPE,F.S.BLACK

11012-1717-11J

$11.05

11053

BRACKET,BOOST SENSOR

11053-1931

$9.41

11054

BRACKET,FUEL TANK

11054-0248

$21.58

11054A

BRACKET,ECU

11054-0347

$16.05

11054B

BRACKET,REGULATOR

11054-0523

$30.89

11065A

CAP,FRAME,P.RED

11065-0125-10N

$8.71

11065B

CAP,FRAME,F.S.BLACK

11065-0125-11J

$8.71

46075

GRIP,LH

46075-0033

$100.89

46075A

GRIP,RH

46075-0034

Unavailable

92072

BAND

92072-1085

$13.69

92072A

BAND,TOOL

92072-1176

$11.84

92072B

BAND,L=150

92072-1203

$10.80

92086

WIRE,L=150

92086-1075

Unavailable

92151

BOLT,FLANGED,6X13

92151-1703

$3.01

92153

BOLT,SOCKET,6X16

92153-1517

$2.15
