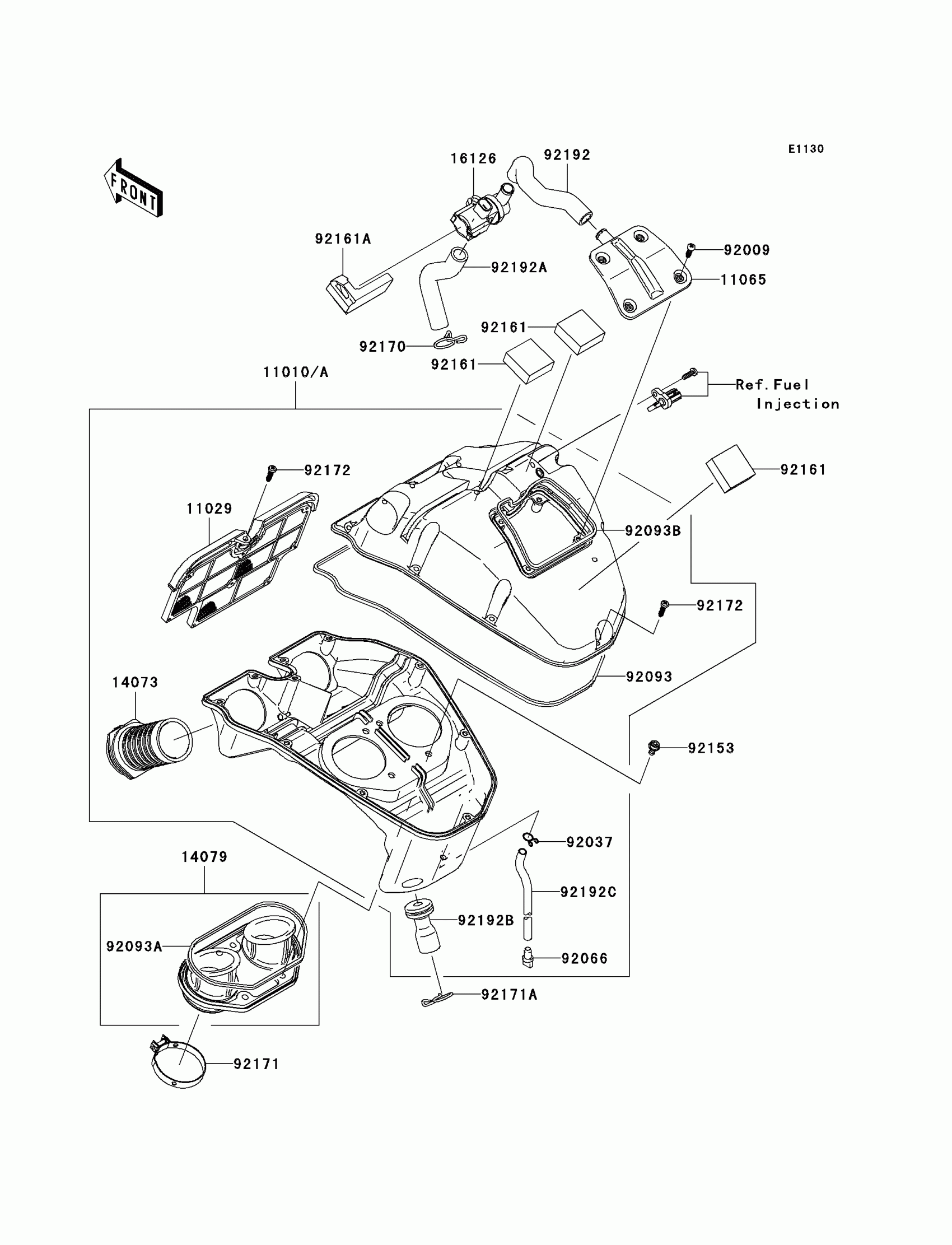

Kawasaki ER-6n (Australian) Air Cleaner Diagram

Description

Price

11010A

FILTER-ASSY-AIR

11010-0153

$313.21

11029

ELEMENT-ASSY-AIR FILTER

11029-0008

$54.11

11065

CAP,UPPER CASE

11065-0120

$26.45

14073

DUCT

14073-0110

$30.09

14079

HOLDER-ASSY

14079-0017

$63.81

16126

VALVE,AIR SWITING

16126-0019

$88.65

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92037

CLAMP,TUBE

92037-147

$7.34

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL,L=1080

92093-0045

$15.78

92093A

SEAL

92093-0046

$8.05

92093B

SEAL,L=368

92093-0048

$8.05

92153

BOLT,SOCKET,6X12

92153-0759

$2.14

92161

DAMPER,T=15

92161-0302

$4.09

92161A

DAMPER

92161-0309

$14.56

92170

CLAMP

92170-1017

$4.69

92171

CLAMP

92171-0314

$3.53

92171A

CLAMP

92171-0435

$3.86

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92192

TUBE,ASV-A/C

92192-0231

$12.39

92192A

TUBE,HEAD-ASV

92192-0232

$9.00

92192B

TUBE,BREATHER

92192-0264

$14.13

92192C

TUBE,DRAIN,6X9X280

92192-0325

$11.82
