Description

Price

11010

FILTER-ASSY-AIR

11010-0156

$357.02

11029

ELEMENT-ASSY-AIR FILTER

11029-0011

$54.22

11065

CAP,UPPER CASE

11065-0120

$26.45

14073

DUCT,INLET

14073-0210

$30.12

14079

HOLDER-ASSY

14079-0064

$58.07

14079A

HOLDER-ASSY

14079-0066

$58.07

16126

VALVE,AIR SWITING

16126-0019

$88.65

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92066

PLUG,DRAIN,8.5X15

92066-0127

$8.37

92093

SEAL

92093-0046

$8.05

92093A

SEAL,CAP

92093-0142

$7.88

92153

BOLT,SOCKET,6X12

92153-0759

$2.14

92161

DAMPER,T=15

92161-0302

$4.09

92161A

DAMPER

92161-0309

$14.56

92170

CLAMP

92170-1017

$4.69

92171

CLAMP

92171-0314

$3.53

92171A

CLAMP,DRAIN

92171-1584

$7.82

92172

SCREW,TAPPING,5X20

92172-0298

$2.95

92173

CLAMP,22X2

92173-0001

$3.46

92192

TUBE,HEAD-ASV

92192-0232

$9.00

92192A

TUBE,A/C-ASV

92192-0680

$12.10

92192B

TUBE,8X12X245

92192-0709

$11.76

92192C

TUBE,BREATHER

92192-0818

$13.69

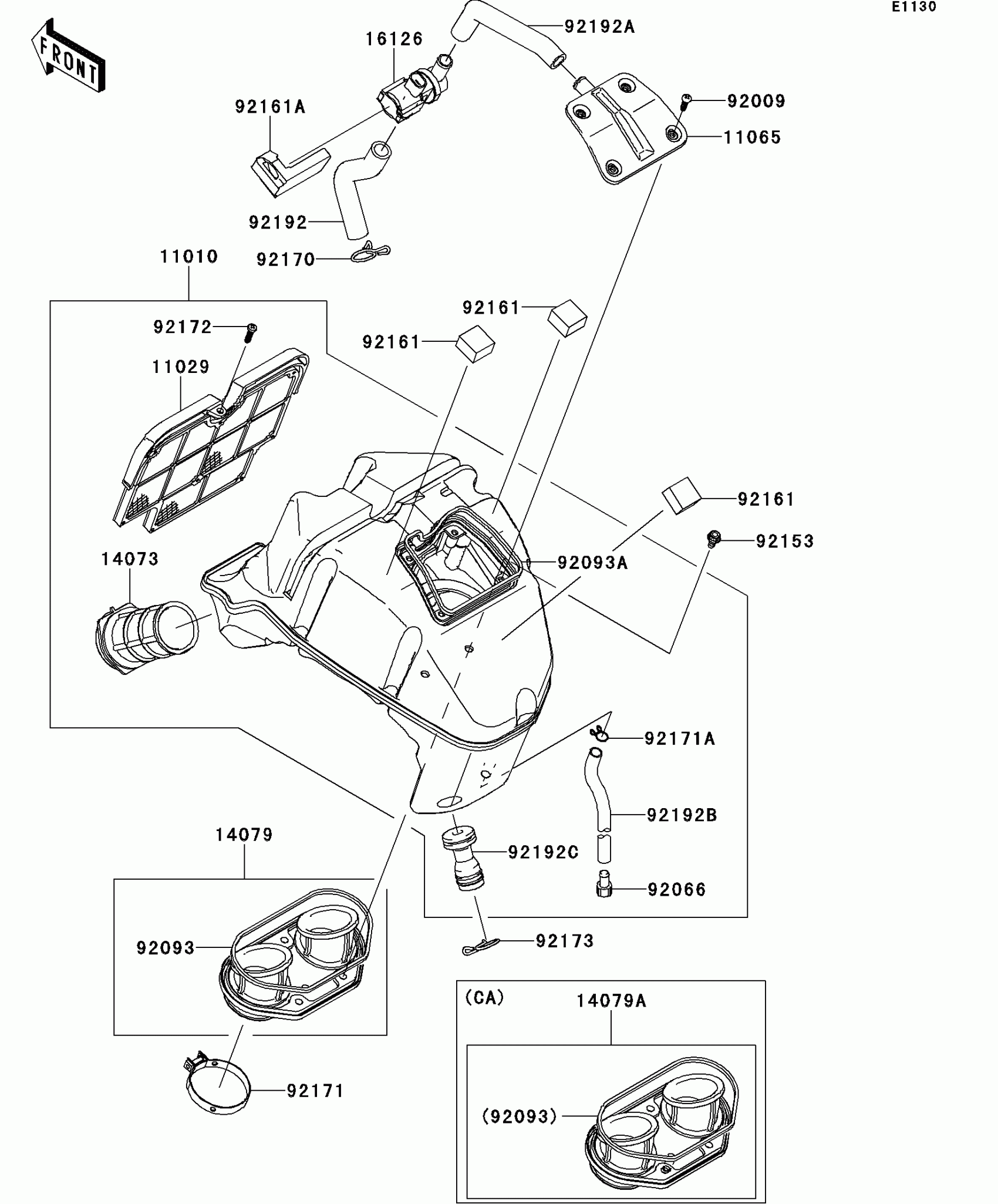

Kawasaki ER-6n Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-ASSY-AIR FILTER

CAP,UPPER CASE

DUCT,INLET

HOLDER-ASSY

HOLDER-ASSY

VALVE,AIR SWITING

SCREW,TAPPING,5X16

PLUG,DRAIN,8.5X15

SEAL

SEAL,CAP

BOLT,SOCKET,6X12

DAMPER,T=15

DAMPER

CLAMP

CLAMP

CLAMP,DRAIN

SCREW,TAPPING,5X20

CLAMP,22X2

TUBE,HEAD-ASV

TUBE,A/C-ASV

TUBE,8X12X245

TUBE,BREATHER
