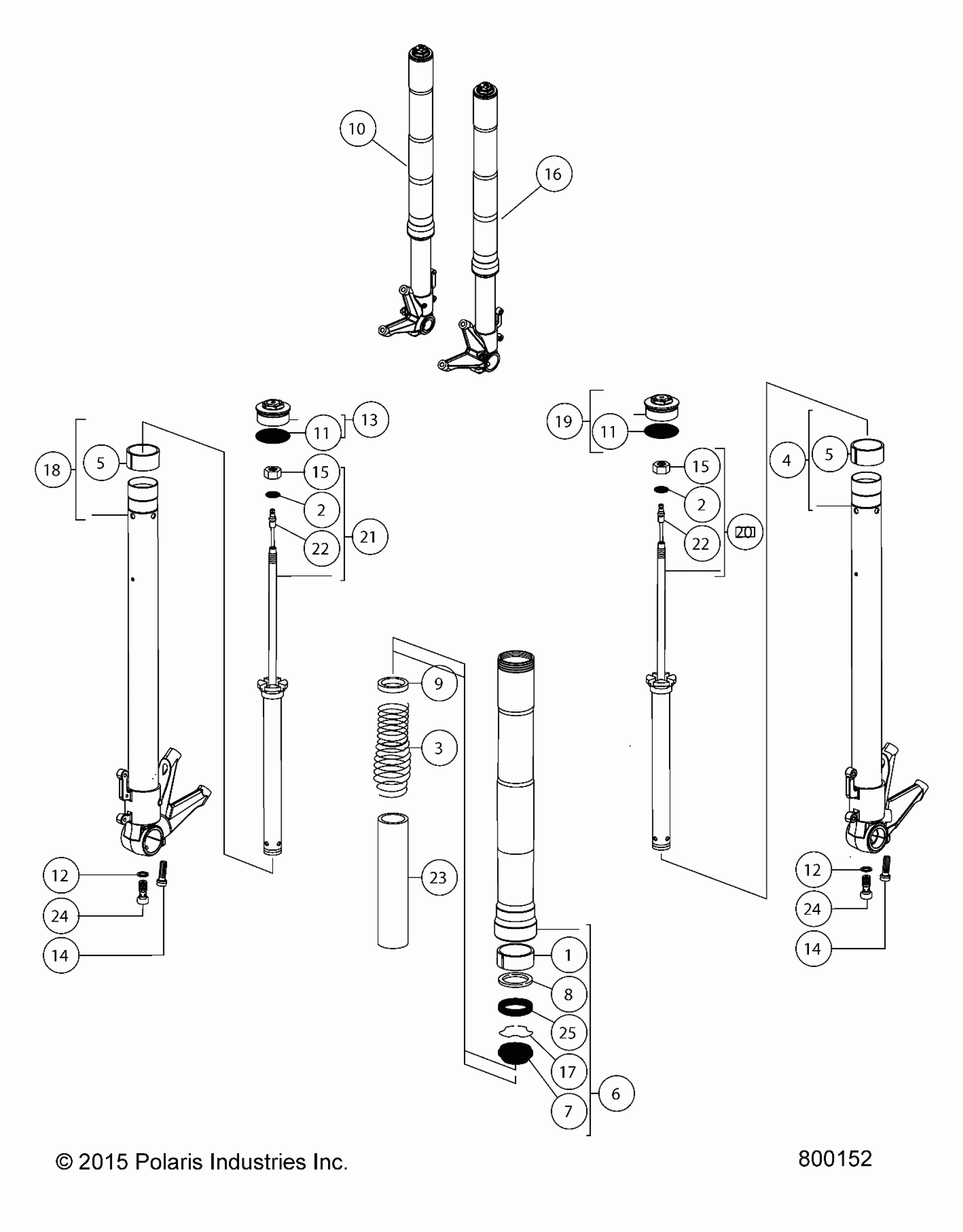

Polaris EMPULSE TT (R03) - V16EZBRRBB/CB SUSPENSION, FORK ASSEMBLY - V16EZBRRBB/CB (800152) Diagram

#

Description
Price

1

UPPER BUSH

----

Unavailable

2

O-RING

----

Unavailable

2

O-RING

----

Unavailable

3

MAIN SPRING K=9,00

----

Unavailable

4

LH DROP OUT+STANCHION+BUSHINGS

----

Unavailable

5

BUSHING 43MM STANCHION

----

Unavailable

5

BUSHING 43MM STANCHION

----

Unavailable

6

OUTER TUBE UNIT

----

Unavailable

7

Dust Seal

----

Unavailable

8

LOWER RETAINING CUP

----

Unavailable

9

RUBBER RACE

----

Unavailable

10

FORK, LEG, LH

1824459

$569.99

11

O RING 3162 (D40.95 S2.62)

----

Unavailable

11

O RING 3162 (D40.95 S2.62)

----

Unavailable

12

WASHER M10/01

----

Unavailable

12

WASHER M10/01

----

Unavailable

13

EXTENTION CAP UNIT

----

Unavailable

14

SCREW M 8X25 8.8 FE/ZN12C

----

Unavailable

14

SCREW M 8X25 8.8 FE/ZN12C

----

Unavailable

15

NUT M12X1.25

----

Unavailable

15

NUT M12X1.25

----

Unavailable

16

FORK, LEG, RH

1824460

$569.99

17

STOP RING

----

Unavailable

18

RH DROP OUT+STANCHION+BUSHINGS

----

Unavailable

19

COMPRESSION CAP UNIT

----

Unavailable

20

COMPRESSION CARTRIDGE

----

Unavailable

21

EXTENTION CARTRIDGE

----

Unavailable

22

INNER ROD

----

Unavailable

22

INNER ROD

----

Unavailable

23

PRELOAD SLEEVE 178 MM LONG

----

Unavailable

24

SCREW, M10X25 DN7984

----

Unavailable

24

SCREW, M10X25 DN7984

----

Unavailable

25

OIL SEAL DIA.43

----

Unavailable
