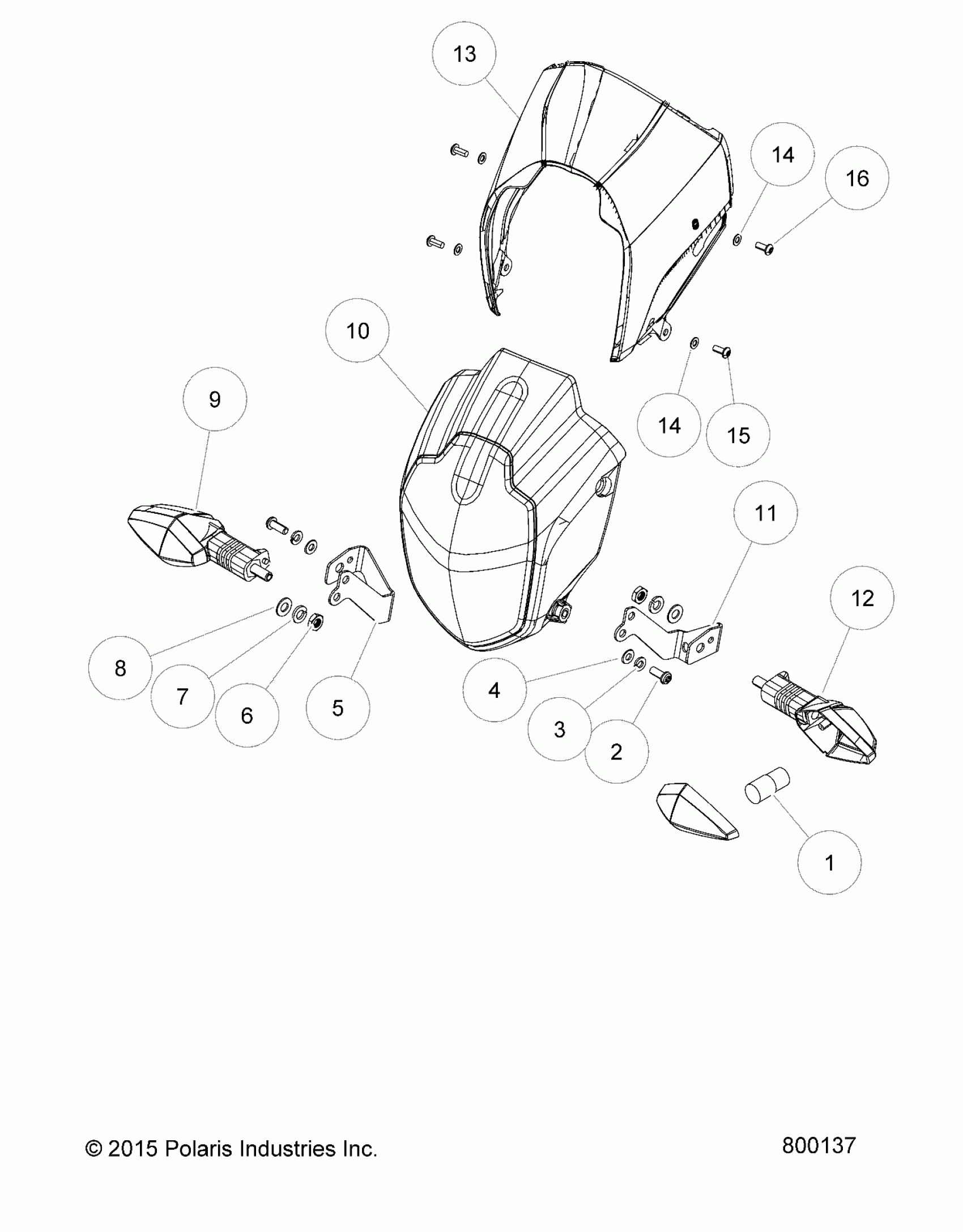

Polaris EMPULSE TT (R03) - V16EZBRRBB/CB ELECTRICAL, HEADLIGHT AND TURN SIGNALS - V16EZBRRBB/CB (800137) Diagram

#

Description
Price

1

Bulb, Single Filament, 10W

4010742

$10.63

2

SCREW TORX M6X1.0X16

B28311469

Unavailable

3

WASHER, M6, 8, ZC

B17350060

Unavailable

4

WASHER, FLAT M6

B75772929

Unavailable

5

BRKT, TURN, R

1021943

Unavailable

6

NUT M8X1

B77099352

Unavailable

7

WASHER LOCK M8

B93657159

Unavailable

8

WASHER FLAT M8

B75997901

$0.24

9

INDICATOR, RH, FRONT

2413322

Unavailable

10

BULB, H4, 60/55W

2870448

$24.99

10

BULB, EU MARKER

4012265

$4.83

10

HEADLAMP, EMP

2413328

$113.99

11

BRKT, TURN, LH

1021942

Unavailable

12

INDICATOR, LH, FRONT

2413325

Unavailable

13

SHROUD-HEADLAMP

5452735-676

Unavailable

14

WASHER, M5, NYL, BLK

B82097789

Unavailable

14

WASHER, M5, NYL, BLK

B82097789

Unavailable

15

SCREW, M5X0.8X12, BH, TORX, 8.8

B46906376

Unavailable

16

SCREW, M5X0.8X16, BH, TORX, 8.8

B60611698

Unavailable
