- EMPULSE TT (R03) - V16EZBRRBB/CB
COOLING SYSTEM - V16EZBRRBB/CB (800148)

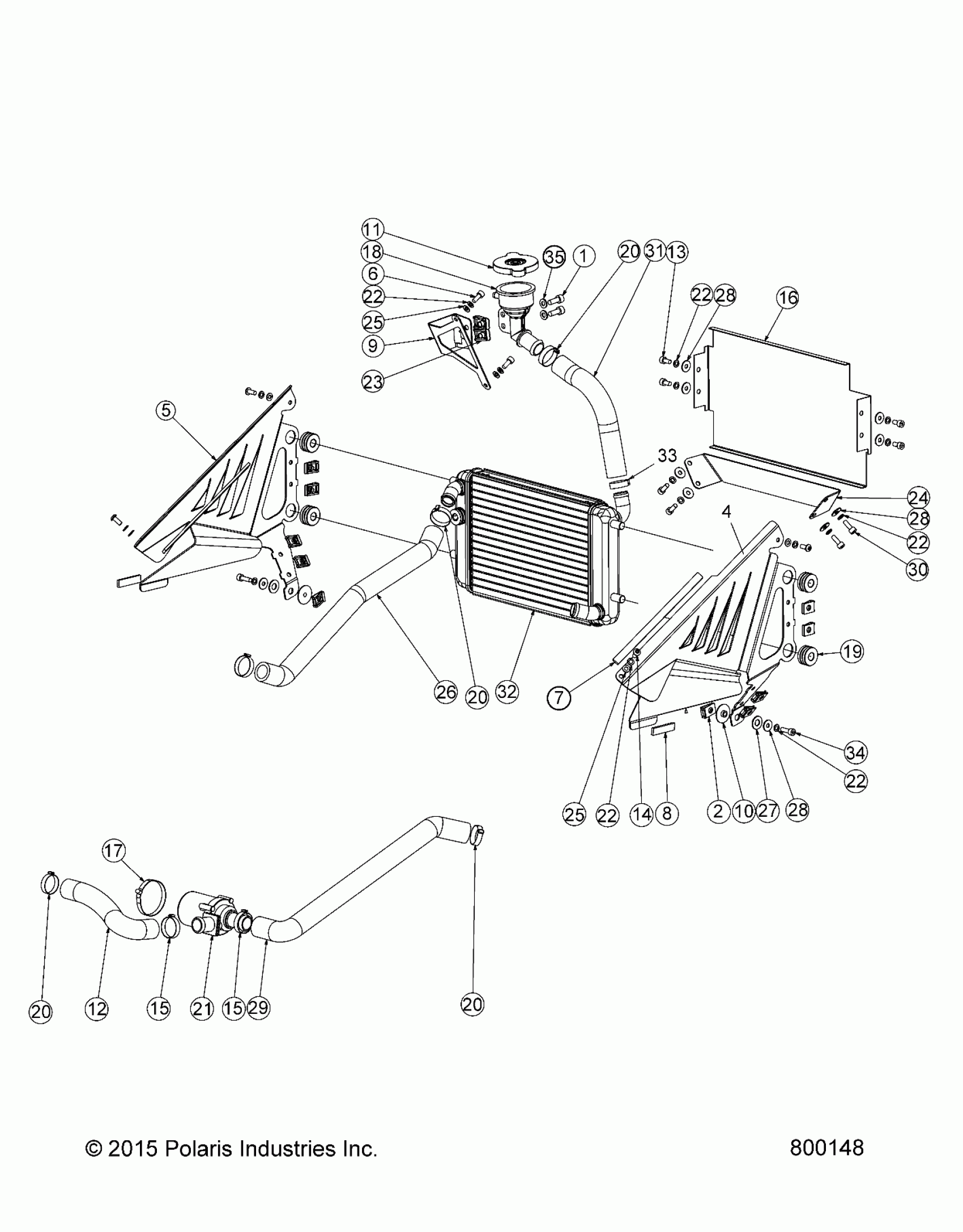

Polaris EMPULSE TT (R03) - V16EZBRRBB/CB COOLING SYSTEM - V16EZBRRBB/CB (800148) Diagram
#
1
M6X1X16, SH, 8.8, ZC
B13884089
Unavailable
2
M5X0.8, CLIP-ON NUT, ST
B15557605
Unavailable
4
BRKT, CONTROLLER, RIGHT
5261616
Unavailable
5
BRKT, CONTROLLER, LEFT
5261615
Unavailable
6
SCREW SKT HD M5X0.8X12
B23050035
Unavailable
7
GSKT, BATTERY, LWR
5522153
Unavailable
8
GSKT, LOWER, BODY
5522154
Unavailable
9
BRACKET, FILLER
1021951
Unavailable
10
ISOLATOR, CONTROLLER, HAT
5452771
Unavailable
11
CAP, RADIATOR, 4PSI
2521667
Unavailable
12
HOSE, COOLANT, MOTOR, REAR
5415724
Unavailable
13
M5X0.8X10, SH, 8.8, ZC
B44558179
Unavailable
14
M5X0.8X12, BH, TORX, 8.8
B46906376
Unavailable
15
CLAMP, HOSE, 27mm
7082146
Unavailable
15
CLAMP, HOSE, 27mm
7082146
Unavailable
16
SCREEN, RADIATOR
1021953
Unavailable
17
TIE, CBL, 0.27X13.4, BLK
B54490784
Unavailable
18
FILLER NECK, RADIATOR
5412402
$23.99
19
GROMMET, RADIATOR, EMP
5415748
Unavailable
20
CLAMP, HOSE, 25mm
7082155
Unavailable
20
CLAMP, HOSE, 25mm
7082155
Unavailable
20
CLAMP, HOSE, 25mm
7082155
Unavailable
20
CLAMP, HOSE, 25mm
7082155
Unavailable
21
PUMP, MES DEA MR2-30-1200 HT
2413370
Unavailable
22
M5, WL, 8, ZC
B64434248
Unavailable
22
M5, WL, 8, ZC
B64434248
Unavailable
22
M5, WL, 8, ZC
B64434248
Unavailable
22
M5, WL, 8, ZC
B64434248
Unavailable
22
M5, WL, 8, ZC
B64434248
Unavailable
23
M6X1.0, CLIP-ON, NUT, ST
B65952697
Unavailable
24
CLOSEOUT, RADIATOR, LOWER
5261855
Unavailable
25
M5, WS, 8, ZC
B75772929
Unavailable
25
M5, WS, 8, ZC
B75772929
Unavailable
26
HOSE, MOTOR, COOLING, LEFT
5415749
Unavailable
27
ISOLATOR, CONTROLLER, CAP
5522155
Unavailable
28
M5, WO, 8, ZC
B85275739
Unavailable
28
M5, WO, 8, ZC
B85275739
Unavailable
28
M5, WO, 8, ZC
B85275739
Unavailable
29
HOSE-RADIATOR TO PUMP
5415750
Unavailable
30
M5X0.8X14, SH, 8.8, ZC
B94434601
Unavailable
31
HOSE, FILLER, RADIATOR, ZINC
5415751
Unavailable
32
RADIATOR, WP, EMP
1241015
Unavailable
33
CLAMP, HOSE, 23mm
7082145
Unavailable
34
M5X0.8X16, SH, 8.8, ZC
B16994959
Unavailable
35
M6, WS, 8, ZC
B75772929
Unavailable
