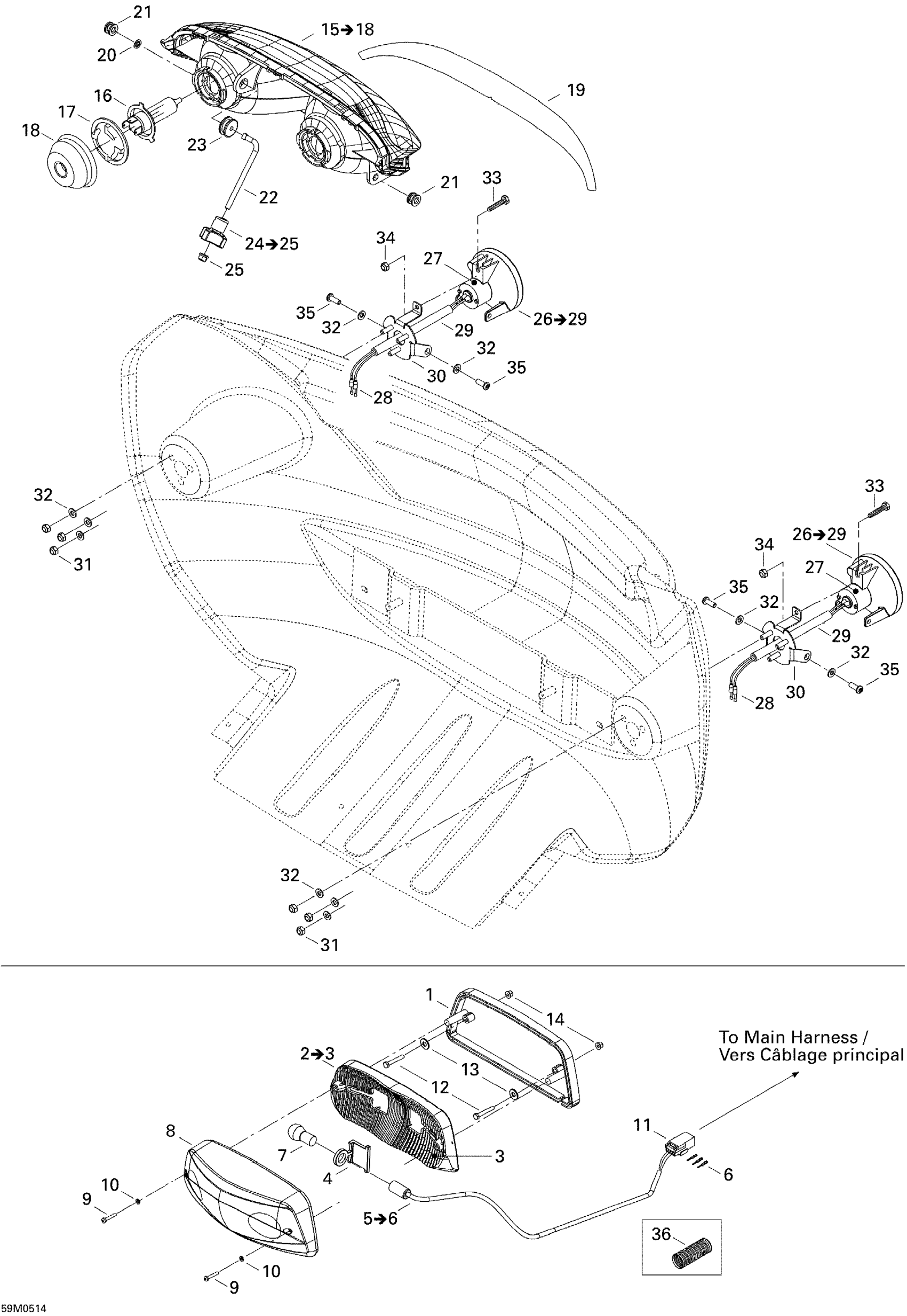

Ski-Doo Elite 1500 2nd Edition, 2004 Vehicle Lighting System Diagram

#

Description
Price

1

LAMP HOUSING - Call your local BRP dealership

515175397

$44.99

2

Rear Light Reflector | Includes items 2 to 3

515176128

Unavailable

3

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

4

BULB SUPPORT - Call your local BRP dealership

511000431

$8.77

5

Fitting Ass'y | Includes items 5 to 6

515176284

Unavailable

6

Male Terminal

515175232

$1.49

7

Bulb

520000758

$7.49

8

Lens

511000315

Unavailable

9

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

$4.17

10

Washer - Call your local BRP dealership

414516400

Unavailable

11

Male Housing, 3 Circuits

515175494

$15.35

12

Hex. Screw M5 X 30

207053044

$0.98

13

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

$1.18

14

Hex. Flange Elastic Nut M5

233251414

$1.66

15

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

17

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

18

COVER - Call your local BRP dealership

515175911

Unavailable

19

HEADLAMP DECAL - Call your local BRP dealership

516001328

$3.82

20

Push Nut

732610072

$1.72

21

HEADLAMP BUSHING - Call your local BRP dealership

515175760

$5.51

22

Adjuster Rod

515176022

Unavailable

23

Grommet - Call your local BRP dealership

415100800

$3.97

24

HANDLE - Call your local BRP dealership

515175975

$7.60

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Fog Light | Includes items 26 to 29

515176032

Unavailable

27

Halogen Light Bulb

415128844

Unavailable

28

Male Terminal

278000230

$3.48

29

Insulated Sheath

278001008

$3.20

30

Fog Light Support

515176046

Unavailable

31

Elastic Stop Nut M6

232561414

$1.55

32

Flat Washer 6 mm

234061410

$1.04

33

Hex. Screw M6 X 16

207161644

$0.61

34

Elastic Stop Nut M6

232561414

$1.55

35

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

$1.14

36

Tubing 6 Mm 3000Mm Long

219704425

$13.14
