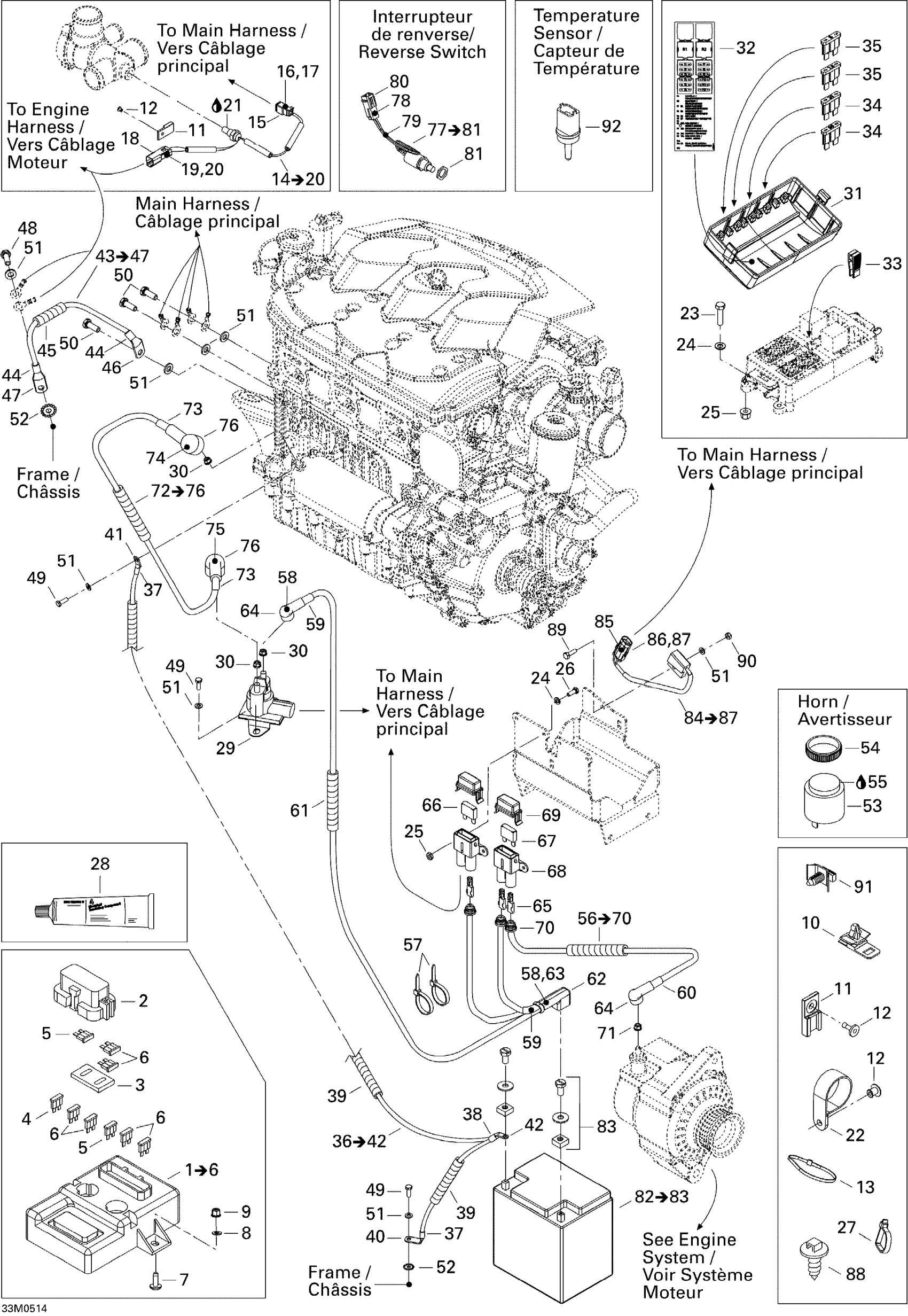

Ski-Doo Elite 1500 2nd Edition, 2004 10- Electrical System Diagram

#

Description
Price

1

Fuse Holder | Includes items 1 to 6

515175858

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Housing Support

515175283

$9.19

11

Clip

270000141

$11.49

12

Pop Rivet 3/16"

390402200

$0.35

13

Tie Wrap 368 mm

293750008

$1.04

14

Temperature Sensor | Includes items 14 to 20

515175974

Unavailable

15

Female Terminal Housing, 2 Circuits

515175670

$8.39

16

Female Terminal

278000632

$2.09

17

Female Lock, 2 Circuits

515175675

$4.55

18

Male Terminal Housing, 2 Circuits

515175665

$9.29

19

Male Terminal

278000631

$4.39

20

Male Lock, 2 Circuits

409207500

$3.19

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

Cable Clamp

515176113

Unavailable

22

Cable Clamp

515176154

Unavailable

22

Cable Clamp

515176174

Unavailable

23

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

24

Flat Washer M5

234051410

$0.53

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Tie-Rap 180 mm

414115200

$0.11

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Starter Relay

278003012

$42.49

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

COVER - Call your local BRP dealership

515176066

Unavailable

32

Fuse Decal

516002727

Unavailable

33

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

34

Fuse, 10 Amperes | North America

278001197

$2.21

35

Fuse, 20 Amperes

409003900

$3.28

36

Battery Ground Cable | Includes items 36 to 42

515175865

Unavailable

37

Was 710000483 Heat Shrink Tubing

219704447

$78.99

38

Shrink Tubing | XT Models

275500578

Unavailable

39

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

40

Open Barrel

710000508

Unavailable

41

Open Barrel

710000540

Unavailable

42

Open Barrel

710000539

Unavailable

43

Engine Cable Ground | Includes items 43 to 47

515175973

Unavailable

44

Was 710000483 Heat Shrink Tubing

219704447

$78.99

45

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

46

Flat Open Baril

710000507

Unavailable

47

Flat Terminal

710000515

Unavailable

48

Hex. Screw M6 X 20, Scotch Grip

207362044

Unavailable

49

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

50

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

51

Flat Washer 6 mm

234061410

$1.36

52

Lock Washer Serrated M6

250200041

$1.15

53

HORN - Call your local BRP dealership

515176035

Unavailable

54

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

55

Silicone Sealant 51388, 300 ml

296000309

$36.99

56

Battery Cable | Includes items 56 to 70

515175868

Unavailable

57

Tie Wrap 94 mm | 4X4

293750001

$1.03

58

Flat Open Barel 6.6 mm

710000479

Unavailable

59

Was 710000483 Heat Shrink Tubing

219704447

$78.99

60

Heat Shrink Tubing 25 mm

512059668

Unavailable

61

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

62

Protector Cap | STD Models

710001829

$9.95

63

Open Barrel | STD Models

710000518

$11.12

64

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

65

Female Terminal

515176106

Unavailable

66

Fuse 50 Amperes

515176107

Unavailable

67

Fuse 60 Amperes

515176108

Unavailable

68

Fuse Holder

515176105

Unavailable

69

Fuse Cover

515176109

Unavailable

70

Wire Seal

515176110

Unavailable

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Starter Cable | Includes items 72 to 76

515175972

Unavailable

73

Was 710000483 Heat Shrink Tubing

219704447

$78.99

74

Flat Open Baril

710000507

Unavailable

75

Flat Terminal

710000515

Unavailable

76

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

77

Switch Ass'y

515176472

$72.99

78

Male Terminal

515175232

$1.58

79

Tape

293740005

Unavailable

80

Male Terminal Housing, 2 Circuits

515175654

$9.12

81

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

82

Battery | Includes 900 to 900a

515176151

$219.99

83

Battery Bolt Kit

515176081

$6.99

84

T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16

278001547

Unavailable

85

Female Housing, 2 Circuits

278000217

$9.59

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Wire Seal

278000218

$4.39

88

Mount Dart

293730040

$1.04

89

Hex. Screw M6 X 25

207162544

$1.15

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

91

Self-Locking Clip

278001775

Unavailable

92

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable
