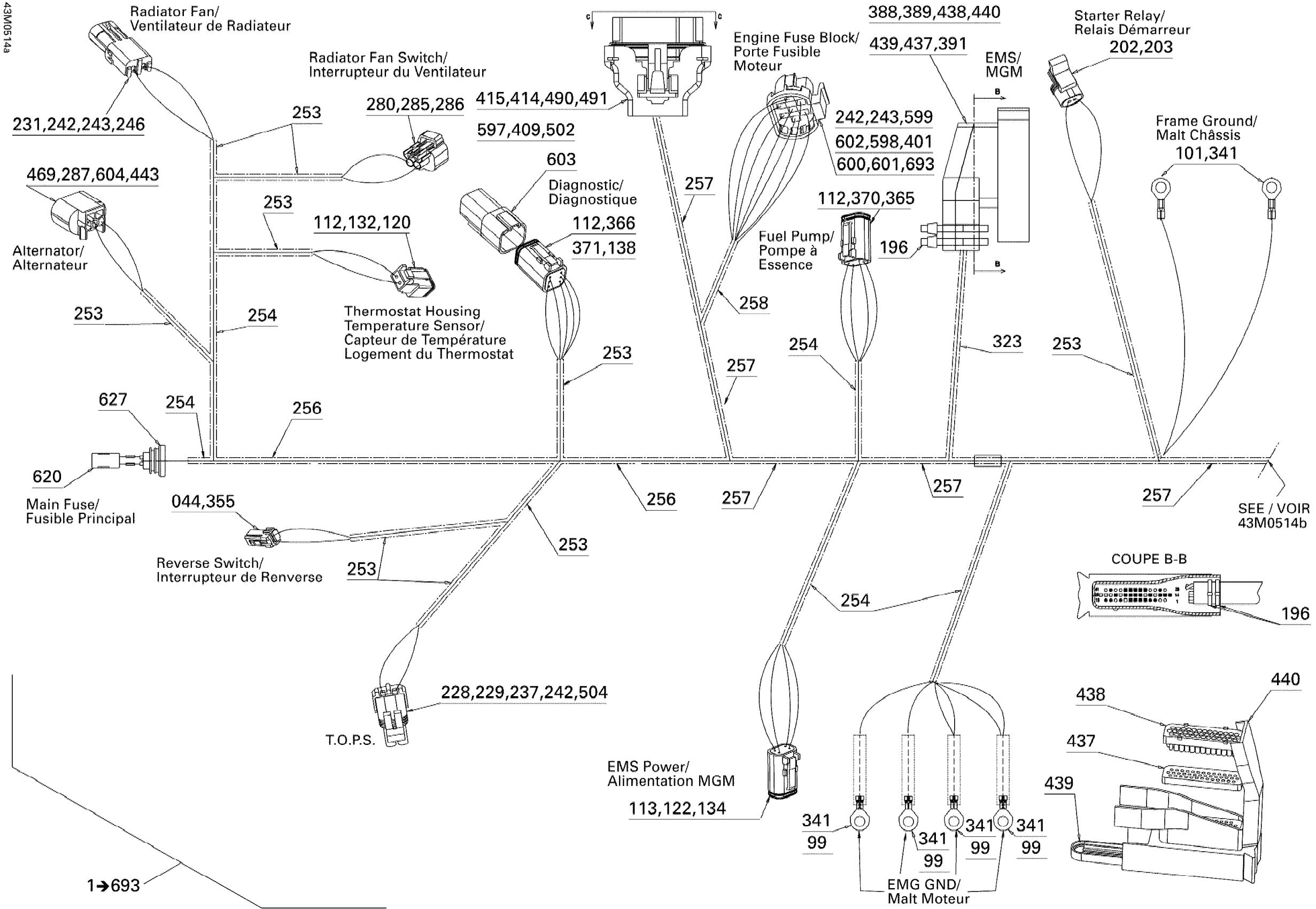

Ski-Doo Elite 1500 2nd Edition, 2004 Electrical Harness 1 Diagram

Main Harness | Includes items 1 to 693

515176266

Unavailable

Female Terminal

409010100

$5.30

Female Terminal Housing, 1 Circuit

409010400

$7.25

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

Female Terminal

515175231

$4.00

Female Terminal

515175282

$6.24

Female Housing, 3 Circuits

515175495

$14.90

Female Terminal | DS 650 X

278001009

$2.55

Open Barrel

278000992

$1.79

Open Barrel

409012500

Unavailable

Open Barrel Terminal

278001392

$4.00

Male Terminal

278000631

$4.00

Male Terminal

515175823

$4.28

Female Terminal

278000632

$1.69

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

Male Housing, 2 Circuits

409206900

$8.72

Male Connector, 12 Circuits

409015800

Unavailable

Female Connector, 2 Circuits

409207300

$9.31

Male Connector, 4 Circuits | CE

278000739

$14.92

Male Lock, 2 Circuits

409207500

$2.93

Male Lock, 3 Circuits

409207600

$2.93

Female Lock, 6 Circuits

278000735

$2.93

Not Available As Spare Part - Friction Washer

Unavailable

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

Male Lock, 4 Circuits | CE

278000738

$2.82

Sealing Cap

293000052

$2.55

Female Terminal

561503100

Unavailable

Fuse, 20 Amperes

409003900

$3.12

Fuse, 10 Amperes | North America

278001197

$1.79

Fuse, 10 Amperes | North America

278001197

$1.79

Tie Wrap 142 mm

293750002

$0.88

Female Terminal

278001114

$2.55

Male Connector, 2 Circuits

278001113

$12.65

Female Terminal

409003600

Unavailable

Female Terminal

409004200

$4.28

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

Male Terminal | XT Models

278000222

$2.55

Female Terminal

409007300

$0.36

Female Terminal

278000223

$2.55

Female Housing, 2 Circuits

278000217

$7.59

Male Connector, 2 Circuits

278000220

$11.02

Wire Seal

278000218

$3.48

Wire Seal

710000048

$5.10

Male Terminal

409004300

$5.30

Tubing 6 Mm 3000Mm Long

219704425

$12.75

Was 409901700 Tubing (9 mm)

219704399

$77.58

Was 409901800 Tubing (13 mm)

219704400

$9.40

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Was 409901600 Tubing 19mm

219704398

$87.28

Tubing 10 MM 1000MM Long

219704407

$2.20

Was 515175319 Tubing 22 mm

219704423

$11.84

Female Terminal

409012100

$3.73

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

Seal

409012300

$4.25

Cap

710000080

$6.28

Insulated Sheath

278001007

$3.12

Fuse, 15 Amperes

278000343

$2.72

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

Female Terminal Housing, 6 Circuits

515175543

$8.31

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

Male Terminal

515175568

$7.25

Low Temperatue Tubing

515175580

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

Female Housing, 2 Circuits

515175658

$14.90

Male Housing

515175666

$12.66

Male Terminal Housing, 6 Circuits

515175668

$13.60

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

Male Housing, 6 Circuits

515175673

$12.66

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

Male Wedge, 6 Circuits

515175678

$4.96

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

Female Terminal

278001752

Unavailable

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

Plug

515175812

$1.70

Female Housing, 24 Circuits

515175801

$8.73

Retainer Block

515175802

$10.34

Wire Seal

515175803

$2.41

BLOCK - Call your local BRP dealership

515175804

Unavailable

LOCK - Call your local BRP dealership

515175805

Unavailable

Female Terminal

515175806

$0.81

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

SEAL - Call your local BRP dealership

515175886

Unavailable

Latch

515175883

$7.25

LOCK - Call your local BRP dealership

515175884

Unavailable

COVER - Call your local BRP dealership

515175885

Unavailable

Relais *Relay This part replaces 410113604.

515177672

$37.67

Female Terminal

710000335

$1.75

Fuse, 0.5 Ampere

415128525

Unavailable

Tie-Rap 180 mm

414115200

$0.09

SEAL - Call your local BRP dealership

515175979

Unavailable

SEAL WIRE - Call your local BRP dealership

710000394

Unavailable

FEMALE HOUSING - Call your local BRP dealership

710000395

Unavailable

Female Housing 32 Pins

710000396

Unavailable

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

HOUSING - Call your local BRP dealership

710000413

Unavailable

Wire Seal

278001065

$5.85

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

Terminal Retainer

515176055

Unavailable

Female Housing

515176051

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515176053

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515176052

Unavailable

Latch

515176056

Unavailable

Lock

515176057

Unavailable

Diagnostic Connector

278002704

$15.57

Female Housing

515176054

Unavailable

Female Terminal

515176106

Unavailable

Female Terminal

710000221

Unavailable

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

Wire Seal

515176110

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278002031

Unavailable
