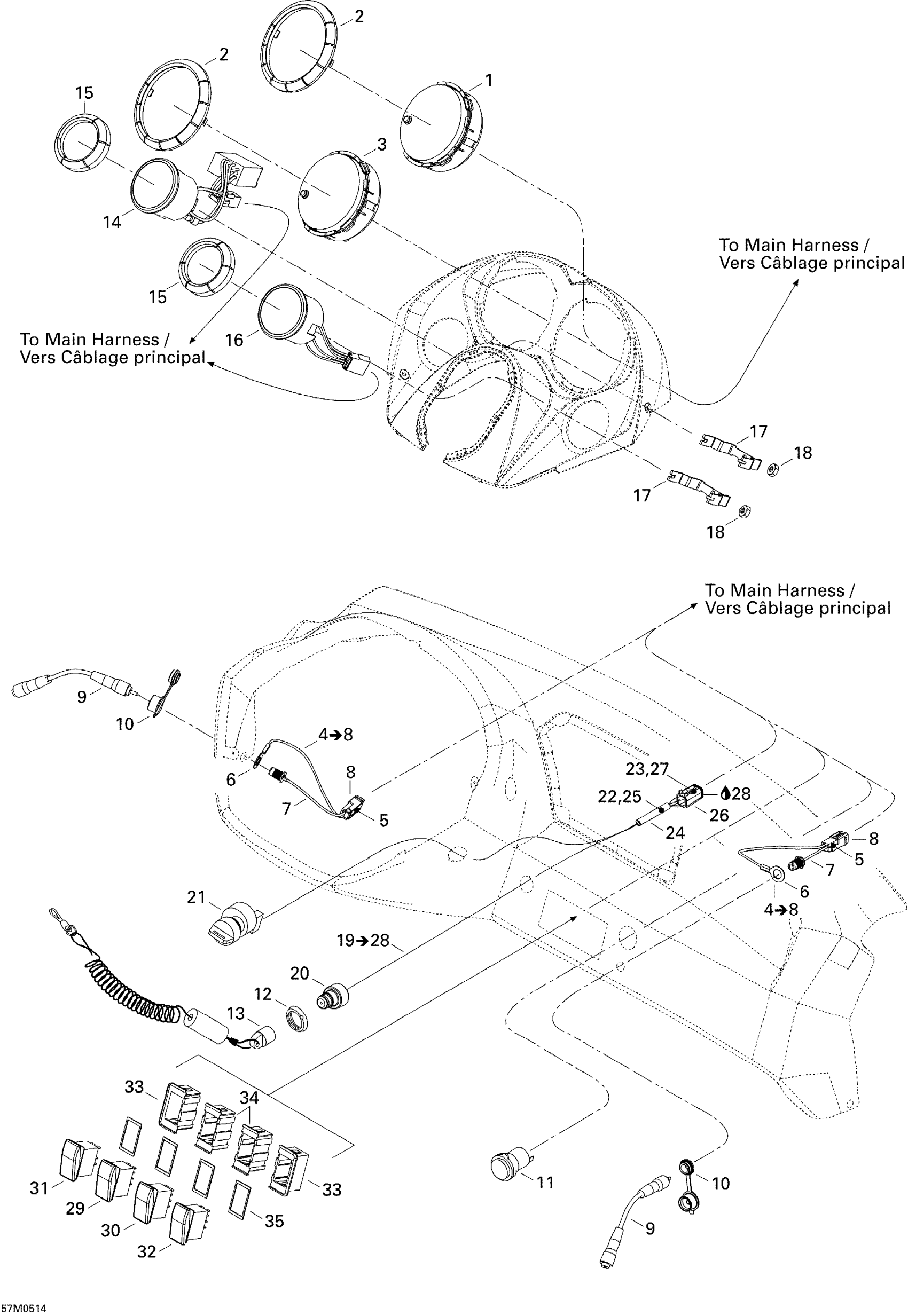

Ski-Doo Elite 1500 2nd Edition, 2004 10- Electrical Accessories, Console Diagram

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

Gauge Ring This part replaces 515176242.

515179005

$13.99

Tachometer

515176275

Unavailable

Visor Plug Harness | Includes items 17 to 22

515175964

Unavailable

Male Terminal

515175232

$1.58

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

Tape

293740005

Unavailable

Male Terminal Housing, 2 Circuits

515175654

$9.12

EXTENSION - Call your local BRP dealership

515175971

Unavailable

Cap

572103300

$10.49

Outlet Power Kit, 12 Volts

861507200

$36.99

Safety Nut (DESS Switch)

278002963

$3.28

DESS

515178284

$84.99

Temperature Gauge

515176214

Unavailable

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

Starter Switch Ass'y | Includes items 27 to 35

515176089

Unavailable

Anti-Theft Post

515176126

Unavailable

Starter Switch

515176127

Unavailable

Male Terminal

278000230

$4.39

Sealing Cap

293000052

$3.19

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

Insulated Sheath

278001008

$3.28

Male Housing, 6 Circuits

515175673

$15.49

Male Wedge, 6 Circuits

515175678

$5.39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Grip Switch

515175945

Unavailable

Heating Thumb Switch

515175946

Unavailable

Light Switch

515175951

Unavailable

Grip Switch

515175862

Unavailable

Switch Housing

515176098

Unavailable

Switch Housing

515176099

Unavailable

Gasket

204470132

Unavailable
