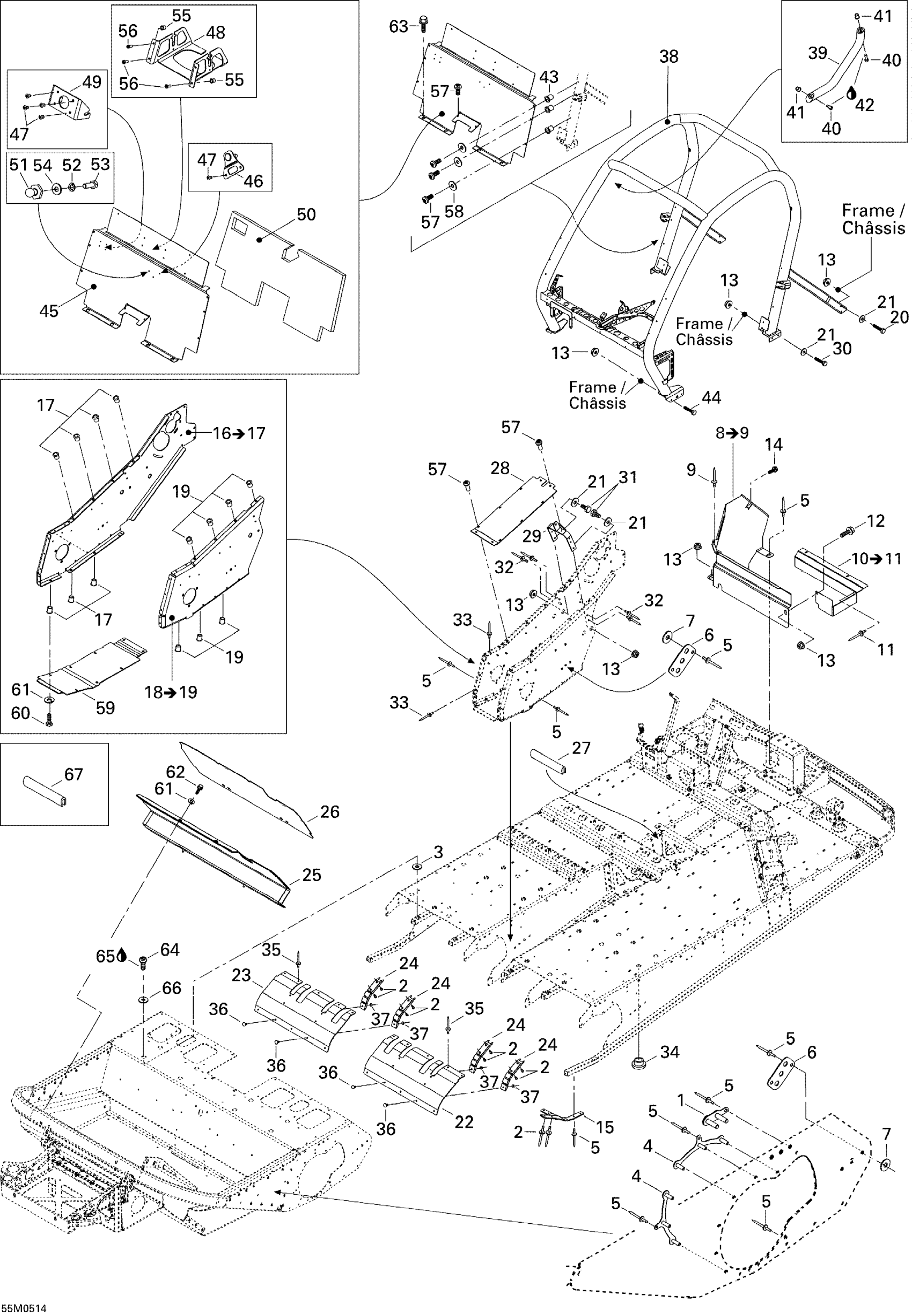

Ski-Doo Elite 1500 2nd Edition, 2004 09- Frame and Components Diagram

#

Description
Price

1

Support

518323837

Unavailable

2

Pop Rivet 3/16"

390402300

$0.75

3

Washer

503189273

$3.28

4

Spacer

518323673

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Heat Deflector | Includes 8 To 9

518324277

Unavailable

9

Pop Rivet 3/16"

390402400

$0.35

10

Deflector | Includes 10 To 11

514053939

Unavailable

11

Pop Rivet 3/16"

390402400

$0.35

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

15

Junction Plate RH

518323783

Unavailable

15

Junction Plate LH

518323784

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Insert

293450275

$12.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Insert

293450275

$12.99

20

Hex. Flange Screw M8 X 45

207684544

$3.80

21

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

22

RH Deflector

518324684

Unavailable

23

LH Deflector

518324685

Unavailable

24

Protector

518324720

Unavailable

25

Footrest

518323941

Unavailable

26

Footrest Carpet

518324270

Unavailable

27

Black Trim

517303385

Unavailable

28

Belt Guard

518324128

Unavailable

29

Belt Support

518323795

Unavailable

30

Hex. Flange Screw M8 X 25

207682544

$1.35

31

Hex. Screw M8 X 30

207183044

$1.15

32

Hemlock Rivet 6.5 mm

293150120

$7.41

33

Rivet 3/16"

293150126

Unavailable

34

Plastic Cap

518323977

Unavailable

35

Rivet 3/16"

293150102

$0.70

36

Pop Rivet 3/16”

293150108

$1.19

37

Flat Washer

517225900

$0.18

38

Upper Frame

518323668

Unavailable

39

Handle

518324227

Unavailable

40

Socket Head Screw M6 X 20

205062044

$1.26

41

Insert

293450275

$12.99

42

Loctite 243, 10 ml

293800060

$21.49

43

Insert

293450275

$12.99

44

Hex. Flange Screw M8 X 50

207685044

$1.69

45

Lateral Reinforcement

518324023

Unavailable

46

Welded Plate

518323685

Unavailable

47

Rivet 3/16"

293150102

$0.70

48

Coolant Tank Support

518323700

Unavailable

49

Front Belt Guard Support

518323661

Unavailable

50

Isolating Foam

518323852

Unavailable

51

Knob

517245800

$11.12

52

Lock Washer 5 mm | Europe

234151401

$0.55

53

Hex. Screw M5 X 14

207151444

$0.87

54

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

55

Insert

293450275

$12.99

56

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

57

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

58

Washer M6

250200029

$2.50

59

Center Junction Plate

518322981

Unavailable

60

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

61

Lock Washer M6, Black

234161471

$0.53

62

Hex. Flange Screw M6 X 16

207661644

$0.74

63

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

64

Socket Screw M8 X 10

205481046

Unavailable

65

Loctite 271, 10 ml

293800005

$26.99

66

Flat Washer 8 mm, Stainless

234082600

$2.43

67

Black Trim

517303385

Unavailable
