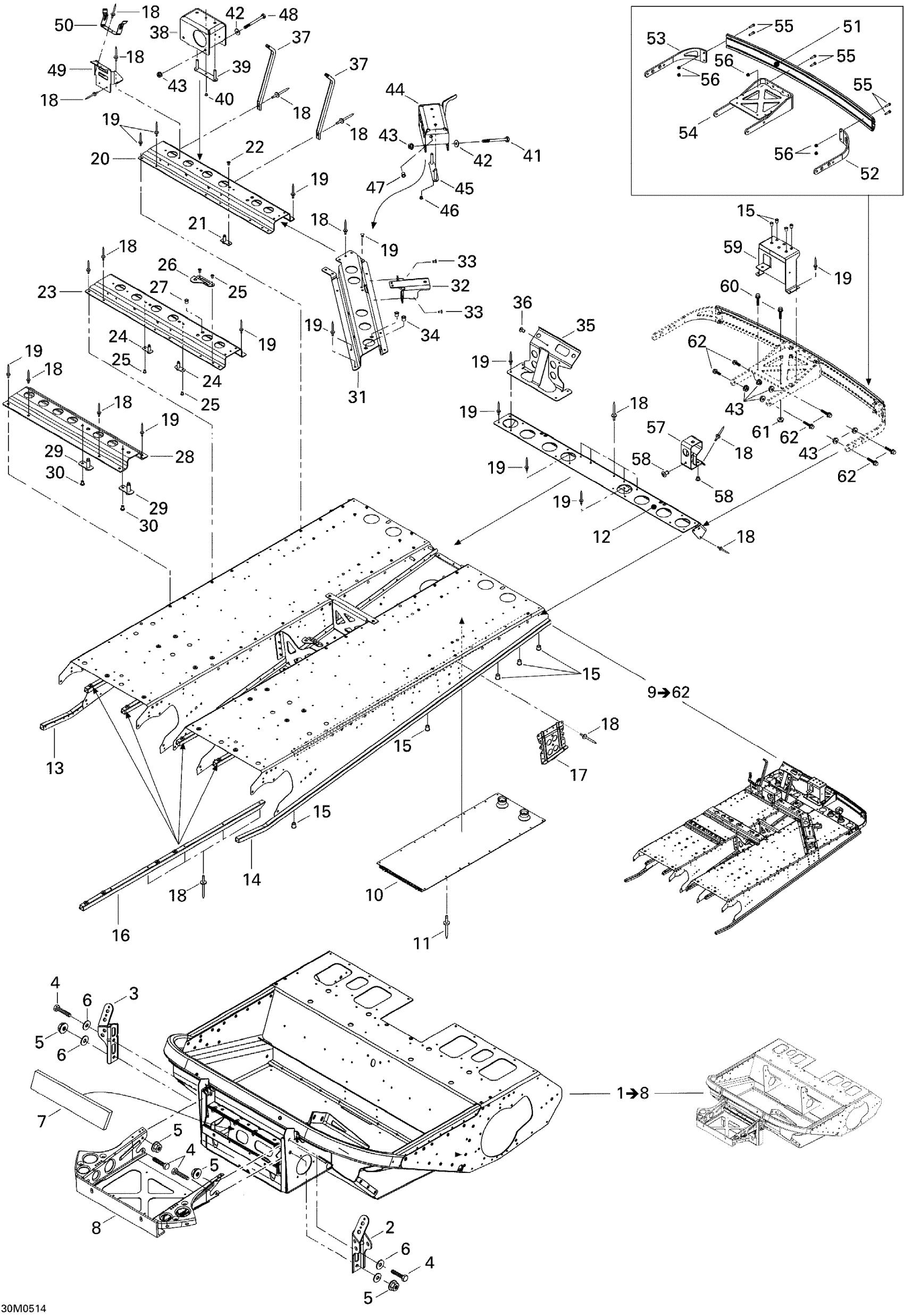

Ski-Doo Elite 1500 2nd Edition, 2004 09- Frame Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Shock Bracket LH
518323072
Unavailable
3
Shock Bracket RH
518323071
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Front Bumper Attachment
518323839
Unavailable
9
Forming Frame Ass'y | Includes 9 to 62
518324666
Unavailable
10
Rear Radiator Ass'y
518324722
Unavailable
12
Rear Cap
518322984
Unavailable
13
Tunnel Reinforcement RH
518323076
Unavailable
14
Tunnel Reinforcement LH
518323077
Unavailable
16
Tunnel Protector
518323866
Unavailable
17
Rear Bracket RH
518323109
Unavailable
17
Rear Bracket LH
518323111
Unavailable
20
Frame Tunnel Rear Member
518323116
Unavailable
21
Seat Bracket
518323321
Unavailable
23
Frame Tunnel Rear Member
518323116
Unavailable
24
Seat Bracket
518323321
Unavailable
26
Welded Plate
518323680
Unavailable
28
Frame Tunnel Front Member
518323641
Unavailable
29
Seat Bracket
518323321
Unavailable
31
Frame Tunnel Angle Member
518323562
Unavailable
32
Exhaust Support
518323702
Unavailable
35
Radiator Lower Support
518323859
Unavailable
37
Radiator Upper Support
518323864
Unavailable
38
Engine Support RH
518323287
Unavailable
39
Fixation Plate
518323288
Unavailable
44
Engine Support LH
518323305
Unavailable
45
Fixation Plate
518323288
Unavailable
48
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
49
Belt Guard Rear Support
518323662
Unavailable
51
Rear Bumper
518323118
Unavailable
52
Plate Bracket LH
518323119
Unavailable
53
Plate Bracket RH
518323496
Unavailable
54
Center Bracket
518324342
Unavailable
55
Hex. Screw M6 X 25
207162548
Unavailable
57
Muffler Support LH
518323872
Unavailable
59
Muffler Support
518324343
Unavailable
