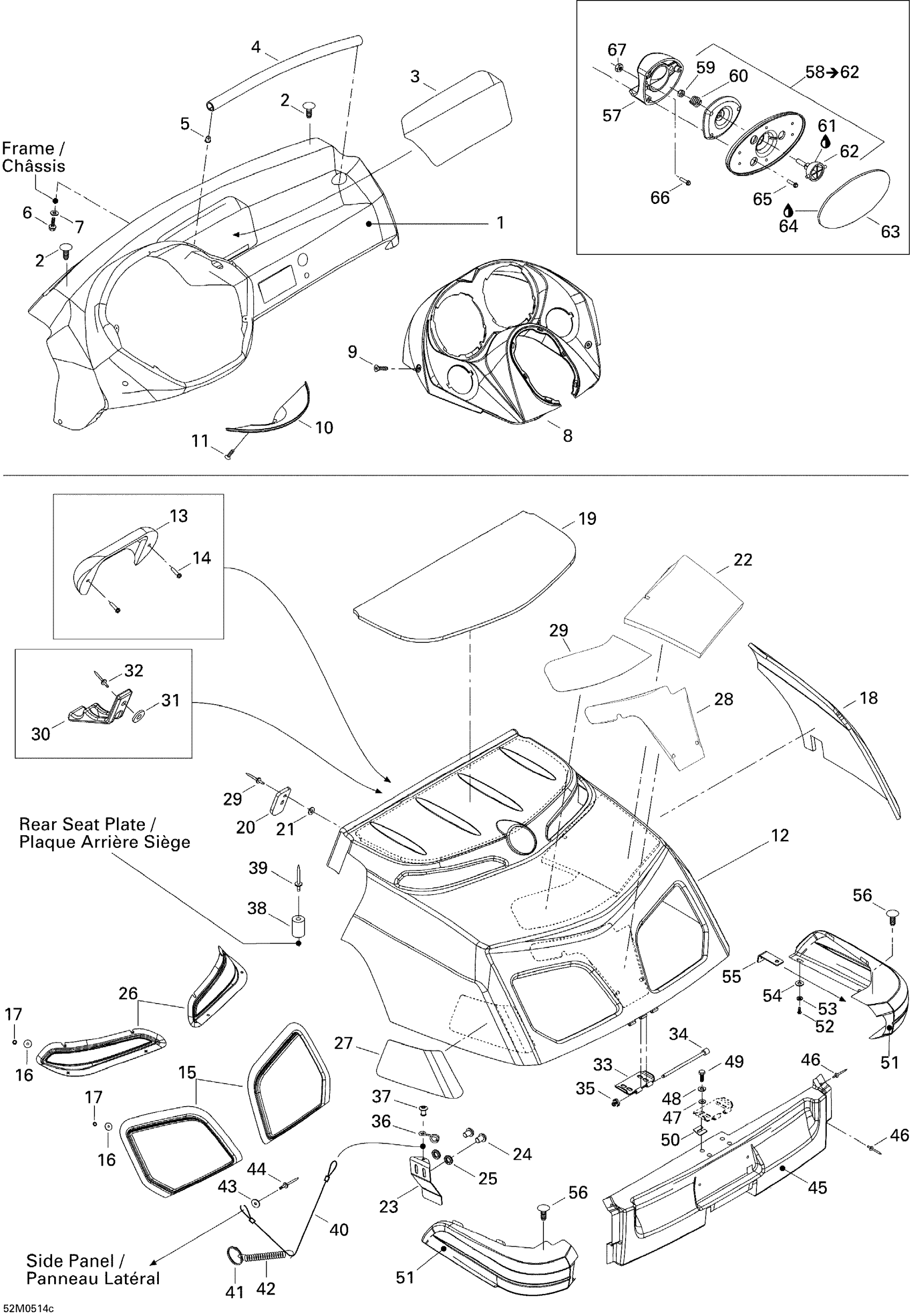

Ski-Doo Elite 1500 2nd Edition, 2004 09- Body, Elite 3 Diagram

#

Description
Price

1

Dash

517302882

Unavailable

2

GRAY DART - Call your local BRP dealership

517303276

Unavailable

3

Access Door, Headlamp

517302884

Unavailable

4

Handle Grip

517303226

Unavailable

5

Insert

293450275

$12.99

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Flat Washer 6 mm

234062410

$0.77

8

Indicator Support

517303480

Unavailable

9

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable

10

Lower Dash Cover

517303146

Unavailable

11

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

12

Engine Hood

517302909

Unavailable

13

Handle

517303116

Unavailable

14

Hex. Flange Screw K40 X 16

241141660

$1.48

15

RH Rear Grille

517303058

Unavailable

15

LH Rear Grille

517303059

Unavailable

16

Washer M6

250200029

$2.50

17

Locking Nut

250100020

Unavailable

18

Side Foam

517303267

Unavailable

19

Upper Foam

517302914

Unavailable

20

Upper Guide LH

517303269

Unavailable

20

Upper Guide RH

517303300

Unavailable

21

Flat Washer

517225900

$0.18

22

Foam

517303479

Unavailable

23

Hood Guide

517303478

Unavailable

24

Socket Screw M6 X 8

205460860

$0.52

25

Lock Washer Helical M6

234161601

$1.15

26

RH Upper Grille

517303060

Unavailable

26

LH Upper Grille

517303061

Unavailable

27

Reflective Sheet

514054036

Unavailable

28

Reflective Sheet

514054037

Unavailable

29

Reflective Sheet

514054038

Unavailable

30

Hood Latch

570027100

$13.49

31

Flat Washer 5 mm, Stainless

234052400

$2.85

32

Pop Rivet 3/16”

293150108

$1.19

33

Lower Half Hinge

517303129

Unavailable

34

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

35

Cotter Pin M2.5 X 12

204070205

Unavailable

36

Bracket

517262800

Unavailable

37

Pop Rivet 3/16"

390402200

$0.35

38

Rubber Stopper

293830043

Unavailable

39

Pop Rivet 3/16"

390402300

$0.75

40

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

41

RING - Call your local BRP dealership

415058300

Unavailable

42

Spring

415043300

Unavailable

43

Flat Washer 5 mm, Stainless

234052400

$2.85

44

Pop Rivet 3/16"

390402300

$0.75

45

Rear Cap

517302918

Unavailable

46

RIVET - Call your local BRP dealership

293150065

Unavailable

47

Washer

224060251

$0.58

48

Lock Washer Helical M6

234161601

$1.15

49

Hex. Screw M6 X 30

207063044

$1.26

50

Spacer

517303432

Unavailable

51

Bumper Corner RH

517302919

Unavailable

51

Bumper Corner LH

517302920

Unavailable

52

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

53

Lock Washer Helical M6

234161601

$1.15

54

Flat Washer M6, Stainless

234062600

$0.77

55

Corner Support

517303318

Unavailable

56

GRAY DART - Call your local BRP dealership

517303276

Unavailable

57

Mirror Adapter

517303217

Unavailable

58

Mirror Frame Ass'y | Includes 55 to 59

517303245

Unavailable

59

Hex. Elastic Stop Nut M6

232561600

$1.15

60

Mirror Spring

269500453

$10.49

61

Synthetic Grease, 400 G

293550010

Unavailable

62

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

63

MIRROR - Call your local BRP dealership

269500454

Unavailable

64

Silicone Sealant 51388, 300 ml

296000309

$36.99

65

Hex. Flange Screw K40 X 16

241141660

$1.48

66

Socket Screw M5 X 16

205451646

Unavailable

67

Hex. Flange Elastic Nut M5

233251414

$1.04
