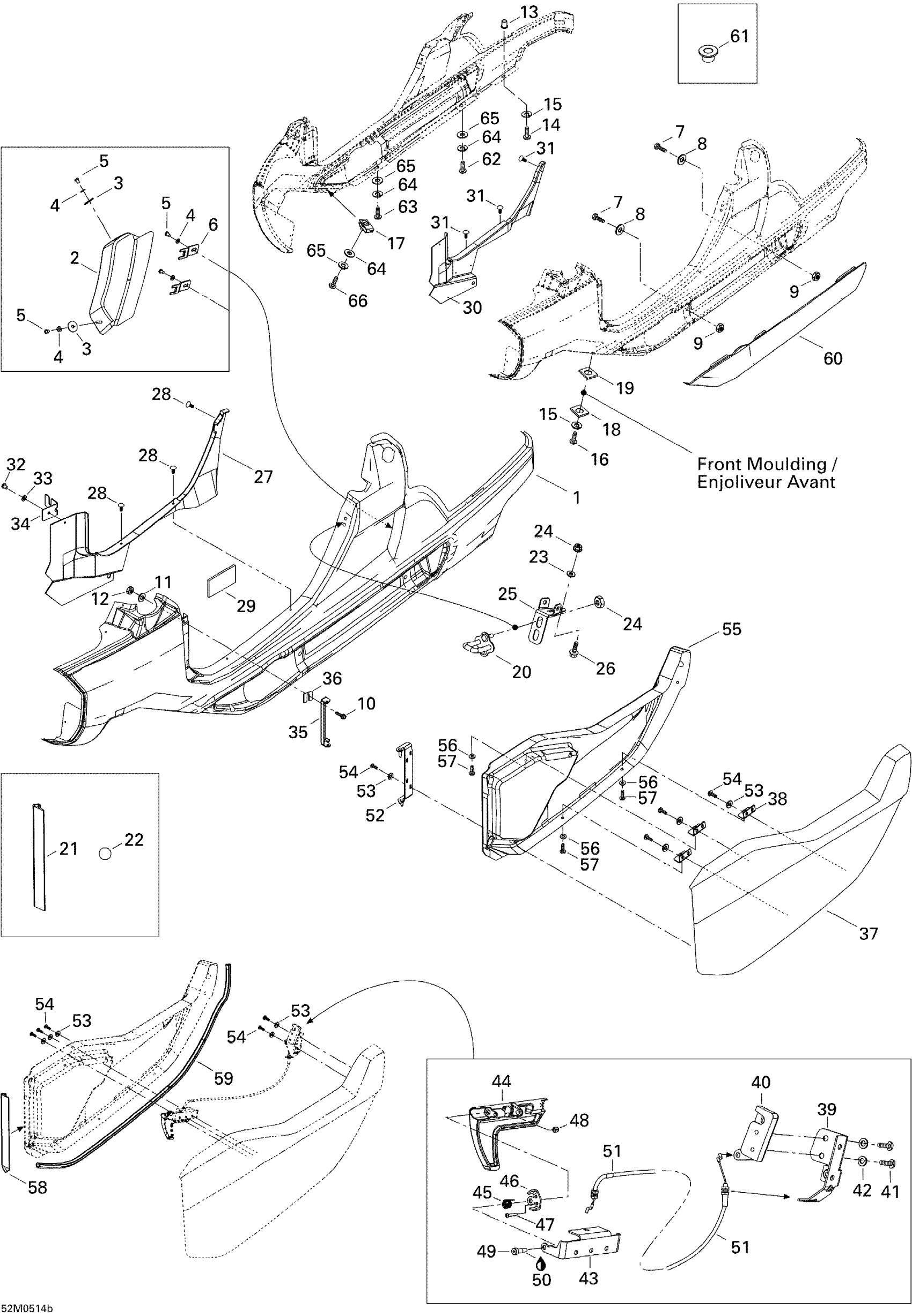

Ski-Doo Elite 1500 2nd Edition, 2004 09- Body, Elite 2 Diagram

#

Description
Price

1

Lateral Panel RH

517302889

Unavailable

1

Lateral Panel LH

517302893

Unavailable

2

RH Side Grille

517303188

Unavailable

2

LH Side Grille

517303189

Unavailable

3

Washer M6

250200029

$2.50

4

Lock Washer M6, Black

234161471

$0.53

5

Socket Screw M6 X 8

205460860

$0.52

6

Grille Support

517303203

Unavailable

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Flat Washer 6 mm

234062410

$0.77

9

Elastic Stop Nut M6

232561414

$0.55

10

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

11

Flat Washer 6 mm

234062410

$0.77

12

Elastic Stop Nut M6

232561414

$0.55

13

Flanged Bushing

517303235

Unavailable

14

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

15

Lock Washer Helical M6

234161601

$1.15

16

Socket Screw M6 X 40

205464060

$2.22

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Rubber Spacer 2 mm

517303258

Unavailable

19

Rubber Spacer 5 mm

517303259

Unavailable

20

Door Hook

517302891

Unavailable

21

Seal

517303280

Unavailable

22

Cap

517303317

Unavailable

23

Flat Washer 6 mm

234062410

$0.77

24

Elastic Stop Nut M6

232561414

$0.55

25

Intermediate Support

517303231

Unavailable

26

Hex. Flange Screw M6 X 16

207661644

$0.74

27

Interior Moulding LH

517303091

Unavailable

28

GRAY DART - Call your local BRP dealership

517303276

Unavailable

29

Seal

517303301

Unavailable

30

Interior Moulding RH

517303092

Unavailable

31

GRAY DART - Call your local BRP dealership

517303276

Unavailable

32

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000147

Unavailable

33

Flat Washer

250200039

$0.74

34

Cable Support

517303253

Unavailable

35

Female Half Hinge LH

517303239

Unavailable

35

Female Half Hinge RH

517303240

Unavailable

36

Spacer

517303432

Unavailable

37

Outer Panel RH

517302895

Unavailable

37

Outer Panel LH

517302902

Unavailable

38

Inner Panel Attachment

517303165

Unavailable

39

Latch Support RH

517303168

Unavailable

39

Latch Support LH

517303169

Unavailable

40

Latch Ass'y RH

517302872

Unavailable

40

Latch Ass'y LH

517302897

Unavailable

41

SOCKET SCREW 1/4-20 X 1 - Call your local BRP dealership

250000185

Unavailable

42

Lock Washer 1/4

250200042

Unavailable

43

Handle Support

517303167

Unavailable

44

Door Handle RH

517302904

Unavailable

44

Door Handle LH

517303164

Unavailable

45

Spring RH

517303209

Unavailable

45

Spring LH

517303211

Unavailable

46

Stop Plate

517303230

Unavailable

47

Socket Screw M4 X 25

205442560

$1.15

48

Elastic Stop Nut M4

232541414

$0.58

49

Socket Head Shouldered Screw

250000171

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

Cable

517303191

Unavailable

52

Male Half Hinge RH

517303241

Unavailable

52

Male Half Hinge LH

517303243

Unavailable

53

Lock Washer Helical M6

234161601

$1.15

54

Socket Screw M6 X 8

205460860

$0.52

55

Door Inner Panel RH

517302896

Unavailable

55

Door Inner Panel LH

517302903

Unavailable

56

Flat Washer

250200039

$0.74

57

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

58

Seal | R.H. Side Door

517303277

Unavailable

58

Seal | L.H. Side Door

517303279

Unavailable

59

Seal

517303316

Unavailable

60

Panel RH

517302905

Unavailable

60

Panel LH

517302906

Unavailable

61

Flanged Bushing

517303235

Unavailable

62

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

63

SOCKET SCREW M6 X 30 - Call your local BRP dealership

205463060

Unavailable

64

Flat Washer M6, Stainless

234062600

$0.77

65

Lock Washer Helical M6

234161601

$1.15

66

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable
