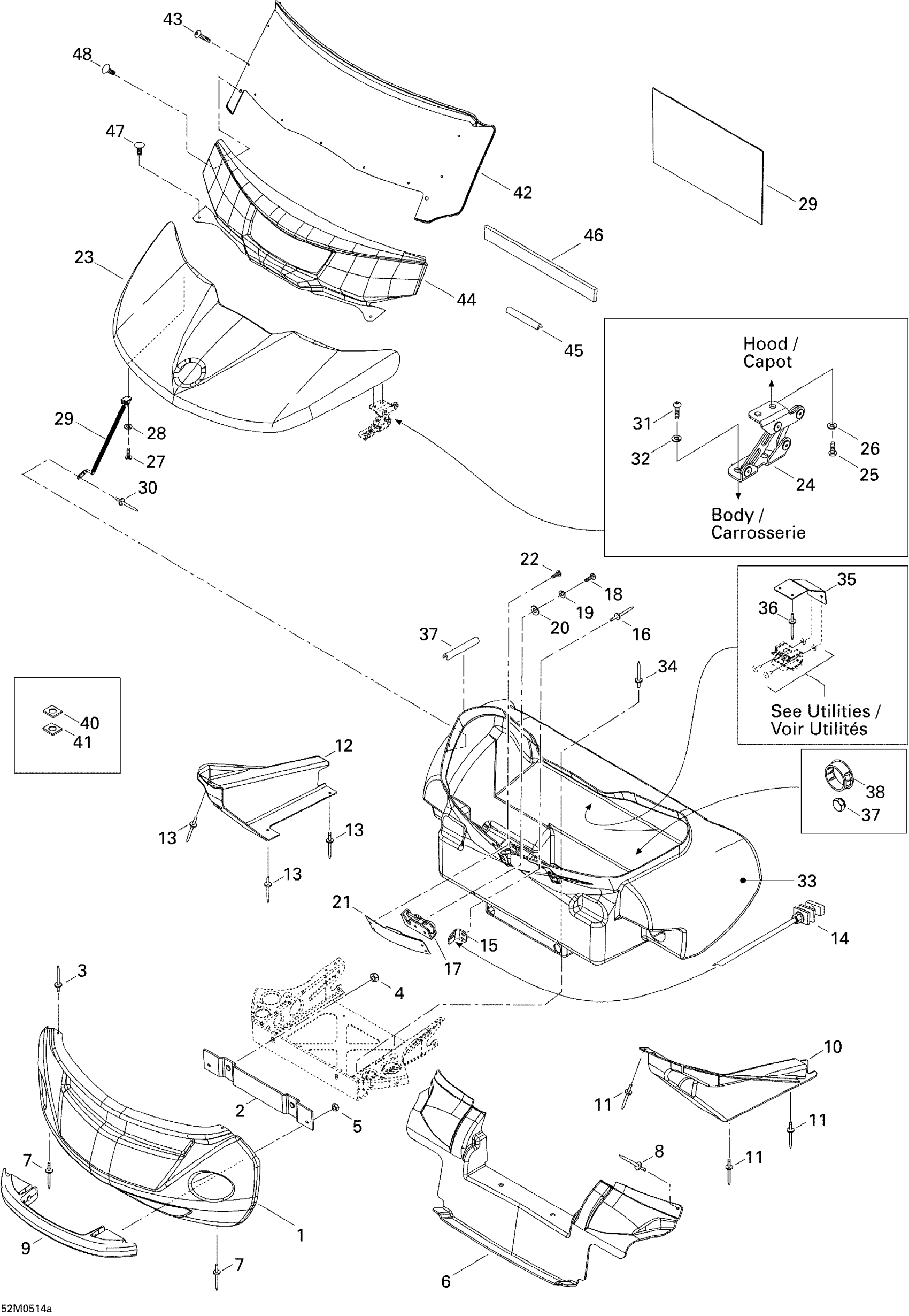

Ski-Doo Elite 1500 2nd Edition, 2004 09- Body, Elite 1 Diagram

#

Description
Price

1

Hull

517302869

Unavailable

2

Bumper Insert

517303200

Unavailable

3

RIVET - Call your local BRP dealership

293150065

Unavailable

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Elastic Stop Nut M6

232561414

$0.55

6

Bottom Pan Panel

517303119

Unavailable

7

RIVET - Call your local BRP dealership

293150065

Unavailable

8

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

9

Front Bumper

517302987

Unavailable

10

Front Moulding LH

517303001

Unavailable

11

Pop Rivet 3/16"

390406500

$0.88

12

Front Moulding RH

517303002

Unavailable

13

Pop Rivet 3/16"

390406500

$0.88

14

Hood Cable

517303192

Unavailable

15

Cable Support

517303252

Unavailable

16

Rivet 3/16"

293150102

$0.70

17

Latch Ass'y RH

517302872

Unavailable

18

SOCKET SCREW 1/4-20 X 1 - Call your local BRP dealership

250000185

Unavailable

19

Lock Washer 1/4

250200042

Unavailable

20

Flat Washer 1/4

250200043

Unavailable

21

Latch Guard

517303218

Unavailable

22

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

23

Hood

517302875

Unavailable

24

Hinge Ass'y LH

517302877

Unavailable

24

Hinge Ass'y RH

517302961

Unavailable

25

Socket Screw M6 X 8

205460860

$0.52

26

Lock Washer Helical M6

234161601

$1.15

27

Socket Screw M4 X 6

205440660

Unavailable

28

Lock Washer 4 mm

234141601

$1.15

29

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

31

Socket Screw M6 X 16

205461660

$7.48

32

Lock Washer Helical M6

234161601

$1.15

33

Storage Tray

517302879

Unavailable

34

Pop Rivet 3/16”

293150108

$1.19

35

Storage Tray Reinforcement

517303431

Unavailable

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

37

Seal

517303315

Unavailable

38

Plug 2 1/2"

517303521

Unavailable

39

Black Plug

291000279

$7.69

40

Rubber Spacer 2 mm

517303258

Unavailable

41

Rubber Spacer 5 mm

517303259

Unavailable

42

Windshield

517303027

Unavailable

43

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

44

Hubcap

517303464

Unavailable

45

Seal

517303284

Unavailable

46

Headlamp Moulding Foam

517303427

Unavailable

47

GRAY DART - Call your local BRP dealership

517303276

Unavailable

48

Black Dart

293730014

$0.99

49

Floor Carpet

517303233

Unavailable
