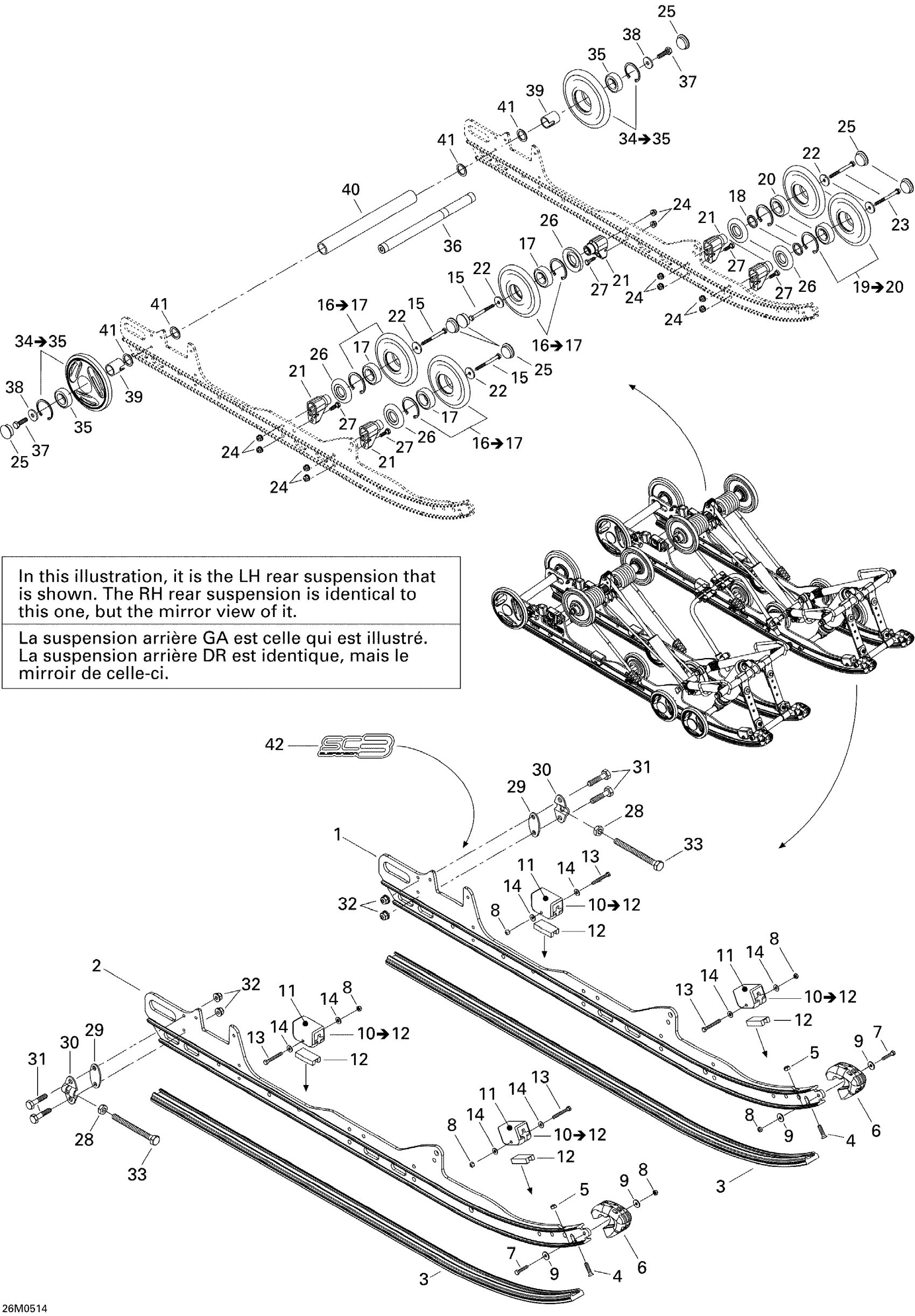

Ski-Doo Elite 1500 2nd Edition, 2004 08- Rear Suspension Diagram

#

Description
Price

1

Runner | SE

503190266

Unavailable

2

Inside Runner

503190651

Unavailable

3

Slide Shoe

605355362

$29.49

4

Phillips Screw M6 X 25

208562560

$2.32

5

Elastic Stop Nut M6

232561414

$0.55

6

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

7

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

8

Elastic Stop Nut M5

232551414

$0.87

9

Washer | DS 650 X

391301600

$0.48

10

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

11

Rubber Stopper

570063000

Unavailable

12

Reinforcement Stopper

572084800

$12.99

13

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Hex. Screw M8 X 80

207088044

$1.68

16

Wheel 139 mm Ass'y

503190798

$33.99

17

Ball Bearing

293350115

$12.11

18

WASHER - Call your local BRP dealership

503173700

Unavailable

19

WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership

503190796

Unavailable

20

Ball Bearing

293350115

$12.11

21

SUPPORT - Call your local BRP dealership

503190389

Unavailable

22

Washer

503183100

$3.17

23

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Wheel Cap

570063600

$3.49

26

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.90

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

30

Tensioner

503155300

Unavailable

31

Hex. Screw M6 X 30

207063044

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Wheel 180 Ass'y, Full Moon | Includes 35 to 36

503190801

Unavailable

35

Ball Bearing

293350115

$12.11

36

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

37

Hex. Screw With Nylon

250000019

$1.69

38

Washer

503183300

$5.82

39

Outer Spacer

503189809

$18.89

40

SPACER - Call your local BRP dealership

503188941

Unavailable

41

Washer

503180400

$3.49

42

Suspension Decal

516002658

Unavailable
