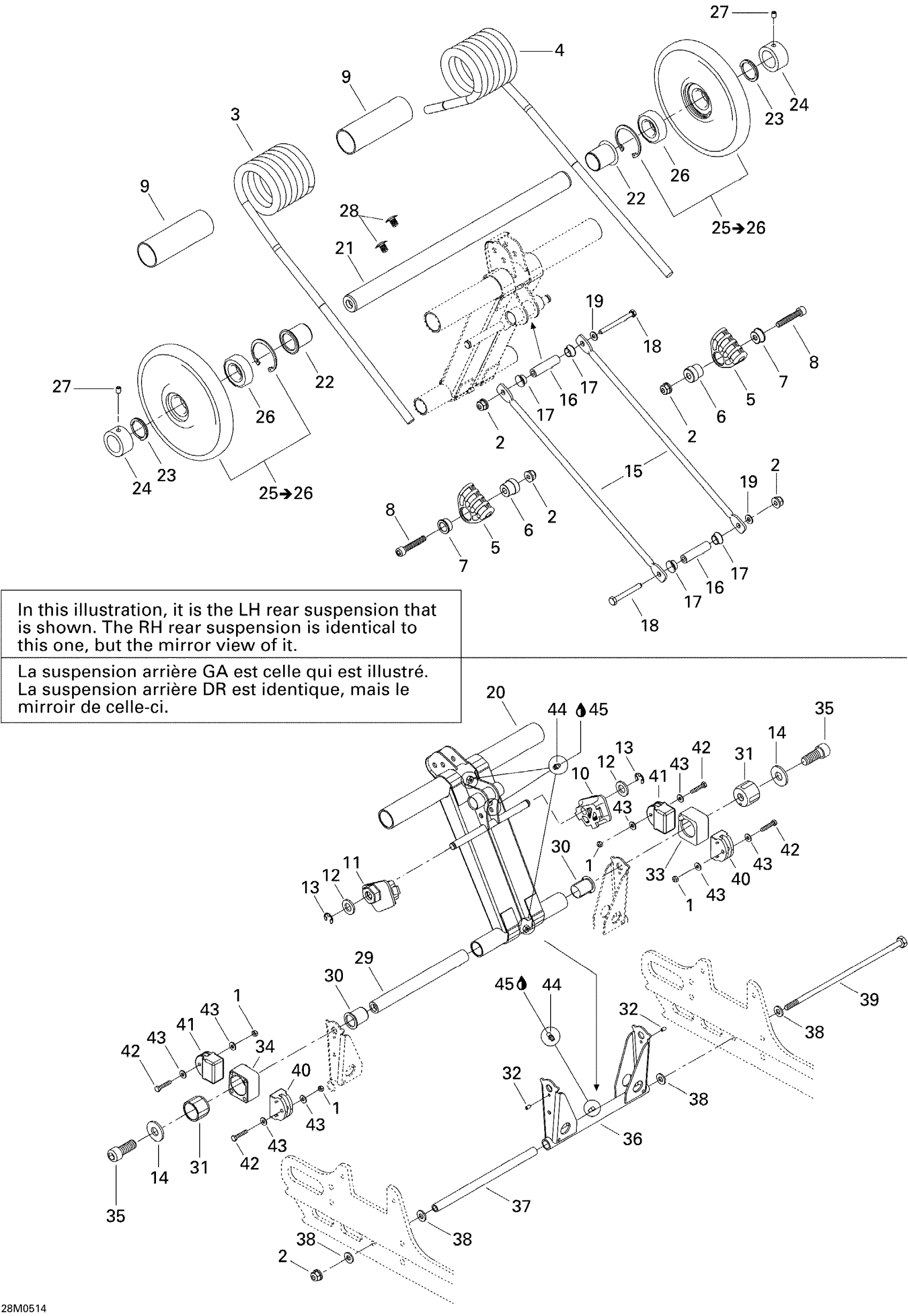

Ski-Doo Elite 1500 2nd Edition, 2004 Rear Arm Diagram

#

Description
Price

1

Elastic Stop Nut M5

232551414

$0.72

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

RH SPRING - Call your local BRP dealership | GTX Sport Europe

503189898

Unavailable

4

LH SPRING - Call your local BRP dealership | GTX Sport Europe

503189900

Unavailable

5

Spring Support

503189657

$10.20

6

Spring Guide Axle

503188934

Unavailable

7

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

8

Socket Head Screw M8 X 45

205084544

$0.74

9

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

10

LH CAM ADJUSTER - Call your local BRP dealership

503190023

$9.29

11

RH CAM ADJUSTER - Call your local BRP dealership

503190022

$8.37

12

Flat Washer 12 mm

234021410

$0.68

13

E-Circlip

293370013

$0.62

14

Washer

503189276

$3.20

15

THROTTLE ROD - Call your local BRP dealership

503190111

Unavailable

16

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

17

Swivel Bushing

503191555

$5.71

18

Hex. Screw M8 X 90

207089044

$2.82

19

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

20

Rear Arm

503191060

$140.74

21

Upper Axle

503189412

Unavailable

22

CUSHION - Call your local BRP dealership

503189288

$3.05

23

Axle Spring

503189146

$7.54

24

Retainer Ring

503189147

Unavailable

25

Wheel 165 Ass'y

503190816

Unavailable

26

Ball Bearing

293350115

$11.15

27

Socket Set Screw M6 X 8

206260844

$1.25

28

Black, Dart

414644300

$0.78

29

REAR LOWER AXLE - Call your local BRP dealership

503189413

$13.05

30

Cushion

503191640

$5.71

31

Block Guide

503189488

$37.66

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

$1.00

33

LH Block

503189152

Unavailable

34

RH Block

503189170

Unavailable

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

36

PIVOT ARM - Call your local BRP dealership

503189819

$75.35

37

Pivot Arm Axle

503189156

$20.74

38

Washer

503189157

$3.20

39

Bolt M8 X 248mm

503192440

$29.97

40

Rubber Stopper

503191291

$18.43

41

REAR RUBBER STOPPER - Call your local BRP dealership

503190681

$8.43

42

Hex. Screw M5 X 30

207053044

$0.98

43

Washer

250200016

$0.72

44

Grease Fitting

408200700

$2.80

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
