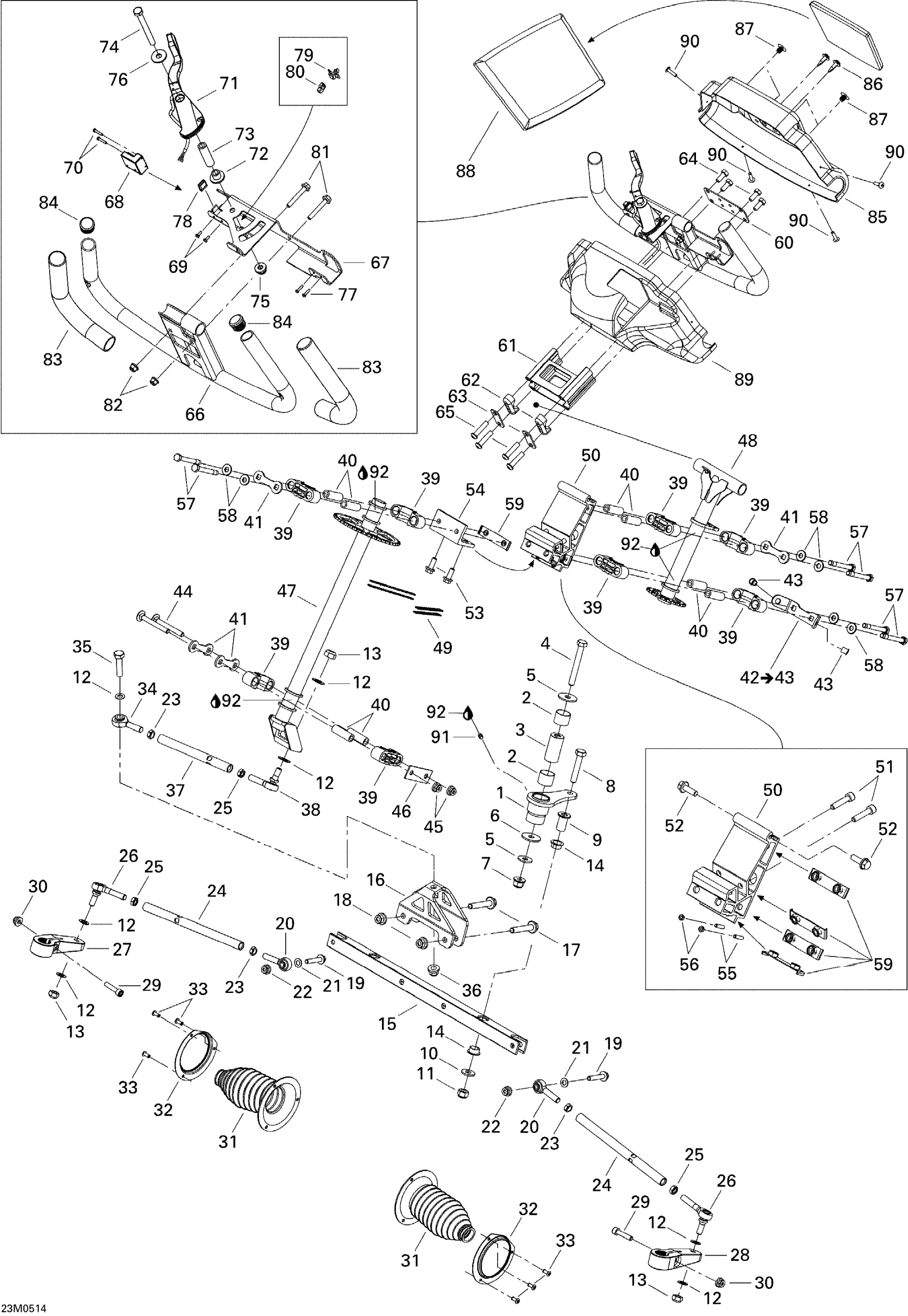

Ski-Doo Elite 1500 2nd Edition, 2004 07- Steering System Diagram

#

Description
Price

1

LH SWIVEL ARM - Call your local BRP dealership

506151623

Unavailable

2

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

3

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

4

Hex. Screw M10 X 80

207008086

$3.38

5

Washer 10 mm

506150000

$2.74

6

Flat Washer M10 | 4X4

250200014

$1.49

7

Flange Nut M10

732610084

$6.79

8

Hex. Screw M10 X 55

207005544

$2.22

9

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

10

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Washer

503175800

$3.28

13

Elastic Flange Nut M10

232501416

$1.48

14

Swivel Bushing

503191555

$7.83

15

Swivel Bar

506151842

Unavailable

16

Swivel Bar Plate

506151750

Unavailable

17

Hex. Flange Screw M10 X 55

207605544

$3.38

18

Hex. Flange Elastic Nut M10

233201436

$2.11

19

Hex. Flange Screw M8 X 40

207684044

$1.48

20

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

21

Washer

506151252

$3.17

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

LH Threaded Hex. Jam Nut M10

250100016

$0.74

24

Tie-Rod

506151374

Unavailable

25

RH Threaded Hex. Jam Nut M10

732610010

$0.74

26

Ball Joint

506151491

$45.99

27

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

28

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

29

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

32

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

33

Pop Rivet 3/16"

390402300

$0.75

34

LH Ball Joint

506151810

Unavailable

35

Hex. Screw M10 X 45

207004544

$1.69

36

Hex. Flange Elastic Nut M10

233201436

$2.11

37

Inside Tie-Rod

506151585

Unavailable

38

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

39

Housing Half

506150400

$7.62

40

Housing Bushing

506150500

$7.99

41

Stopper Plate

506150600

$4.39

42

Stopper Plate Ass'y | Includes 42 To 43

506151885

Unavailable

43

Insert

293450275

$12.99

44

Carriage Bolt M8 X 70

207787044

$1.37

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

Reinforcement Plate

506151934

Unavailable

47

Inferior Main Tube

506151586

Unavailable

48

Superior Main Tube

506151744

Unavailable

49

Chain #35

506151755

Unavailable

50

Superior Bracket

506151734

Unavailable

51

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

52

Hex. Forming Screw M8 X 25

210282540

Unavailable

53

Hex. Flange Screw M8 X 20

207682044

$1.15

54

Tensionner

506151749

Unavailable

55

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

56

Hex. Nut M5

232051600

$1.15

57

Hex. Screw M8 X 65, Scotch Grip

207286544

Unavailable

58

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

59

Bracket

506151841

Unavailable

60

Plate

506151757

Unavailable

61

Extension

506151756

Unavailable

62

Steering Support

709400919

$22.49

63

Stiffner

709400509

$4.69

64

Hex. Screw With Nylon

250000118

Unavailable

65

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205483546

Unavailable

66

Steering

506151589

Unavailable

67

Control Support

506151965

Unavailable

68

Switch Holder

506151850

Unavailable

69

HEX. SCREW M3 X 08 - Call your local BRP dealership

207130860

Unavailable

70

Socket Head Screw M3 X 16

205431660

$1.47

71

Lever Ass'y

512060021

Unavailable

72

Pivot Bushing

506151763

Unavailable

73

Bushing

506151762

Unavailable

74

Hex. Screw M8 X 80

207088044

$1.68

75

Hex. Flange Elastic Nut M8

233281414

$1.47

76

Flat Washer 8 mm

234082410

$1.47

77

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

78

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

79

Tie-rap Mount

293750010

Unavailable

80

Tie Wrap 142 mm

293750002

$1.25

81

Hex. Flange Screw M6 X 40

207664044

$2.22

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Grip

506151914

Unavailable

84

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

85

Front Pad

506151865

Unavailable

86

SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership

211000088

Unavailable

87

Black Dart

293730010

$0.99

88

Steering Pad

506151592

Unavailable

89

Back Envelope

506151962

Unavailable

90

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable

91

Grease Fitting

408200700

$3.49

92

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
