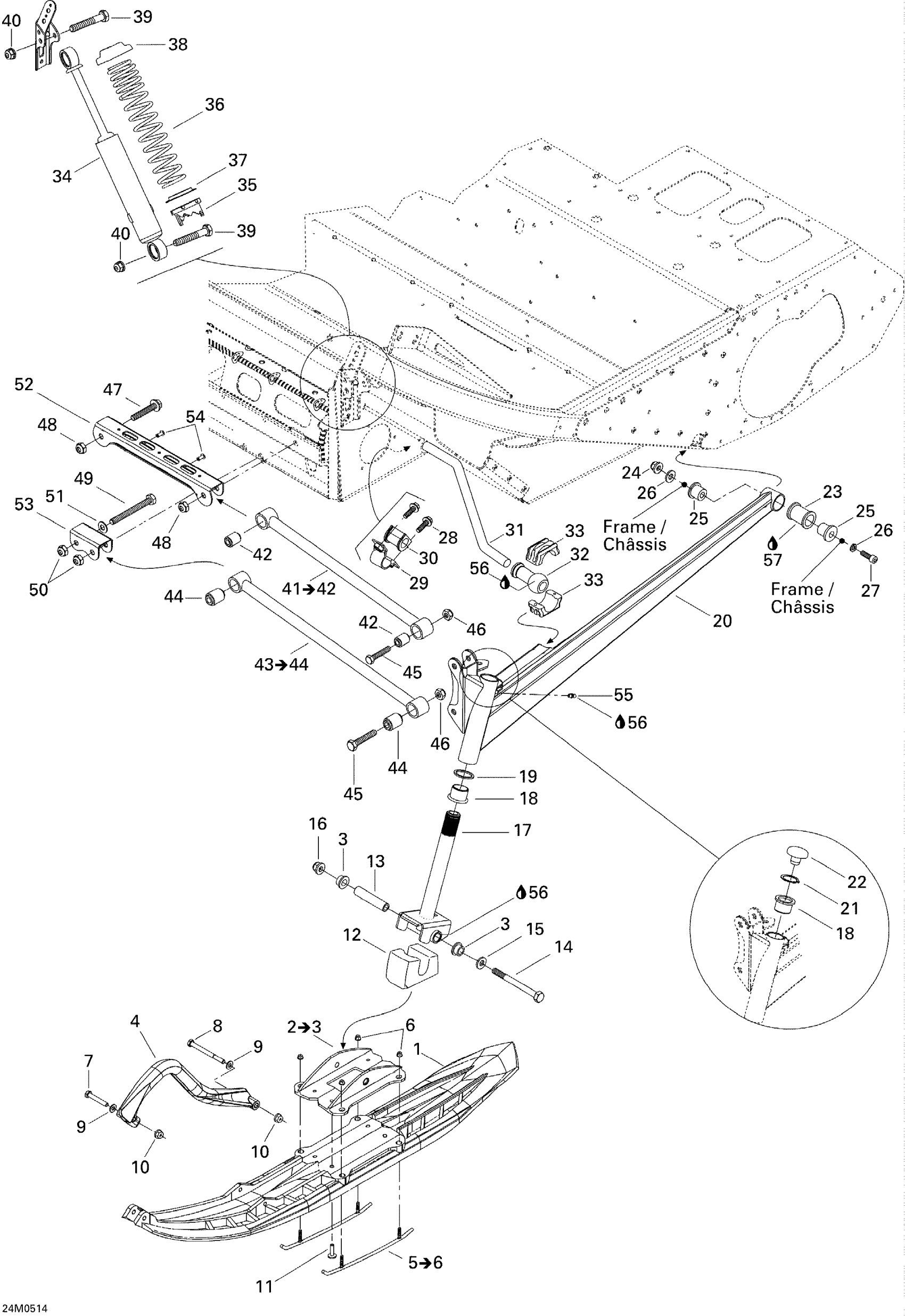

Ski-Doo Elite 1500 2nd Edition, 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$106.69

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

$34.30

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$135.79

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

$1.25

8

Hex. Screw M8 X 90

207089044

$2.82

9

Flat Washer 8 mm

234081410

$0.69

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$19.37

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

$0.55

16

Flange Nut M10

732610084

$5.49

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

$7.18

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH Swing Arm

505071027

Unavailable

20

LH Swing Arm

505071028

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.70

23

Rubber Damper

505071183

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.63

25

Cushion

505071029

Unavailable

26

Washer

503175800

$3.16

27

Hex. Screw M10 X 80

207008086

$3.19

28

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

29

Stabilisator Clamp

505071266

Unavailable

30

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

31

STABILISATOR - Call your local BRP dealership

505070563

Unavailable

32

BALL JOINT - Call your local BRP dealership

505070819

Unavailable

33

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

34

Front Shock

505071413

Unavailable

35

Adjustment Cam

505073625

$11.82

36

Spring

505071414

Unavailable

37

Spring Guide

503187500

$7.37

38

Spring Stopper

706200881

$10.30

39

Hex. Screw M10 X 55

207005544

$1.85

40

Elastic Locking Nut M10 X 1.5

233601416

$1.63

41

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

42

Bushing

505070025

Unavailable

43

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

44

Bushing

505070025

Unavailable

45

Hex. Screw M10 X 55

207005544

$1.85

46

Elastic Locking Nut M10 X 1.5

233601416

$1.63

47

Hex. Flange Screw M10 X 55

207605544

$2.78

48

Elastic Locking Nut M10 X 1.5

233601416

$1.63

49

Hex. Screw M10 X 95

207009544

Unavailable

50

Elastic Locking Nut M10 X 1.5

233601416

$1.63

51

Flat Washer 10 mm

234001410

$0.98

52

Upper Arm Bracket

505070010

Unavailable

53

Lower Arm Bracket

505070011

Unavailable

54

Pop Rivet 3/16"

390402200

$0.26

55

Grease Fitting

408200700

$2.80

56

SYNTHETIC GREASE - Call your local BRP dealership

413711500

Unavailable

57

Grease, Super Lube

293550030

$24.67
