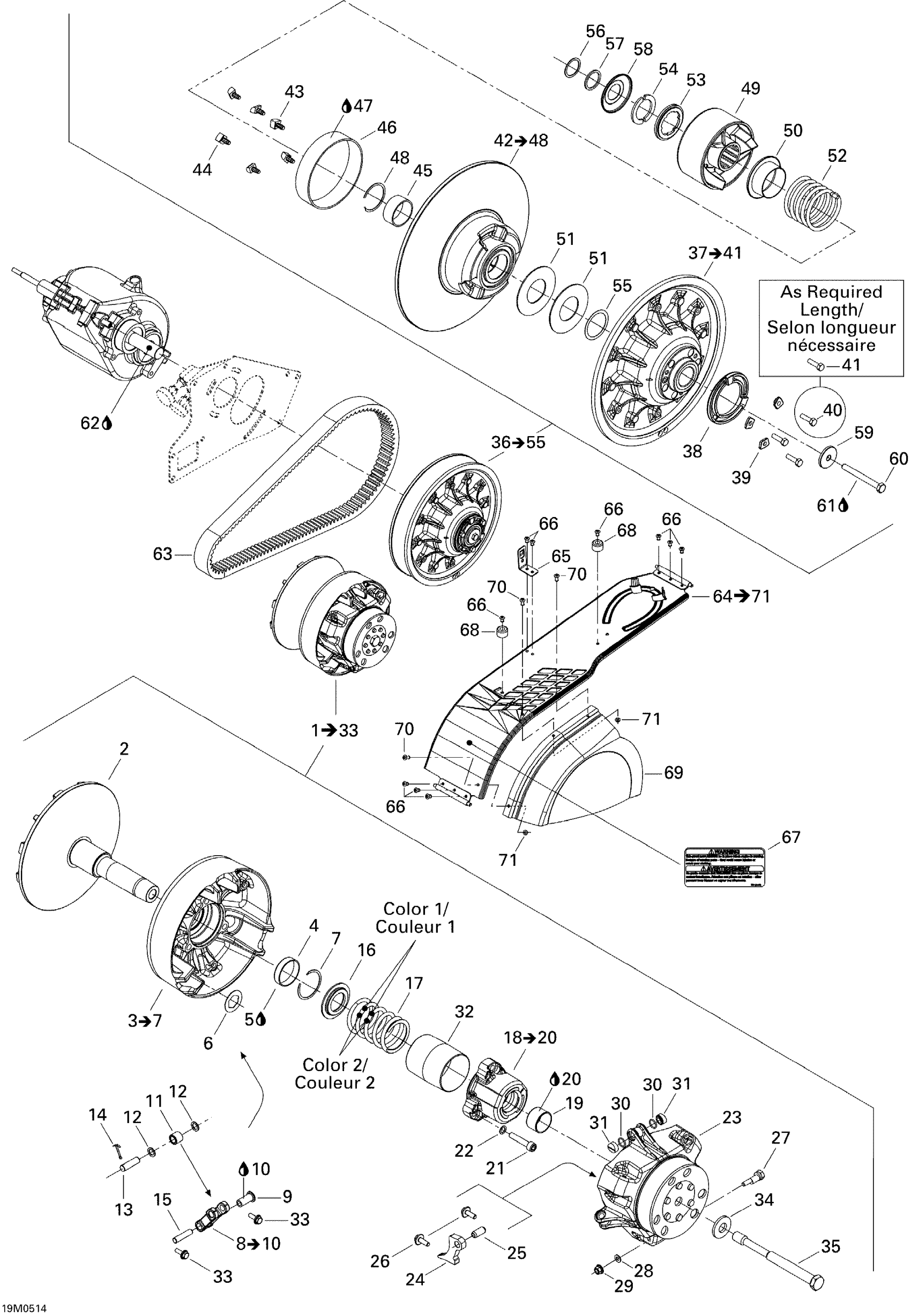

Ski-Doo Elite 1500 2nd Edition, 2004 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222593

Unavailable

3

Sliding Flange Ass'y

417223093

$299.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Circlip

293370037

$3.19

8

Lever Ass'y | Includes 8 to 10

417222647

Unavailable

9

Bushing

417222633

Unavailable

10

Loctite 609, 10 ml

413703100

$26.99

11

Roller

417222947

$21.99

12

Stopper Washer

417004302

$15.90

13

Pin

417004308

$13.99

14

Cotter Pin

250400060

$2.00

15

Lever Axle

417223164

$4.49

16

Spring Seat

417222312

$9.59

17

CLUTCH SPRING, YELLOW/YELLOW - Call your local BRP dealership

414748600

Unavailable

18

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

19

Bushing

417009204

$17.49

20

Loctite 609, 10 ml

413703100

$26.99

21

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

22

Lock Washer 8 mm

250200009

$2.11

23

Governor Cup Ass'y

417222770

Unavailable

24

Rampe 609

417222696

Unavailable

25

Spring Pin M10 X 22

250400050

$2.99

26

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

27

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

28

Washer

417005600

$4.09

29

Hex. Flange Nut M6

233061414

$1.68

30

O-Ring

732401030

$0.98

31

Slider Shoe This part replaces 420460045.

417223021

$5.90

32

Guard

417009205

$21.99

33

Serrated Hex. Flange Bolt M6

250000416

$4.23

34

Spring Washer 14 mm

250200006

$6.99

35

Drive Pulley Bolt

417300258

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

38

Adjustment Ring

415005800

Unavailable

39

Adjustment Shim

415005900

Unavailable

40

Hex. Screw M6 X 25

207162544

$1.15

41

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

42

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

43

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

44

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

45

Not Available As Spare Part - Friction Washer

Unavailable

46

BUSHING - Call your local BRP dealership

417126902

Unavailable

47

Loctite 609, 10 ml

413703100

$26.99

48

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

49

CAM ASS'Y - Call your local BRP dealership

417126803

Unavailable

50

GUARD - Call your local BRP dealership

415006000

Unavailable

51

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

52

Release Spring

417126877

Unavailable

53

SPACER - Call your local BRP dealership

417126733

Unavailable

54

HALF KEY - Call your local BRP dealership

417126734

Unavailable

55

SHIM - Call your local BRP dealership

504112300

Unavailable

56

Spacer

417300265

$2.29

57

Spacer

417300252

$5.49

58

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

59

Strength Washer

517302322

$12.63

60

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

61

Loctite 243, 10 ml

293800060

$21.49

62

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

63

Drive Belt

417300287

Unavailable

64

Belt Guard Ass'y | Includes 64 to 71

417300293

Unavailable

65

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

66

Pop Rivet 3/16"

390402200

$0.35

67

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

68

Rubber Stopper

293830043

Unavailable

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Pop Rivet 3/16"

390402300

$0.75

71

Flat Washer M5

234051410

$0.53
