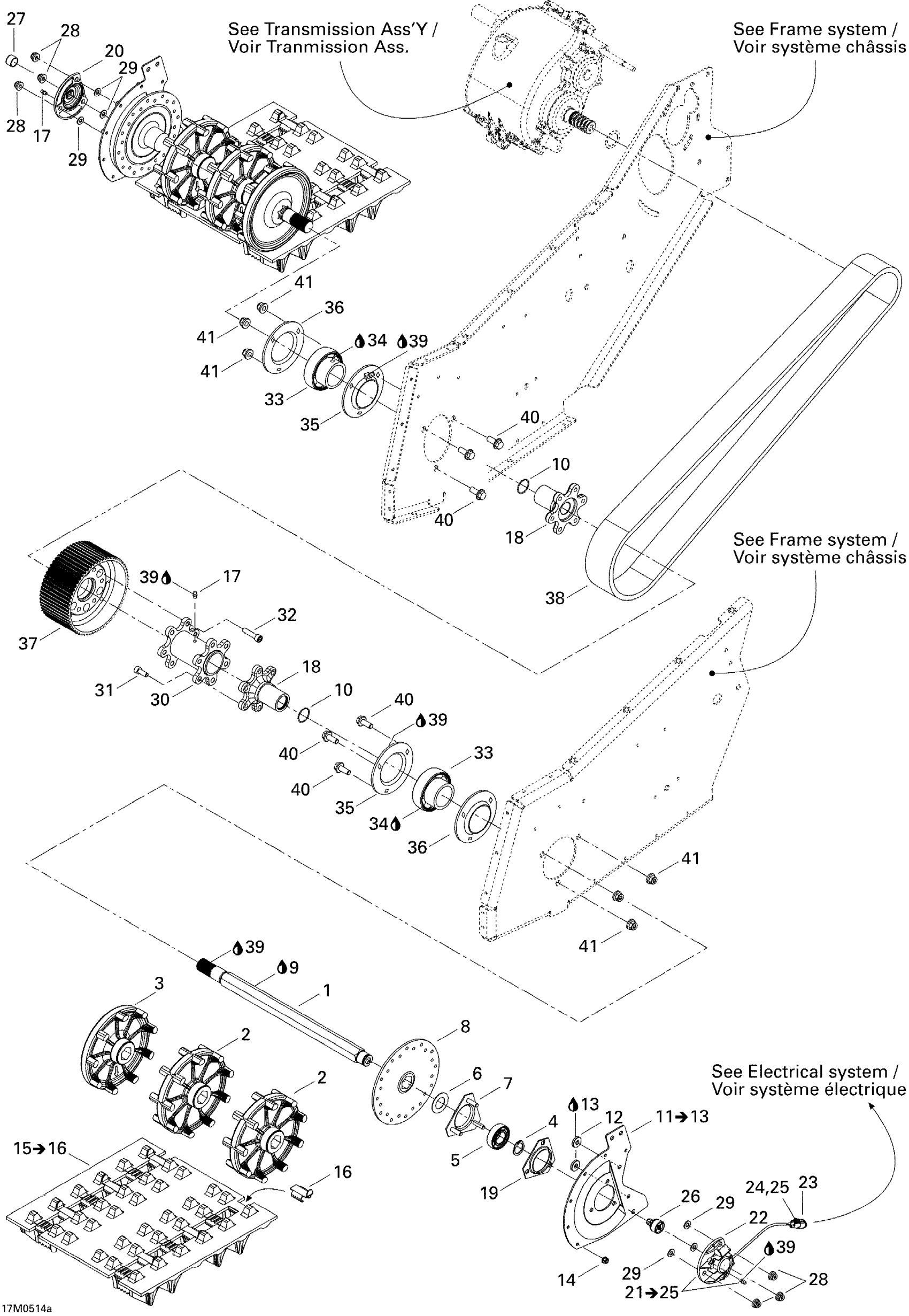

Ski-Doo Elite 1500 2nd Edition, 2004 05- Drive System 1 Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

504152161

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

Washer

250200037

Unavailable

7

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

8

Disc Brake

507032348

Unavailable

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

O-Ring

293300078

Unavailable

11

LH Sprocket Plate Ass'y | Includes items 11 to 13

504152403

Unavailable

11

RH Sprocket Plate Ass'y

504152404

Unavailable

12

Spacer

507032396

Unavailable

13

Glue Tube, Loctite 454, 20 G

413708300

$60.99

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

16

Track Guide | Track Width 16''

415129528

$3.29

17

Grease Fitting

408200700

$3.49

18

Hub

504152164

Unavailable

19

FLANGE - Call your local BRP dealership

501025000

Unavailable

20

Speed Flange Cap

504152208

Unavailable

21

Speed Flange | Includes items 21 to 25

504152209

Unavailable

22

Rotation Sensor

504152345

$71.99

23

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

24

Female Terminal

278000632

$2.09

25

Female Lock, 3 Circuits

515175676

$5.39

26

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

27

Cap

504151825

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Flat Washer 8 mm

234081410

$0.83

30

Junction Axle

504152155

Unavailable

31

Scotch Grip Socket Screw M8 X 20

205582044

$2.64

32

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

33

BALL BEARING - Call your local BRP dealership

504152346

Unavailable

34

Loctite 271, 10 ml

293800005

$26.99

35

Flange With Grease Fitting

504152347

Unavailable

36

Flange

504152348

Unavailable

37

Gear 63 Teeth

504152210

Unavailable

38

Drive Belt

504152184

Unavailable

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

40

Hex. Flange Screw M10 X 25

207602544

$1.69

41

Hex. Flange Elastic Nut M10

233201414

$1.58
