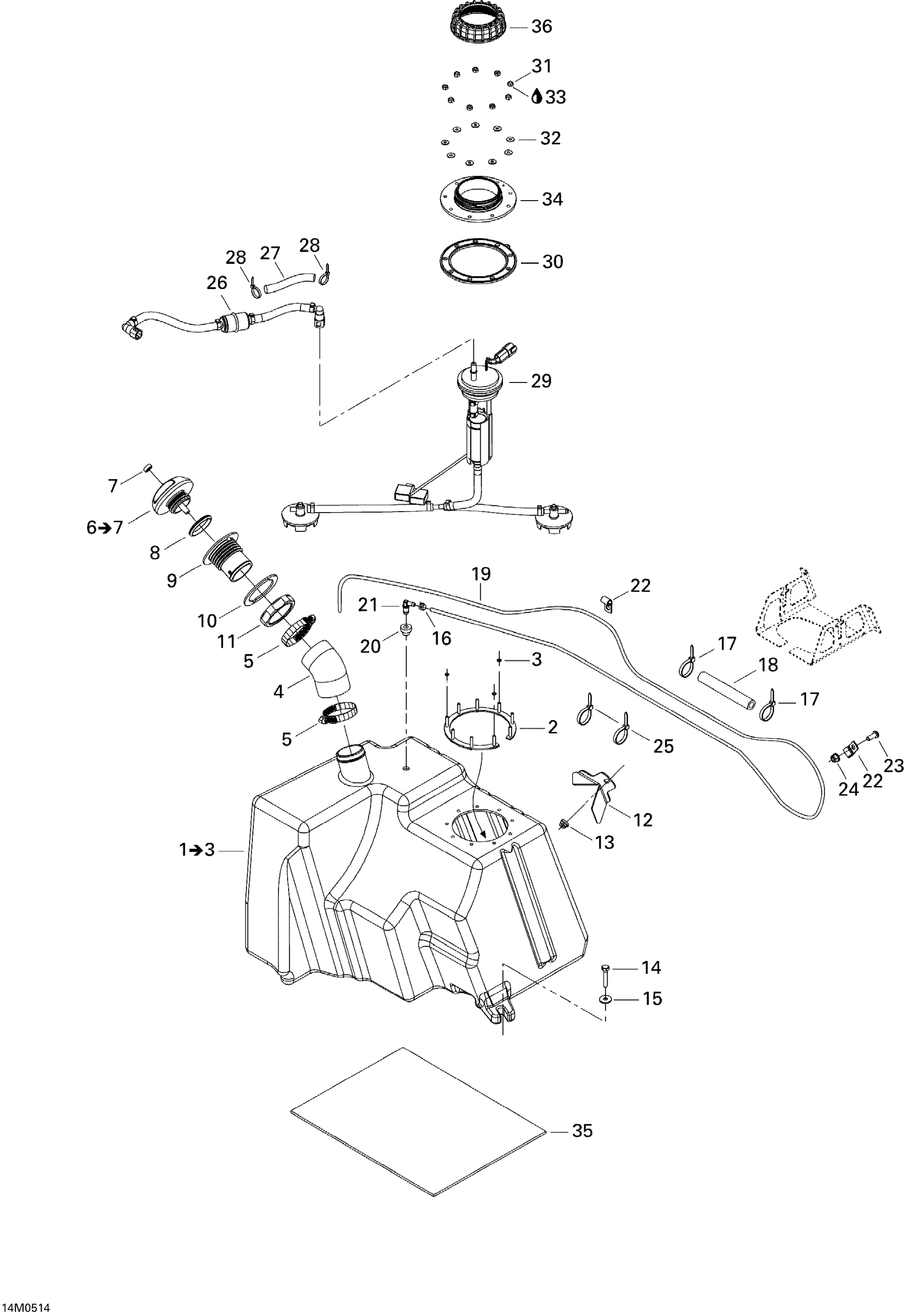

Ski-Doo Elite 1500 2nd Edition, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 3

513033051

Unavailable

2

C-Ring, 9 Studs

275500679

$78.99

3

Push Nut

389804300

$1.49

4

Hose Filler Neck, Fuel

513033052

Unavailable

5

Tridon Clamp

293650023

$13.99

6

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

7

Black, Snap Cap

293000034

$9.59

8

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

9

Filler Neck, Fuel

275500231

$14.75

10

Gasket

293250029

$15.49

11

Filler Neck Nut, Fuel

211100012

$14.49

12

Tank Support, Fuel

513033113

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.49

14

Hex. Screw M8 X 35

207083544

$1.49

15

Flat Washer 8 mm

234082410

$1.49

16

Spring Clamp

414554800

$1.49

17

Tie-Rap 180 mm

414115200

$1.49

18

Tubing 16 Mm 1000Mm Long

219704408

$7.69

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

20

Grommet

513032908

$10.99

21

Male Connector

414580700

$4.19

22

Open Clamp

414176000

$1.99

23

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

25

Tie-Rap 180 mm

414115200

$1.49

26

Fuel Filter Ass'y

513033116

Unavailable

27

Tubing 16 Mm 1000Mm Long

219704408

$7.69

28

Tie Wrap 142 mm

293750002

$1.49

29

Fuel Pump Module

513033132

Unavailable

30

Gasket

293250088

$15.49

31

Hex. Flange Nut M5

250100071

$2.19

32

Rubber Washer

291001956

Unavailable

33

Loctite 243, 10 ml

293800060

$21.49

34

Adapter

513033114

Unavailable

35

Rubber Pad, Fuel

293830104

Unavailable

36

Nut, Fuel Pump Module

513033040

$29.99
