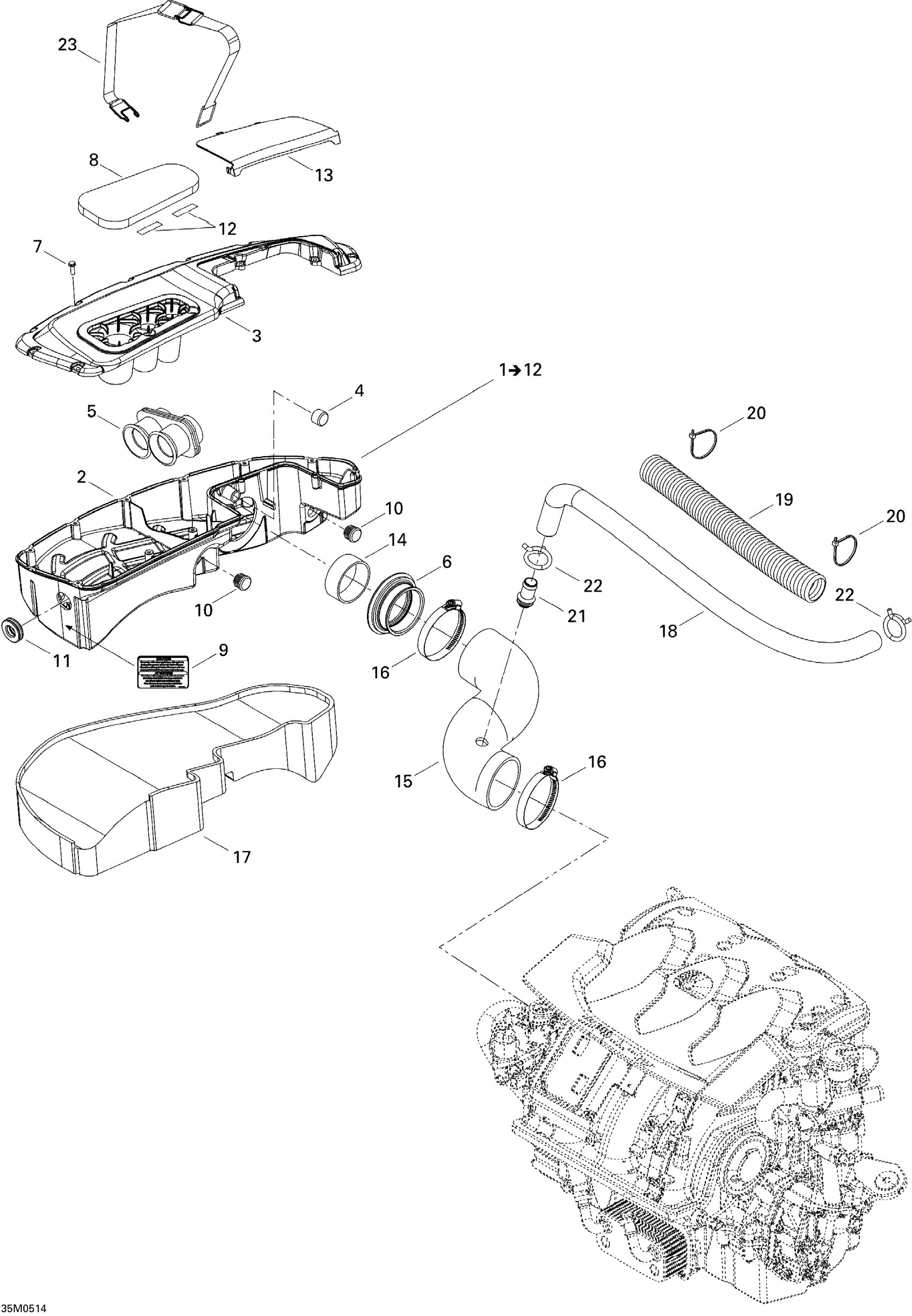

Ski-Doo Elite 1500 2nd Edition, 2004 02- Air Intake System Diagram
#
Description
Price
1
Air Silencer Ass'y | Includes 1 to 12
508000322
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Cap
504151825
Unavailable
5
Inlet Tube
273000107
Unavailable
6
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
8
AIR FILTER - Call your local BRP dealership
508000251
Unavailable
9
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
10
CAP, BLACK - Call your local BRP dealership
572110800
Unavailable
11
GROMMET - Call your local BRP dealership
570065500
Unavailable
12
VELCRO 1/2? - Call your local BRP dealership
415110900
Unavailable
13
Door
508000253
Unavailable
14
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
15
Hose Intake
508000396
Unavailable
16
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
17
Air Intake Support
508000324
Unavailable
18
Hose
508000442
Unavailable
19
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
