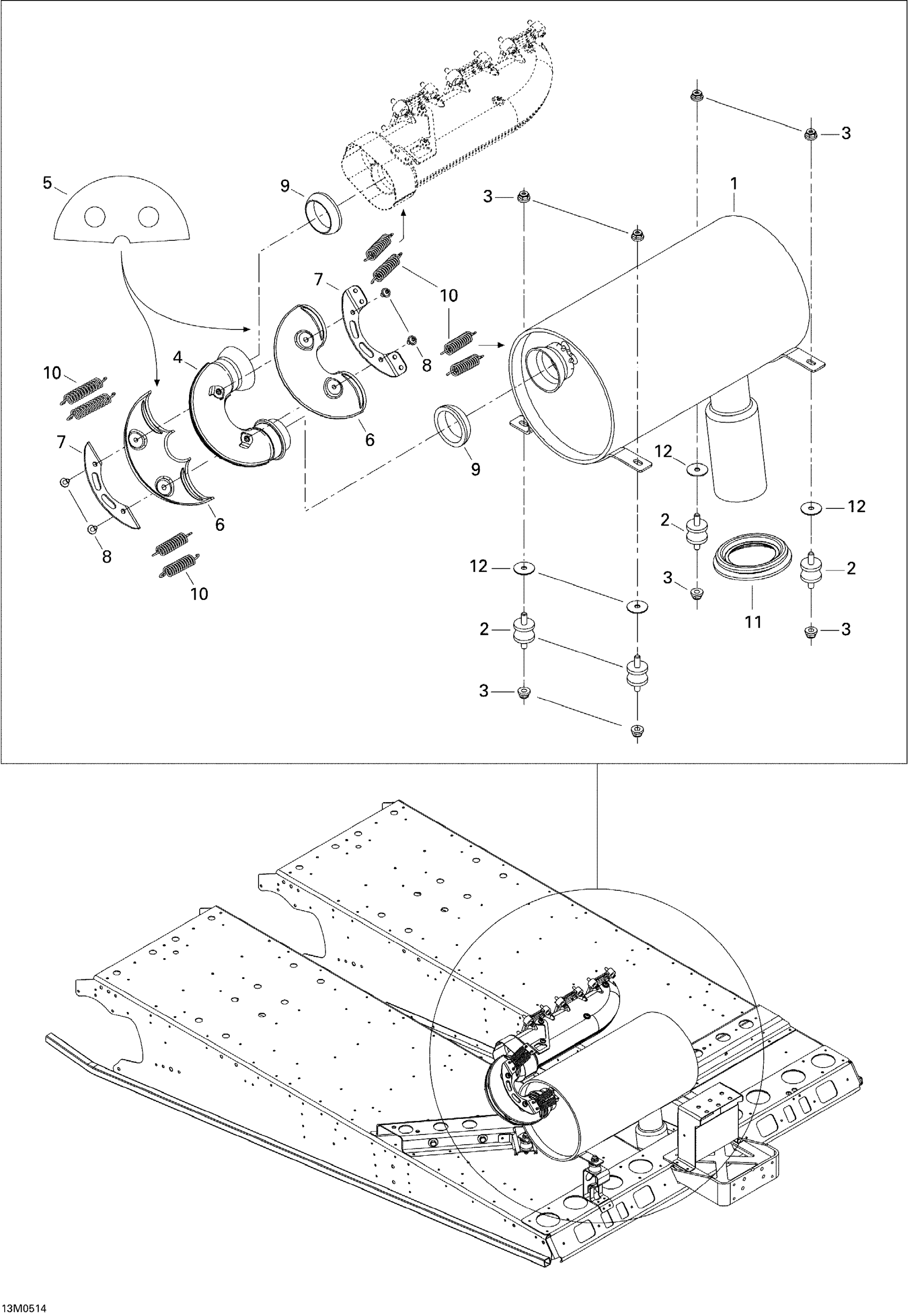

Ski-Doo Elite 1500 2nd Edition, 2004 01- Exhaust System Diagram
#
Description
Price
1
Muffler Ass'y
514053481
Unavailable
2
Rubber Mount
514052994
Unavailable
4
Elbow
514053711
Unavailable
5
Wooll Insulating
514053625
Unavailable
6
Heat Shield
514053530
Unavailable
7
Bracket
514053714
Unavailable
8
Socket Head Screw M6 X 10
514053811
Unavailable
9
Exhaust Gasket
514053712
Unavailable
10
Spring
514053793
Unavailable
11
Exhaust Grommet
514053394
Unavailable
12
Insulated Washer
514052891
Unavailable
