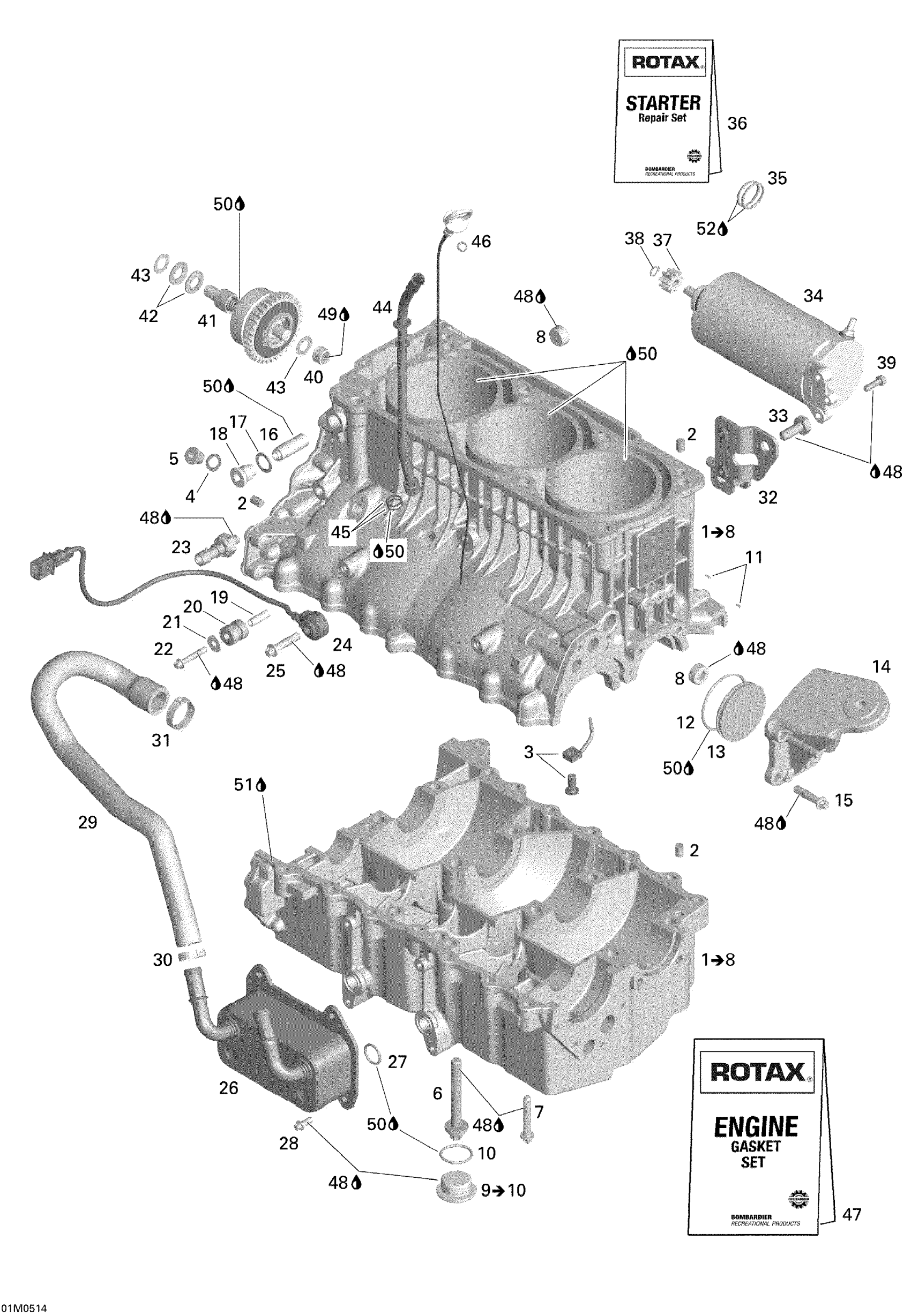

Ski-Doo Elite 1500 2nd Edition, 2004 01- Engine Block Diagram

#

Description
Price

1

Engine Block Ass'y 1503, Elite | Includes 1 to 9

420888814

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$27.49

4

Aluminum Sealing Ring

420250016

$5.39

5

Plug Screw M12

420841923

$15.89

6

Torx Flange Screw M10 X 82

420641120

$7.41

7

Hex. Flange Screw M8 X 45

420641208

$7.51

8

Plug Screw M20 X 1.5

420641317

$14.22

9

Plug Screw M30 X 1.5

420641171

$20.99

10

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$10.33

11

Grooved Pin

420249073

$1.90

12

O-Ring

420430405

$14.28

13

Plug Cover

420660110

$7.41

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$7.41

16

Chain Tensioner

415129408

$63.49

17

Gasket Ring

420430624

$1.89

18

Chain Tensioner With Screw | Includes no. 8-11

420236259

$70.99

19

SPACER - Call your local BRP dealership

420847970

Unavailable

20

Rubber Bracket

420660090

$4.12

21

Flat Washer M6

420827968

$1.90

22

Torx Flange Screw M6 X 35

420641258

$3.38

23

Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.

420856538

$58.99

24

Noise Sensor

270000484

$82.99

25

Torx Flange Screw M8 X 35

420641188

$7.41

26

Oil Radiator

420888850

Unavailable

27

O-Ring

420250057

$4.23

28

Torx Flange Screw M6 X 16

420641048

$2.96

29

FORMED HOSE - Call your local BRP dealership

420922791

Unavailable

30

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

31

Gear Clamp

420851673

$5.71

32

SPRING BRACKET - Call your local BRP dealership

420853260

Unavailable

33

Torx Flange Screw M10X25

420440243

Unavailable

34

Electric Starter Ass'y

420890020

Unavailable

35

O-Ring

420631310

$4.44

36

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

37

Starter Gear, 9 Teeth

420834522

$74.99

38

Retaining Ring

420845601

$4.55

39

Torx Flange Screw M6 X 20

420440207

$3.06

40

Needle Bushing

420232482

$20.99

41

Bendix Starter

420889951

Unavailable

42

Spring Washer

420238300

$7.41

43

THRUST WASHER - Call your local BRP dealership

420227450

Unavailable

44

OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52

420956943

Unavailable

45

O-Ring

420950810

$14.83

46

Oil Level Gauge

420956932

$30.49

47

Engine Gasket Set

420889772

$391.99

48

Loctite 243, 10 ml

293800060

$21.49

49

Grease, Super Lube

293550030

$28.99

50

Synth Oil 4T 12x1

293600054

Unavailable

51

Loctite 5910, 300 ml

293800081

$57.99

52

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

53

Engine Long Block, 1503 NA

420150315

Unavailable
