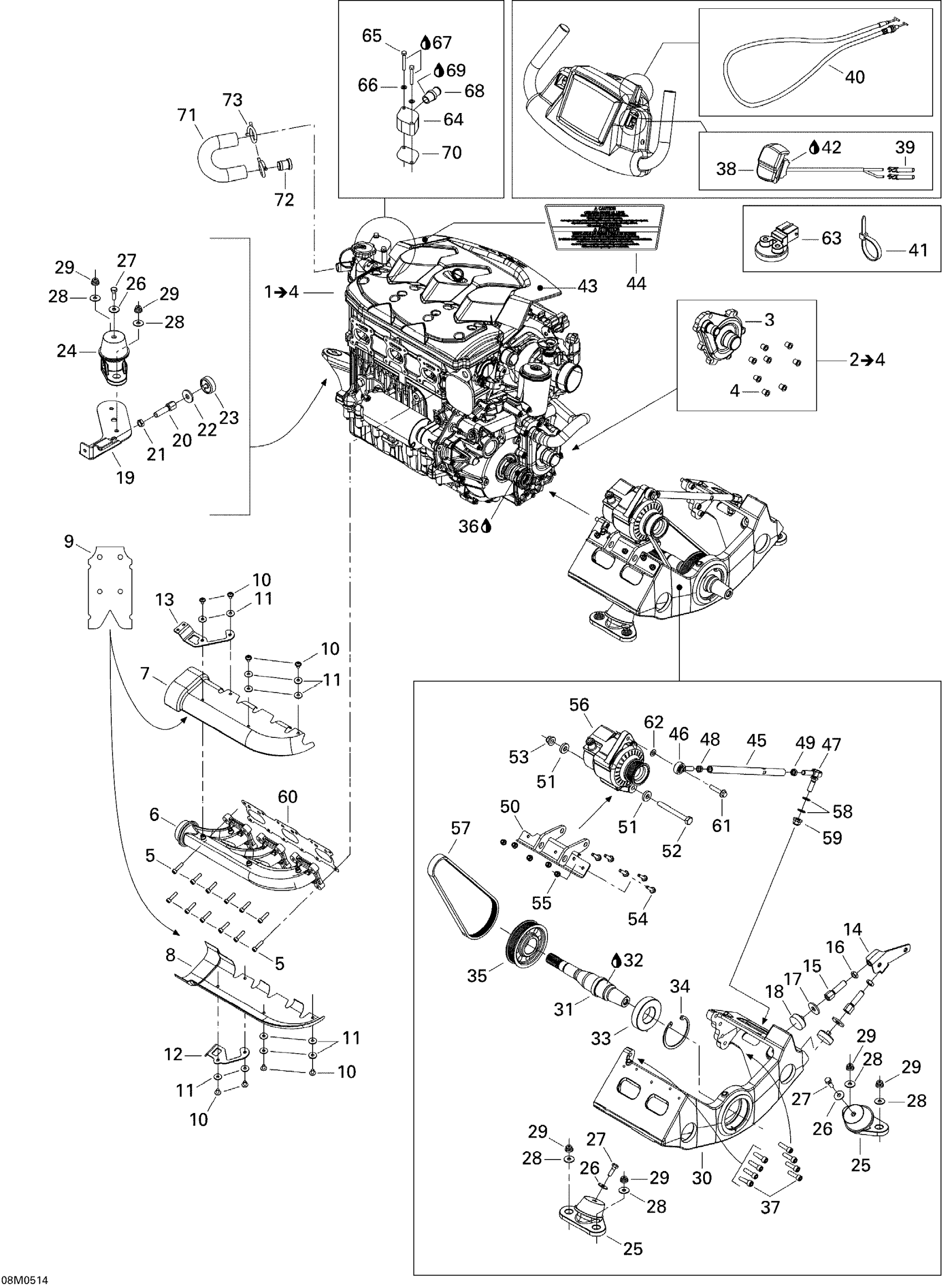

Ski-Doo Elite 1500 2nd Edition, 2004 01- Engine Diagram

#

Description
Price

1

Engine 1503 Na, 4-TEC | Includes 1 to 4

400206005

Unavailable

2

Pump Cover Ass'y | Includes 2 to 4

512059858

Unavailable

3

Pump Cover

512059678

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

6

Exhaust Manifold

512059631

Unavailable

7

Upper Deflector

512059803

Unavailable

8

Deflector Inferior

512059814

Unavailable

9

Wool Insulating

512059804

Unavailable

10

Socket Head Screw M6 X 10

514053811

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

Spring Bracket

512059819

Unavailable

13

Spring Bracket

512059827

Unavailable

14

Front Pad Holder

512059815

Unavailable

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Nut Hexagonal RH.

232026414

$1.48

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Stopper

512059056

Unavailable

19

Rear Pad Holder

512059829

Unavailable

20

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

21

Nut Hexagonal RH.

232026414

$1.48

22

WASHER - Call your local BRP dealership

512059057

Unavailable

23

Stopper

512059056

Unavailable

24

Engine Support Ass'y

270001096

$97.99

25

Engine Support Ass'y

270001081

$109.99

26

Flat Washer 8 mm

234082410

$1.47

27

Hex. Screw M8 X 25

207182544

$0.90

28

Cone Washer

250200018

$5.61

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Engine Support

512059675

Unavailable

31

DRIVE SHAFT - Call your local BRP dealership

512059673

Unavailable

32

Sealant Loctite 648

219703000

$45.99

33

Ball Bearing

512059676

Unavailable

34

Circlip

512059684

Unavailable

35

Alternator Pulley

512059831

Unavailable

36

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

37

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

38

Switch

512059881

Unavailable

39

Female Terminal

278000632

$2.09

40

THROTTLE CABLE - Call your local BRP dealership

512059916

Unavailable

41

Tie-Rap 180 mm

414115200

$0.11

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

44

Caution Decal, Checking Engine Oil Level

512060080

Unavailable

45

Tie Rod

506151851

Unavailable

46

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

47

Ball Joint

506151811

Unavailable

48

LH Threaded Hex. Jam Nut M10

250100016

$0.74

49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

50

Alternator Support

515176252

Unavailable

51

Washer

512059979

Unavailable

52

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

53

Hex. Flange Elastic Nut M10

233201436

$2.11

54

Socket Head Screw M6 X 25

205062544

$1.15

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

Alternator

515175887

Unavailable

57

Belt Alternator

515176040

Unavailable

58

Washer

503175800

$3.28

59

Elastic Flange Nut M10

232501416

$1.48

60

EXHAUST GASKET - Call your local BRP dealership

420950640

Unavailable

61

Hex. Flange Screw M8 X 40

207684044

$1.48

62

Washer

506151252

$3.17

63

Electric Cover Valve

515176152

Unavailable

64

Base

512059957

Unavailable

65

Hex. Screw M6 X 45

207064544

$2.11

66

Flat Washer 6 mm

234061410

$1.36

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Straight Fitting

293710106

Unavailable

69

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

70

Gasket

420630540

Unavailable

71

Hose

508000448

Unavailable

72

Plug

293710108

Unavailable

73

Spring Clamp

293650115

$3.09
