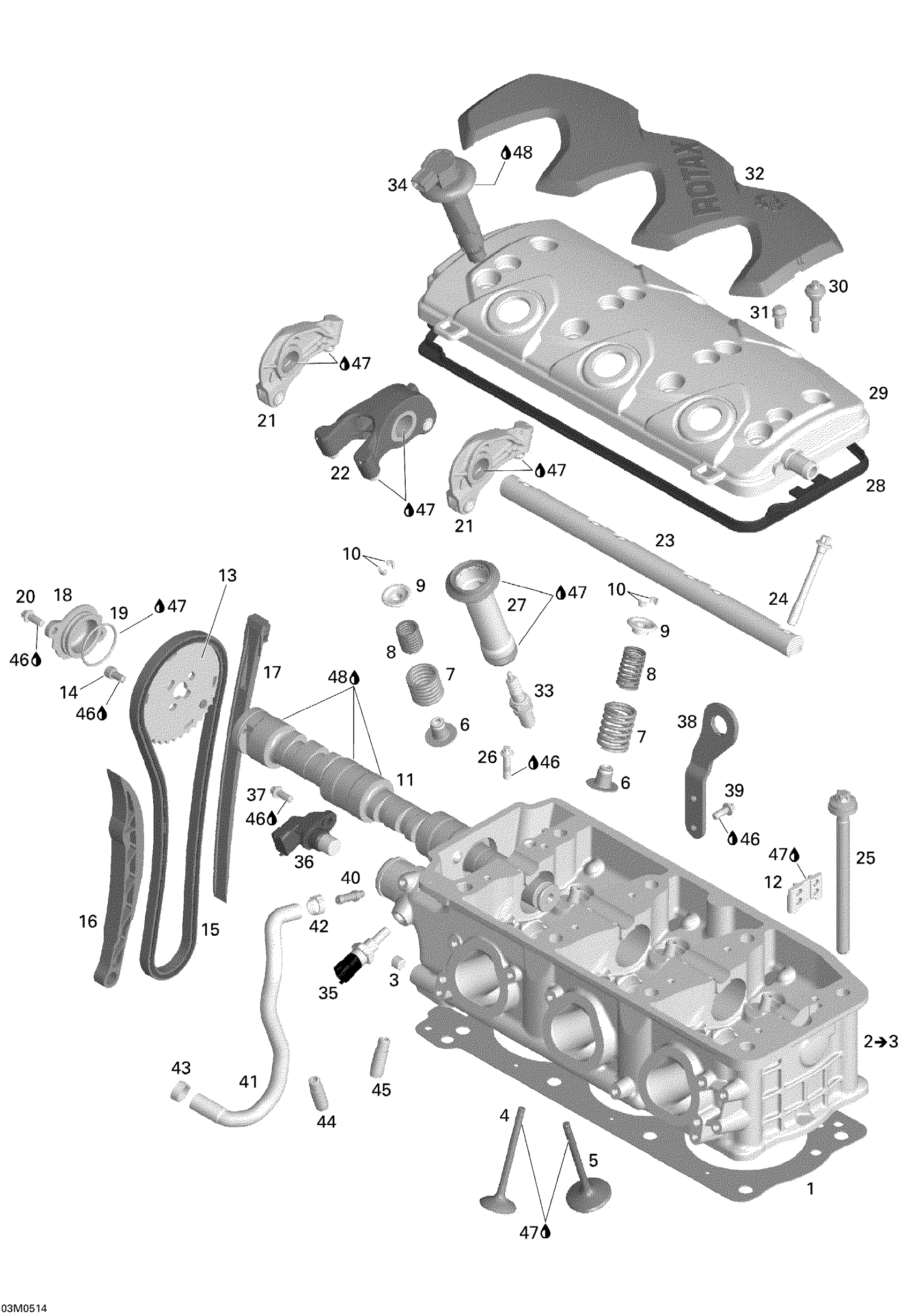

Ski-Doo Elite 1500 2nd Edition, 2004 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$100.72

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$685.07

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Plug Screw M10 X 1

420641323

$11.48

4

Exhaust Valve 31 mm

420254027

$73.42

5

Intake Valve 38MM

420253163

$33.77

6

Valve Steam Seal

420630202

$6.02

7

Valve Spring

420238180

$12.97

8

Valve Spring Inside

420838280

$10.58

9

Valve Spring Retainer

420254283

$7.05

10

Valve Cotter

420253645

$6.11

11

CAMSHAFT - Call your local BRP dealership

420837621

$658.43

12

Camshaft Guide

420851694

$26.62

13

Timing Gear, 38 Teeth

420254309

$57.82

14

Allen Screw M6 X 12

420840032

$3.61

15

Camshaft Chain

420898042

$79.92

16

Chain Tension Guide

420236541

$12.97

17

Chain Guide

420236501

$11.48

18

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

19

O-Ring

420950870

$4.41

20

Torx Flange Screw M6 X 16

420641048

$2.46

21

Rocker Arm, Exhaust

420254329

$112.42

22

Rocker Arm, Inner

420254316

$148.17

23

Rocker Arm Shaft

420854592

Unavailable

24

Torx Screw M8 X 72

420641080

$4.39

25

Torx Flange Screw M11 X 147

420641110

$8.63

26

Torx Flange Screw M6 X 25

420641238

$2.68

27

Spark Plug Pipe

420851754

$22.72

28

Valve Cover Gasket | Included in gasket kit

420950820

$27.27

29

Valve Cover

420811580

Unavailable

30

Allen Screw M6 x 30,5

420440561

$3.67

31

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

$5.62

32

Valve Cover

420660167

$56.89

33

Spark Plug, NGK DCP-R8E

715900637

$5.66

34

Ignition Coil Kit This part replaces 420664020.

296000307

$86.42

35

Temperature Sensor

278002895

$31.82

36

Camshaft Position Sensor Ass'y

420664046

$70.82

37

Torx Flange Screw M6 X 16

420641048

$2.46

38

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

$16.89

39

Torx Flange Screw M6 X 16

420641048

$2.46

40

Hose Nipple

420924724

$12.29

41

FORMED HOSE - Call your local BRP dealership

420822160

$38.43

42

Clamp

420851458

$7.23

43

Oetiker Clamp

293650125

$2.69

44

Valve Guide | Inner diameter machined

420253929

$37.67

45

Valve Guide | Inner diameter machined

420253929

$37.67

46

Loctite 243, 10 ml

293800060

$20.77

47

Synth Oil 4T 12x1

293600054

Unavailable

48

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
