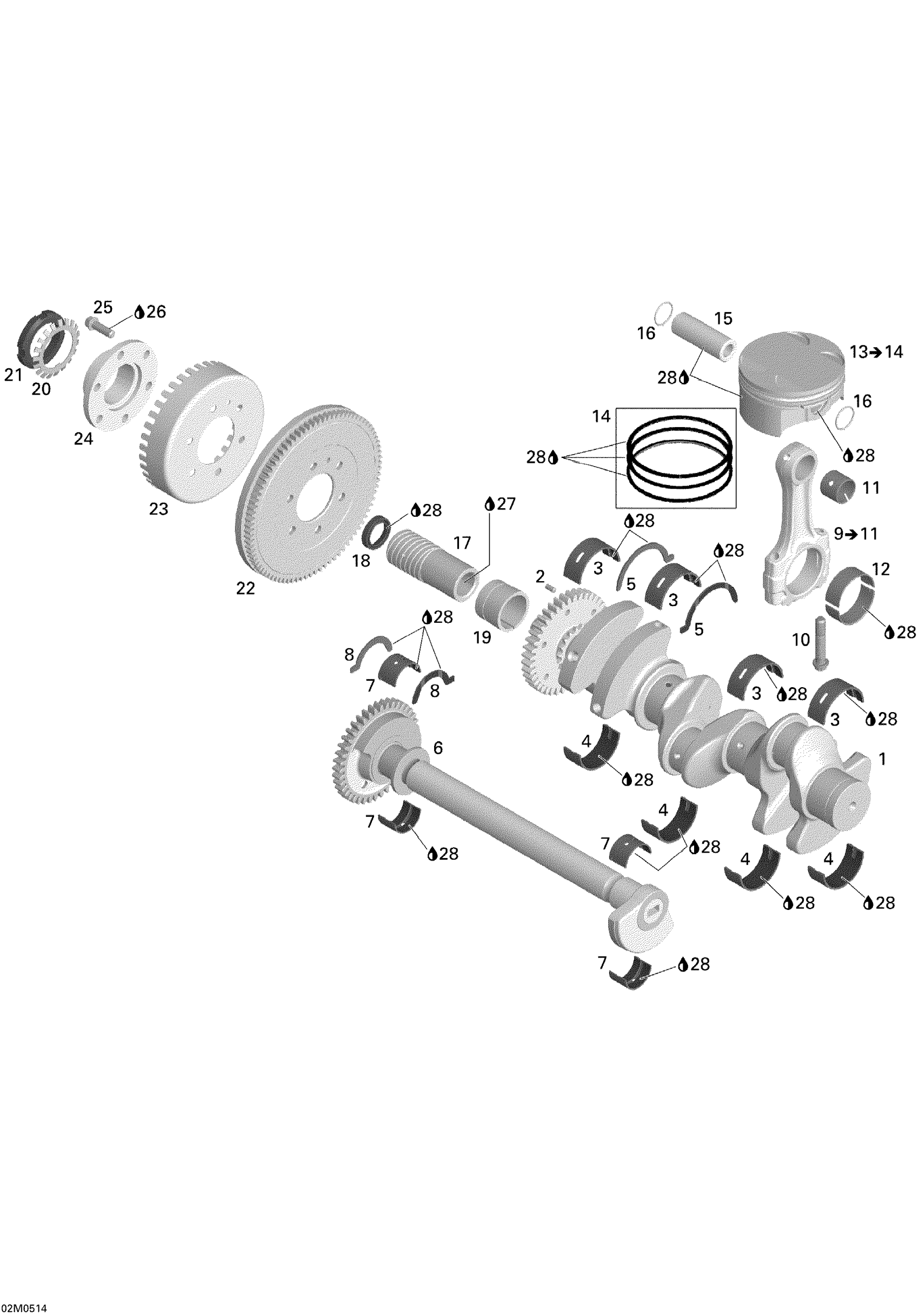

Ski-Doo Elite 1500 2nd Edition, 2004 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

REBUILT - CRANKSHAFT 1503 02 A 05 | Includes 1 to 2 This part replaces 420819078.

421000670

Unavailable

2

Drive Pin 5 X 10

420929650

$1.34

3

Plain Half-Bearing

420933456

$12.10

4

Plain Half-Bearing

420933466

$12.10

5

Half-Ring

420933475

$9.37

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$596.89

7

Plain Bearing Half

420933442

$14.92

8

Half-Ring

420933470

$6.11

9

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

$131.92

10

Connecting rod Screw M10 X 1

420640991

$9.37

11

Bearing Sleeve

420933510

$10.37

12

Half-Bearing

420933523

$14.27

13

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$161.17

13

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

$169.99

14

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$58.47

14

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

Unavailable

15

Piston Pin

420216250

$21.42

16

Circlip

420845580

$2.13

17

Output Sleeve

420847954

Unavailable

18

Sealing Ring

420630551

$12.29

19

Adaptor Sleeve | Includes 19 to 21

420947210

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Starter Gear, 86 Teeth

420835163

$285.35

23

PICK UP GEAR, 36 TEETH - Call your local BRP dealership

420664081

$27.66

24

COUPLING FLANGE - Call your local BRP dealership

420959280

$139.97

25

Torx Flange Screw M8 X 25

420440372

$4.00

26

Loctite 243, 10 ml

293800060

$20.77

27

Sealant Loctite 648

219703000

$35.72

28

Synth Oil 4T 12x1

293600054

Unavailable
