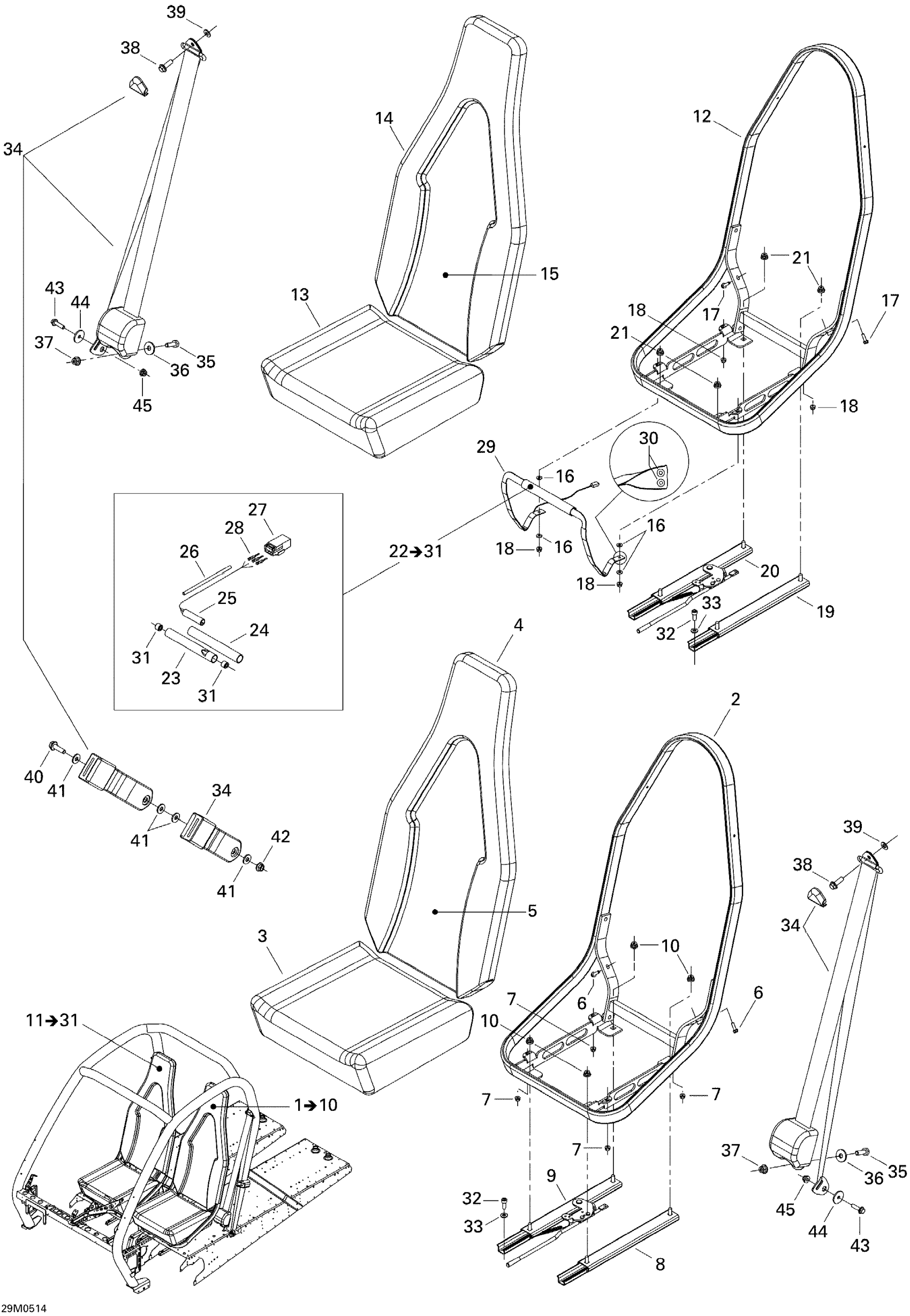

Ski-Doo Elite 1500 1st Edition, 2004 09- Seat Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Frame

510004184

Unavailable

3

Cushion Ass'y

510004185

Unavailable

4

Backrest Ass'y

510004186

Unavailable

5

Cover Backrest

510004271

Unavailable

6

Hexagonal Head Screw

210262050

$2.11

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

LH Rail

510004601

Unavailable

9

RH Rail

510004272

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Seat Frame

510004184

Unavailable

13

Cushion Ass'y

510004343

Unavailable

14

Backrest Ass'y

510004186

Unavailable

15

Cover Backrest

510004271

Unavailable

16

Flat Washer

224061121

$0.53

17

Hexagonal Head Screw

210262050

$2.11

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

LH Rail

510004601

Unavailable

20

RH Rail

510004272

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Handle Ass'y | Includes 22 to 31

510004345

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

27

Male Housing, 3 Circuits

515175494

$16.18

28

Male Terminal

515175232

$1.58

29

Strap

510004454

Unavailable

30

Eyelet

510004455

Unavailable

31

Stopper

510004456

Unavailable

32

Scotch Grip Socket Screw M8 X 20

205582044

$2.64

33

Flat Washer 8 mm

234081410

$0.83

34

Safety Belt

510004240

Unavailable

35

Hex. Screw M10 X 30

207103044

$1.48

36

WASHER - Call your local BRP dealership

512059057

Unavailable

37

Hex. Flange Elastic Nut M10

233201414

$1.58

38

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

39

Flat Washer 10 mm

234001410

$1.26

40

Hex. Flange Screw M10 X 35

207503544

$7.31

41

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

42

Hex. Flange Nut M10

233101414

$4.97

43

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

44

WASHER - Call your local BRP dealership

517078700

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

$1.47
