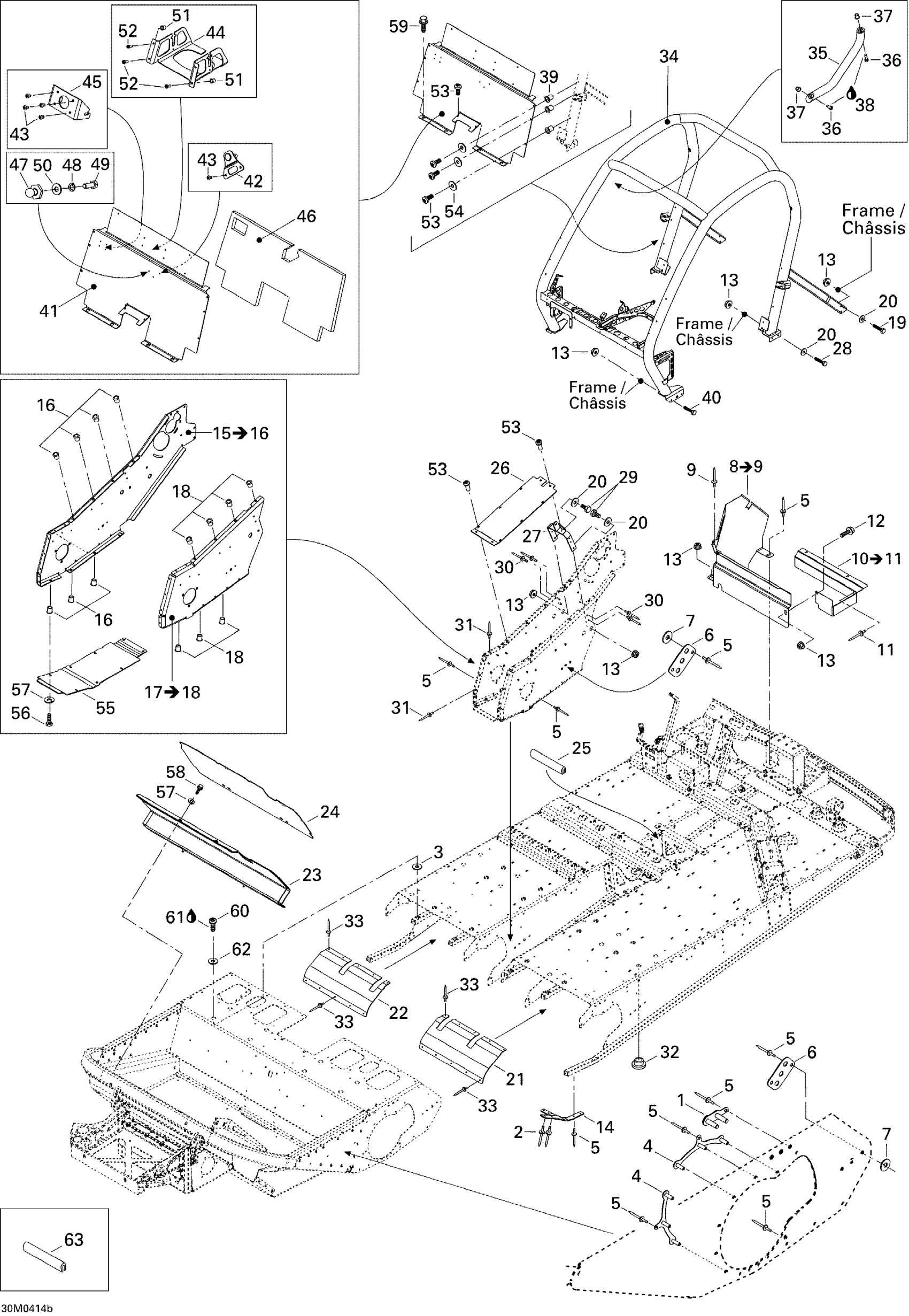

Ski-Doo Elite 1500 1st Edition, 2004 09- Frame - Accessories Diagram

#

Description
Price

1

Support

518323837

Unavailable

2

Pop Rivet 3/16"

390402300

$0.75

3

Washer

503189273

$3.28

4

Spacer

518323673

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Heat Deflector | Includes 8 To 9

518324277

Unavailable

9

Pop Rivet 3/16"

390402400

$0.35

10

Deflector | Includes 10 To 11

514053939

Unavailable

11

Pop Rivet 3/16"

390402400

$0.35

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Junction Plate RH

518323783

Unavailable

Junction Plate LH

518323784

Unavailable

15

Front Reinforcement RH | Includes 15 To 16

518323776

Unavailable

16

Insert

293450275

$12.99

17

Front Reinforcement LH | Includes 17 To 18

518323777

Unavailable

18

Insert

293450275

$12.99

19

Hex. Flange Screw M8 X 45

207684544

$3.80

20

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

21

Deflector LH

518323909

Unavailable

22

Deflector RH

518323910

Unavailable

23

Footrest

518323941

Unavailable

24

Footrest Carpet

518324270

Unavailable

25

Black Trim

517303385

Unavailable

26

Belt Guard

518324128

Unavailable

27

Belt Support

518323795

Unavailable

28

Hex. Flange Screw M8 X 25

207682544

$1.35

29

Hex. Screw M8 X 30

207183044

$1.15

30

Hemlock Rivet 6.5 mm

293150120

$7.41

31

Rivet 3/16"

293150126

Unavailable

32

Plastic Cap

518323977

Unavailable

33

Rivet 3/16"

293150102

$0.70

34

Upper Frame

518323668

Unavailable

35

Handle

518324227

Unavailable

36

Socket Head Screw M6 X 20

205062044

$1.26

37

Insert

293450275

$12.99

38

Loctite 243, 10 ml

293800060

$21.49

39

Insert

293450275

$12.99

40

Hex. Flange Screw M8 X 50

207685044

$1.69

41

Lateral Reinforcement

518324023

Unavailable

42

Welded Plate

518323685

Unavailable

43

Rivet 3/16"

293150102

$0.70

44

Coolant Tank Support

518323700

Unavailable

45

Front Belt Guard Support

518323661

Unavailable

46

Isolating Foam

518323852

Unavailable

47

Knob

517245800

$11.12

48

Lock Washer 5 mm | Europe

234151401

$0.55

49

Hex. Screw M5 X 14

207151444

$0.87

50

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

51

Insert

293450275

$12.99

52

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

53

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

54

Washer M6

250200029

$2.50

55

Center Junction Plate

518322981

Unavailable

56

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

57

Lock Washer M6, Black

234161471

$0.53

58

Hex. Flange Screw M6 X 16

207661644

$0.74

59

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

60

Socket Screw M8 X 10

205481046

Unavailable

61

Loctite 271, 10 ml

293800005

$26.99

62

Flat Washer 8 mm, Stainless

234082600

$2.43

63

Black Trim

517303385

Unavailable
