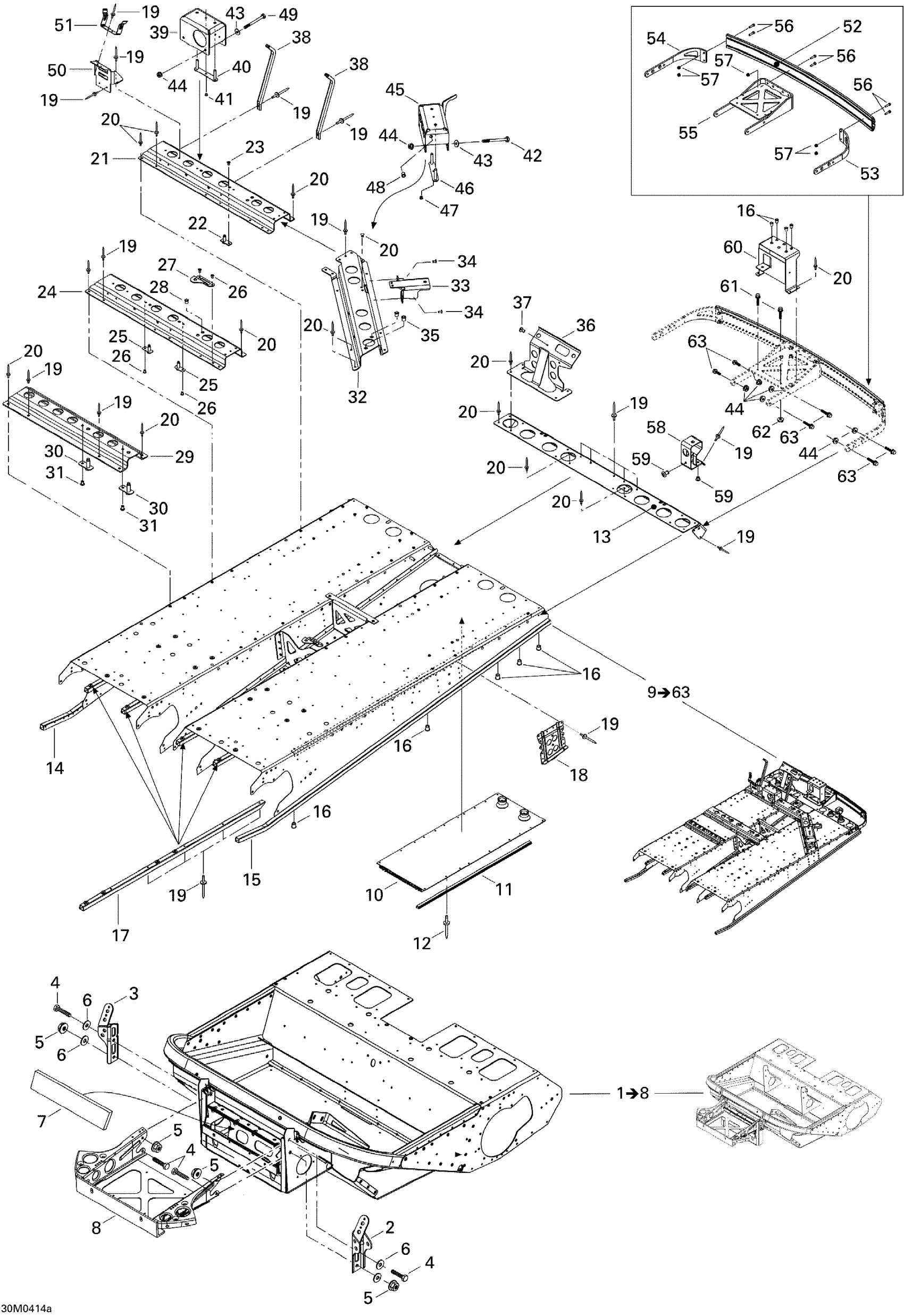

Ski-Doo Elite 1500 1st Edition, 2004 09- Frame Diagram

#

Description
Price

1

Front Member Ass'y | Includes 1 To 8

518323127

Unavailable

2

Shock Bracket LH

518323072

Unavailable

3

Shock Bracket RH

518323071

Unavailable

4

Hex. Screw M8 X 50

207085044

$1.48

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Washer

506151245

$0.93

7

Seal

518324371

Unavailable

8

Front Bumper Attachment

518323839

Unavailable

9

Tunnel Ass'y | Includes 9 To 63

518323106

Unavailable

10

Rear Radiator

518323402

Unavailable

11

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

12

Pop Rivet 3/16"

390402200

$0.35

13

Rear Cap

518322984

Unavailable

14

Tunnel Reinforcement RH

518323076

Unavailable

15

Tunnel Reinforcement LH

518323077

Unavailable

16

Insert

293450275

$12.99

17

Tunnel Protector

518323866

Unavailable

18

Rear Bracket RH

518323109

Unavailable

Rear Bracket LH

518323111

Unavailable

19

Pop Rivet 3/16"

390402200

$0.35

20

Pop Rivet 3/16"

390402300

$0.75

21

Frame Tunnel Rear Member

518323116

Unavailable

22

Seat Bracket

518323321

Unavailable

23

Pop Rivet 3/16"

390402200

$0.35

24

Frame Tunnel Rear Member

518323116

Unavailable

25

Seat Bracket

518323321

Unavailable

26

Pop Rivet 3/16"

390402200

$0.35

27

Welded Plate

518323680

Unavailable

28

Insert

293450275

$12.99

29

Frame Tunnel Front Member

518323641

Unavailable

30

Seat Bracket

518323321

Unavailable

31

Pop Rivet 3/16"

390402200

$0.35

32

Frame Tunnel Angle Member

518323562

Unavailable

33

Exhaust Support

518323702

Unavailable

34

Pop Rivet 3/16"

390402200

$0.35

35

Insert

293450275

$12.99

36

Radiator Lower Support

518323859

Unavailable

37

Pop Rivet 3/16"

390402200

$0.35

38

Radiator Upper Support

518323864

Unavailable

39

Engine Support RH

518323287

Unavailable

40

Fixation Plate

518323288

Unavailable

41

Pop Rivet 3/16"

390402200

$0.35

42

Hex. Screw M8 X 90

207089044

$3.48

43

Flat Washer 8 mm

234082410

$1.47

44

Hex. Flange Elastic Nut M8

233281414

$1.47

45

Engine Support LH

518323305

Unavailable

46

Fixation Plate

518323288

Unavailable

47

Pop Rivet 3/16"

390402200

$0.35

48

Insert

293450275

$12.99

49

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

50

Belt Guard Rear Support

518323662

Unavailable

51

Belt Guard Bracket

518202100

$17.49

52

Rear Bumper

518323118

Unavailable

53

Plate Bracket LH

518323119

Unavailable

54

Plate Bracket RH

518323496

Unavailable

55

Center Bracket

518324342

Unavailable

56

Hex. Screw M6 X 25

207162548

Unavailable

57

Hex. Flange Elastic Nut M6

233261494

$1.58

58

Muffler Support LH

518323872

Unavailable

59

Pop Rivet 3/16"

390402200

$0.35

60

Muffler Support

518324343

Unavailable

61

Hex. Flange Screw M6 X 20

207662044

$2.00

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

63

Hex. Flange Screw M8 X 25

207682544

$1.35
