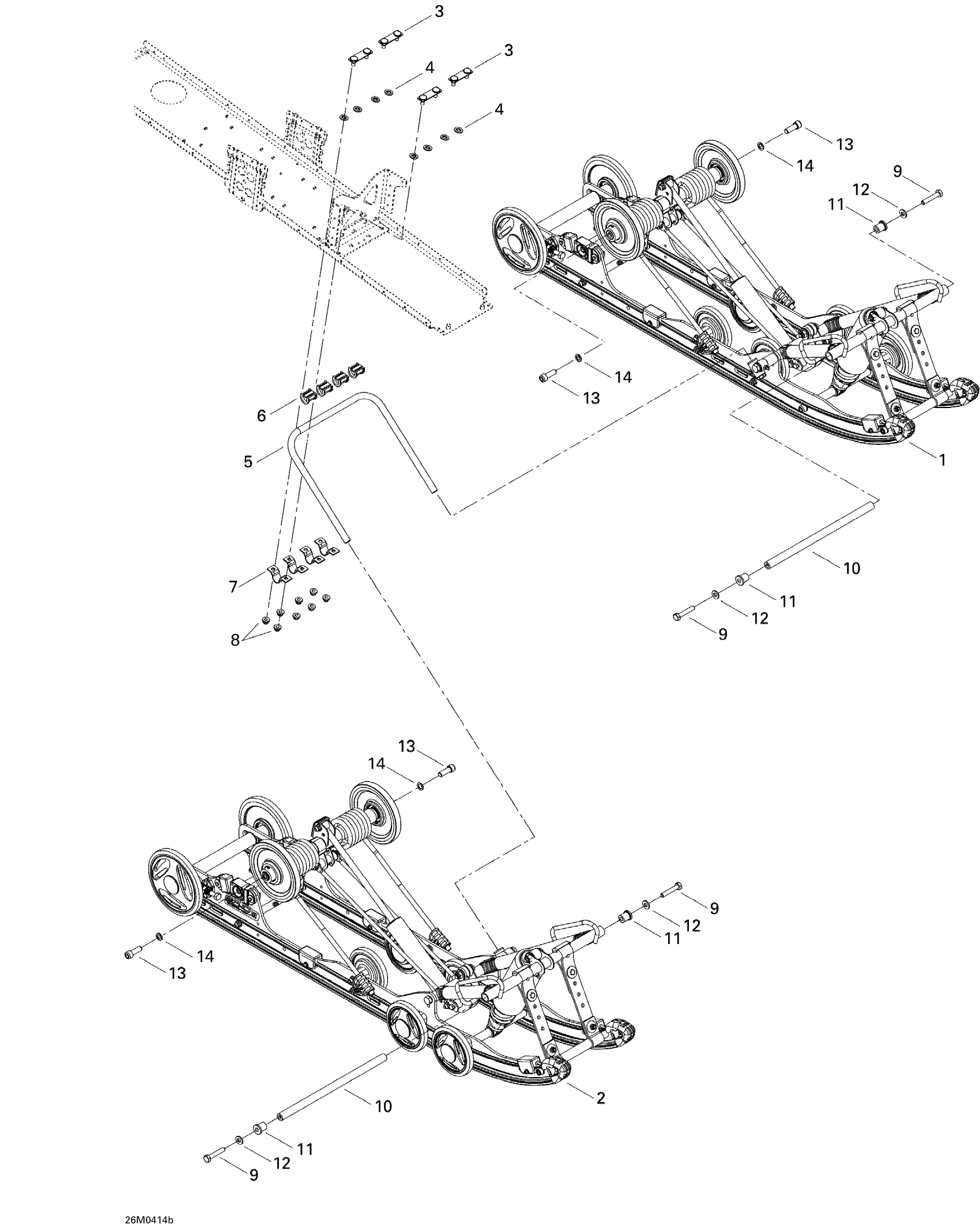

Ski-Doo Elite 1500 1st Edition, 2004 Rear suspension - System Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Plate

503109100

Unavailable

4

Push Nut

250100046

$2.09

5

Stabilizing Bar

503190540

Unavailable

6

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

7

CLAMP - Call your local BRP dealership

506095800

$5.45

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

10

SHAFT - Call your local BRP dealership

503190387

Unavailable

11

Bushing

503189324

$11.17

12

Washer

732900049

$0.57

13

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

14

Washer

503189276

$3.20
