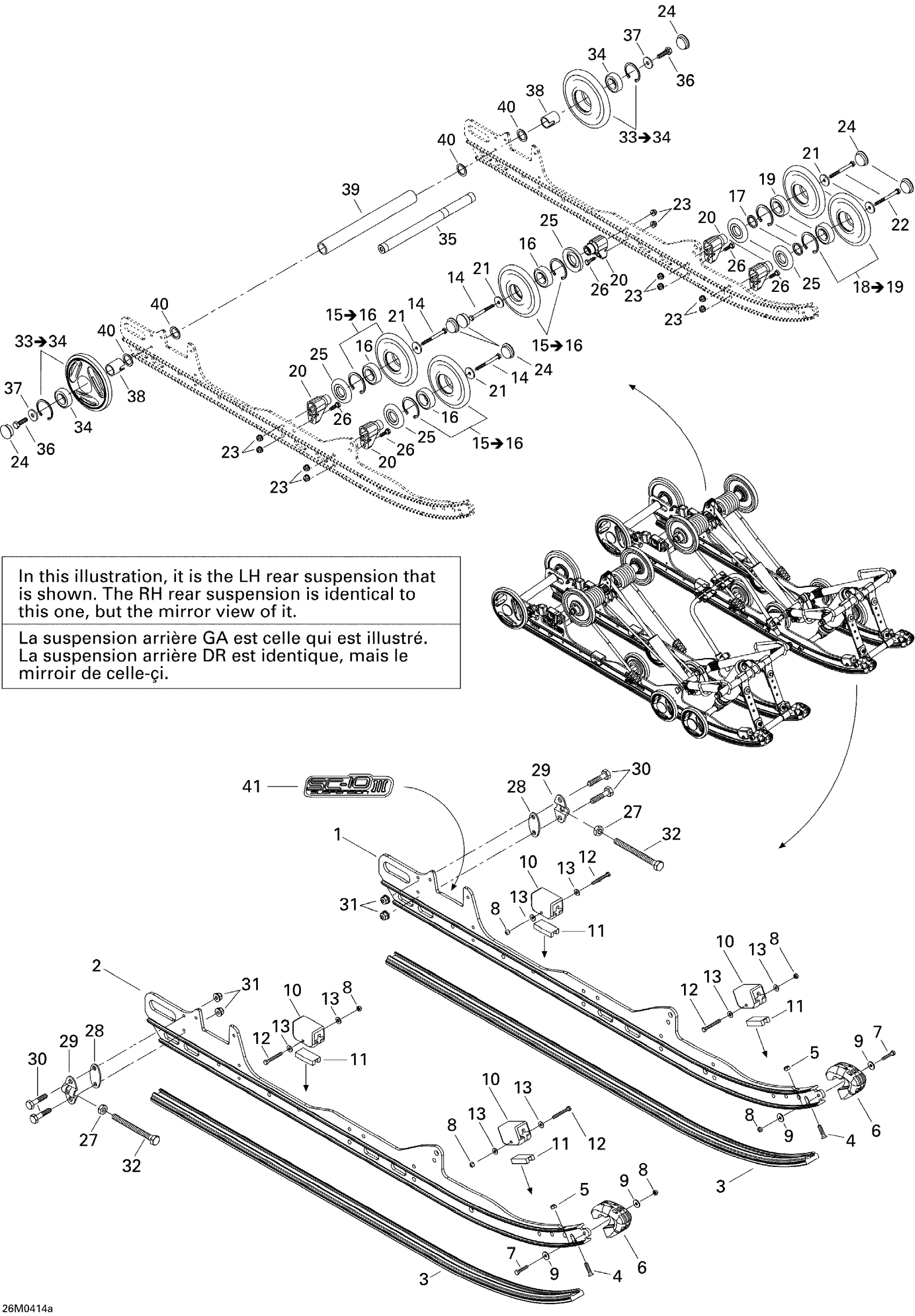

Ski-Doo Elite 1500 1st Edition, 2004 08- Rear suspension Diagram

#

Description
Price

1

Runner | SE

503190266

Unavailable

2

Inside Runner

503190651

Unavailable

3

Slide Shoe

605355362

$29.49

4

Phillips Screw M6 X 25

208562560

$2.32

5

Elastic Stop Nut M6

232561414

$0.55

6

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

7

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

8

Elastic Stop Nut M5

232551414

$0.87

9

Washer | DS 650 X

391301600

$0.48

10

Rubber Stopper

570063000

Unavailable

11

Reinforcement Stopper

572084800

$12.99

12

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

13

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

14

Hex. Screw M8 X 80

207088044

$1.68

15

Wheel 139 mm Ass'y

503190798

$33.99

16

Ball Bearing

293350115

$12.11

17

WASHER - Call your local BRP dealership

503173700

Unavailable

18

Wheel 139 Ass’Y, Full Moon | Includes items 18 to 19

503190211

Unavailable

19

Ball Bearing

293350115

$12.11

20

SUPPORT - Call your local BRP dealership

503190389

Unavailable

21

Washer

503183100

$3.17

22

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Wheel Cap

570063600

$3.49

25

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

26

Hex. Screw M8 X 25

207182544

$0.90

27

Elastic Locking Nut M10 X 1.5

233601416

$1.69

28

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

29

Tensioner

503155300

Unavailable

30

Hex. Screw M6 X 30

207063044

$1.26

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

33

Wheel 180 Ass’Y, Full Moon | Includes items 33 to 34

503190254

Unavailable

34

Ball Bearing

293350115

$12.11

35

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

36

Hex. Screw With Nylon

250000019

$1.69

37

Washer

503183300

$5.82

38

Outer Spacer

503189809

$18.89

39

SPACER - Call your local BRP dealership

503188941

Unavailable

40

Washer

503180400

$3.49

41

Suspension Decal

516001248

Unavailable
