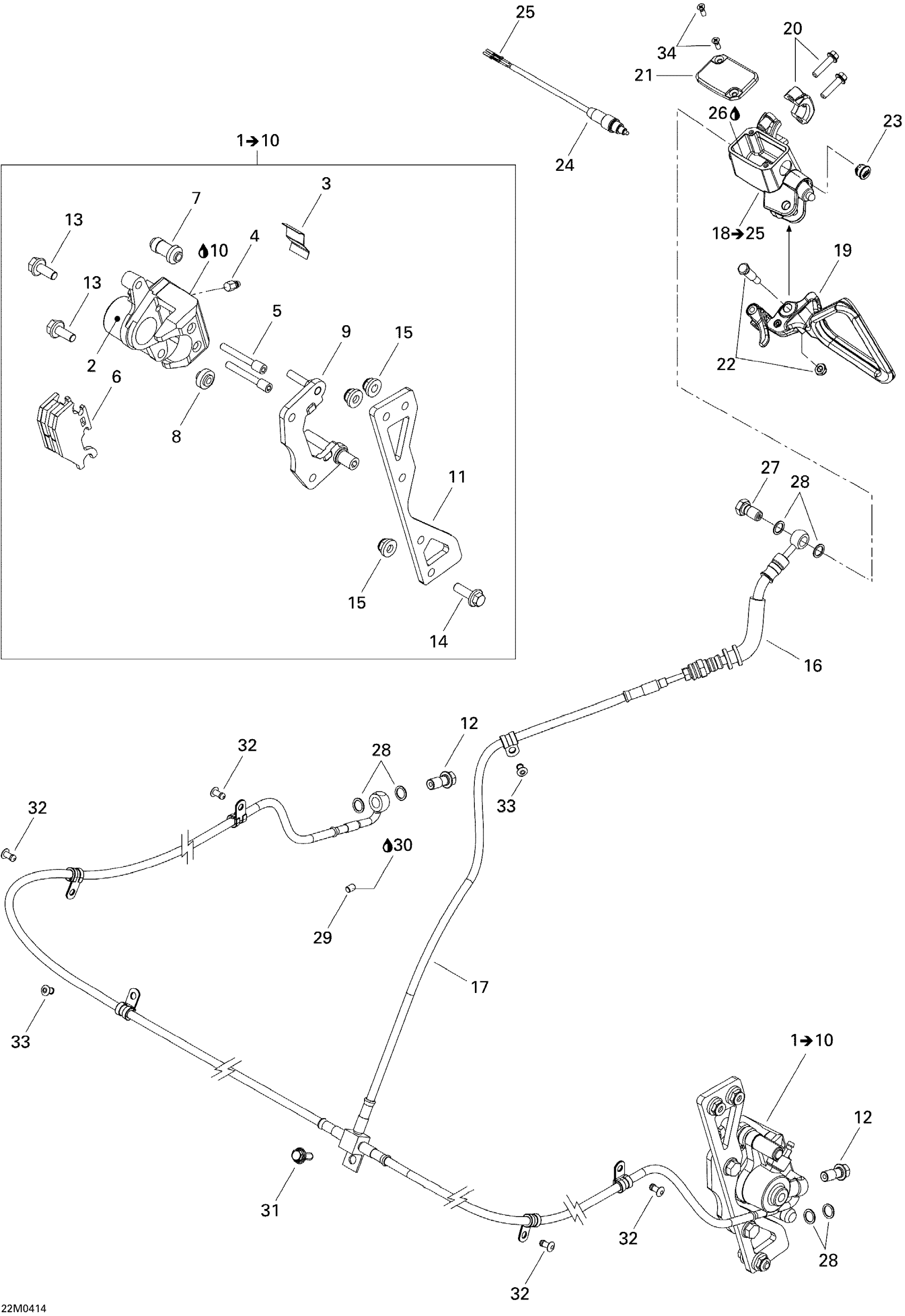

Ski-Doo Elite 1500 1st Edition, 2004 Hydraulic Brake Diagram

#

Description
Price

1

LH Caliper | Includes 1 to 10

507032367

Unavailable

1

RH Caliper

507032369

Unavailable

2

Piston Set

705600294

Unavailable

3

Spring

705600079

$14.37

4

Bleeding Screw

705600080

$15.22

5

Pin Set (2)

705600081

$19.20

6

Brake Pad Kit

705600014

$49.39

6

Brake Pad Kit

705600004

$49.97

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

9

RH Caliper Support

705600299

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Brake Support

507032368

Unavailable

12

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

14

Hex. Flange Screw M8 X 25

207682544

$0.90

15

Hex. Flange Elastic Nut M8

233281414

$1.14

16

Brake Hose

705600071

Unavailable

17

LH Front Hose Ass'y

507032371

Unavailable

18

Master Cylinder | Includes 18 to 25

507032370

Unavailable

19

Lever Ass'y

507032406

Unavailable

20

Clamp And Screw Kit

507032477

$23.05

21

Cap

415029900

$41.51

22

Pin Ass'y

415030000

$17.66

23

WINDOW - Call your local BRP dealership

414990600

Unavailable

24

Microswitch

507032366

$104.58

25

Male Terminal

515175232

$1.49

26

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

26

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

27

Banjo Bolt

414920500

$8.49

28

Washer

414920600

$1.52

29

Socket Set Screw M8 X 10

414440800

$4.00

30

Loctite 271, 10 ml

293800005

$20.77

31

Hex. Flange Screw M6 X 16

207661644

$0.61

32

Avex Rivet

390909100

$0.29

33

Pop Rivet 3/16"

390402200

$0.26
