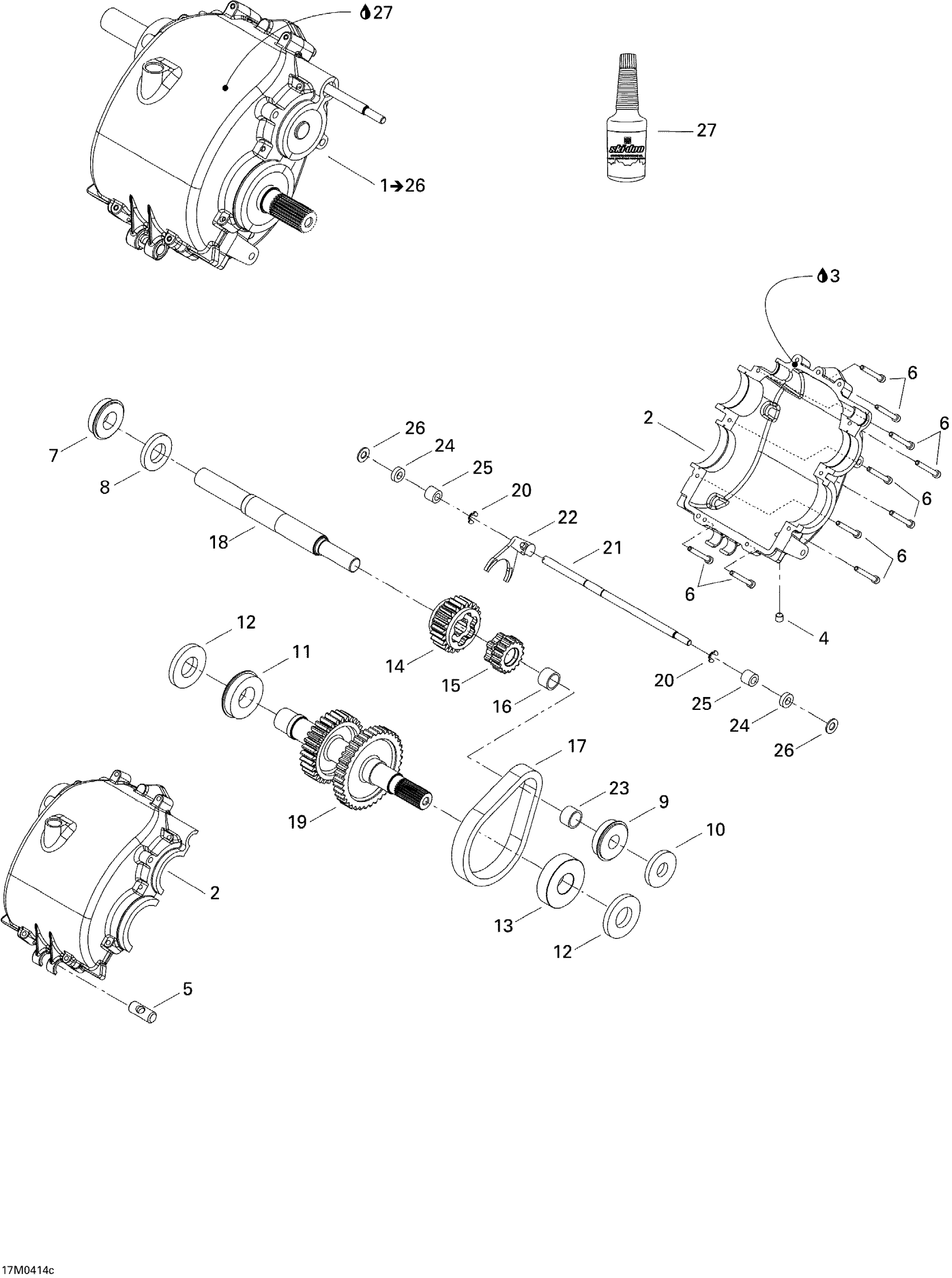

Ski-Doo Elite 1500 1st Edition, 2004 05- Transmission Assy Diagram
#
Description
Price
1
Transmission Ass'y | Includes items 1 to 26
504152116
Unavailable
2
Transmission Housing Ass'y
504152206
Unavailable
5
Stopper
504152334
Unavailable
6
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065044
Unavailable
7
BALL BEARING - Call your local BRP dealership
293350046
Unavailable
8
Oil Seal
293200083
Unavailable
9
Ball Bearing
504152133
Unavailable
10
Ring
504152134
Unavailable
11
BALL BEARING - Call your local BRP dealership
293350047
Unavailable
12
OIL SEAL - Call your local BRP dealership
293200084
Unavailable
13
Ball Bearing
504152349
Unavailable
14
Gear 23 Teeth
504152395
Unavailable
15
Gear 17 Teeth
504152142
Unavailable
16
Needle Bearing
504152143
Unavailable
17
Silent Chain Type L/A 46 Links
504152145
Unavailable
18
Input Shaft
504152146
Unavailable
19
Output Shaft
504152396
Unavailable
20
Circlip
504152397
Unavailable
21
Fork Shaft
504152148
Unavailable
22
Shift Fork
420257230
Unavailable
23
Spacer
504152151
Unavailable
24
O-Ring
504152329
Unavailable
25
Bushing
504152225
Unavailable
27
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
