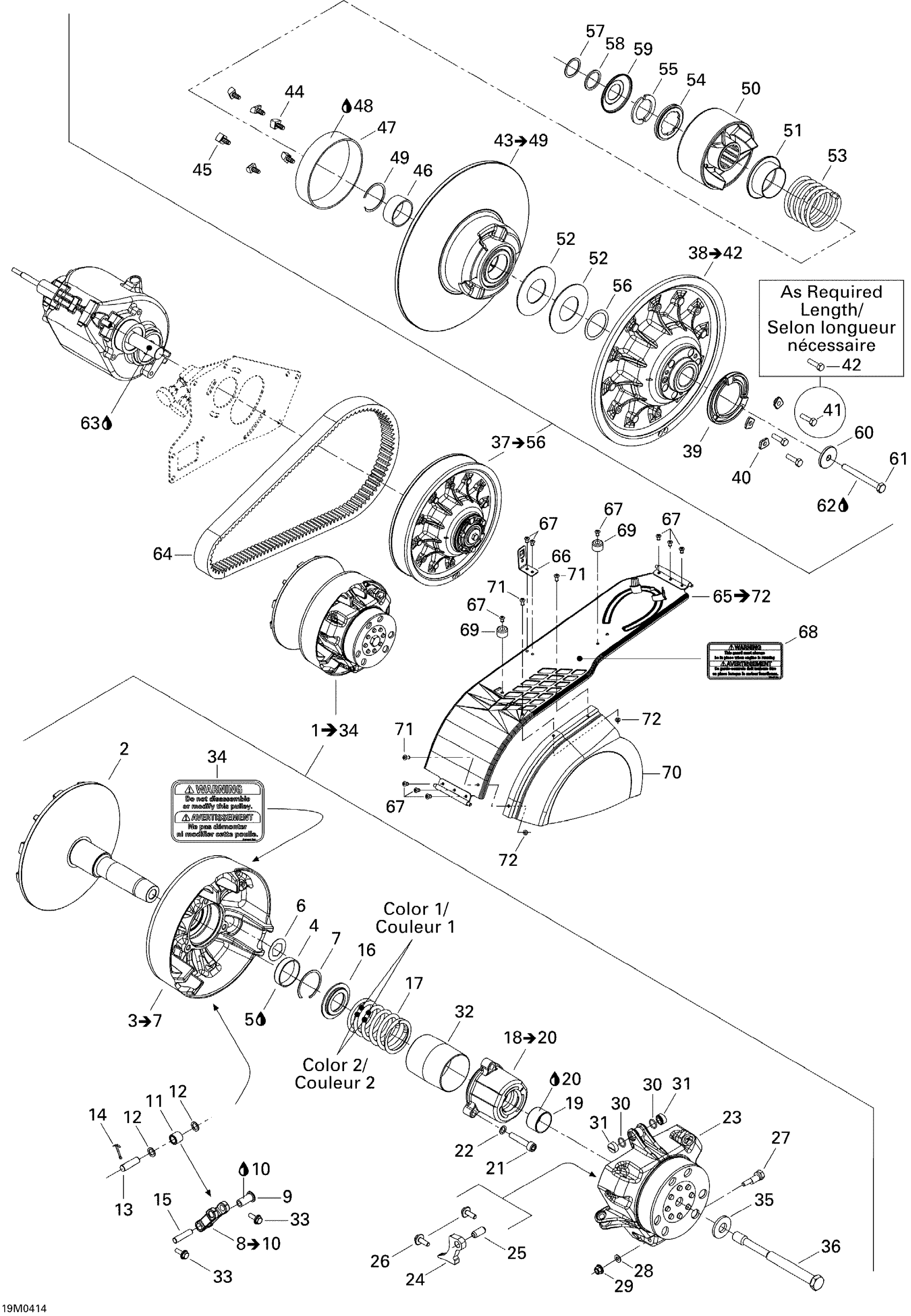

Ski-Doo Elite 1500 1st Edition, 2004 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222593

Unavailable

3

Sliding Flange Ass'y

417223093

$313.40

4

Bushing

417222758

$20.12

5

Loctite 609, 10 ml

413703100

$23.85

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Circlip

293370037

$2.93

8

Lever Ass'y | Includes 8 to 10

417222647

Unavailable

9

Bushing

417222633

Unavailable

10

Loctite 609, 10 ml

413703100

$23.85

11

Roller

417222947

$19.37

12

Stopper Washer

417004302

$15.64

13

Pin

417004308

$12.79

14

Cotter Pin

250400060

$1.60

15

Lever Axle

417223164

$4.12

16

Spring Seat

417222312

$8.03

17

CLUTCH SPRING, YELLOW/YELLOW - Call your local BRP dealership

414748600

Unavailable

18

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.22

19

Bushing

417009204

$15.64

20

Loctite 609, 10 ml

413703100

$23.85

21

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

22

Lock Washer 8 mm

250200009

$2.00

23

Governor Cup Ass'y

417222640

Unavailable

24

Rampe 609

417222696

Unavailable

25

Spring Pin M10 X 22

250400050

$2.38

26

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

27

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

28

Washer

417005600

$3.75

29

Hex. Flange Nut M6

233061414

$1.34

30

O-Ring

732401030

$0.93

31

Slider Shoe This part replaces 420460045.

417223021

$5.99

32

Guard

417009205

$16.39

33

Serrated Hex. Flange Bolt M6

250000416

$4.00

34

Security Label

516001726

Unavailable

35

Spring Washer 14 mm

250200006

$5.80

36

Drive Pulley Bolt

417300258

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

39

Adjustment Ring

415005800

Unavailable

40

Adjustment Shim

415005900

Unavailable

41

Hex. Screw M6 X 25

207162544

$1.01

42

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

43

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

44

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

45

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.18

46

Not Available As Spare Part - Friction Washer

Unavailable

47

BUSHING - Call your local BRP dealership

417126902

Unavailable

48

Loctite 609, 10 ml

413703100

$23.85

49

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

50

Cam

417126843

Unavailable

51

GUARD - Call your local BRP dealership

415006000

Unavailable

52

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

53

Release Spring

417126877

Unavailable

54

SPACER - Call your local BRP dealership

417126733

Unavailable

55

HALF KEY - Call your local BRP dealership

417126734

Unavailable

56

SHIM - Call your local BRP dealership

504112300

Unavailable

57

Spacer

417300265

$2.06

58

Spacer

417300252

$5.01

59

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

60

Strength Washer

517302322

$10.76

61

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

62

Loctite 243, 10 ml

293800060

$20.77

63

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

64

DRIVE BELT - Call your local BRP dealership

417300207

Unavailable

65

Belt Guard Ass'y | Includes 65 to 72

417300206

Unavailable

66

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

67

Pop Rivet 3/16"

390402200

$0.26

68

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

69

Rubber Stopper

293830043

Unavailable

70

Not Available As Spare Part - Friction Washer

Unavailable

71

Pop Rivet 3/16"

390402300

$0.73

72

Flat Washer M5

234051410
