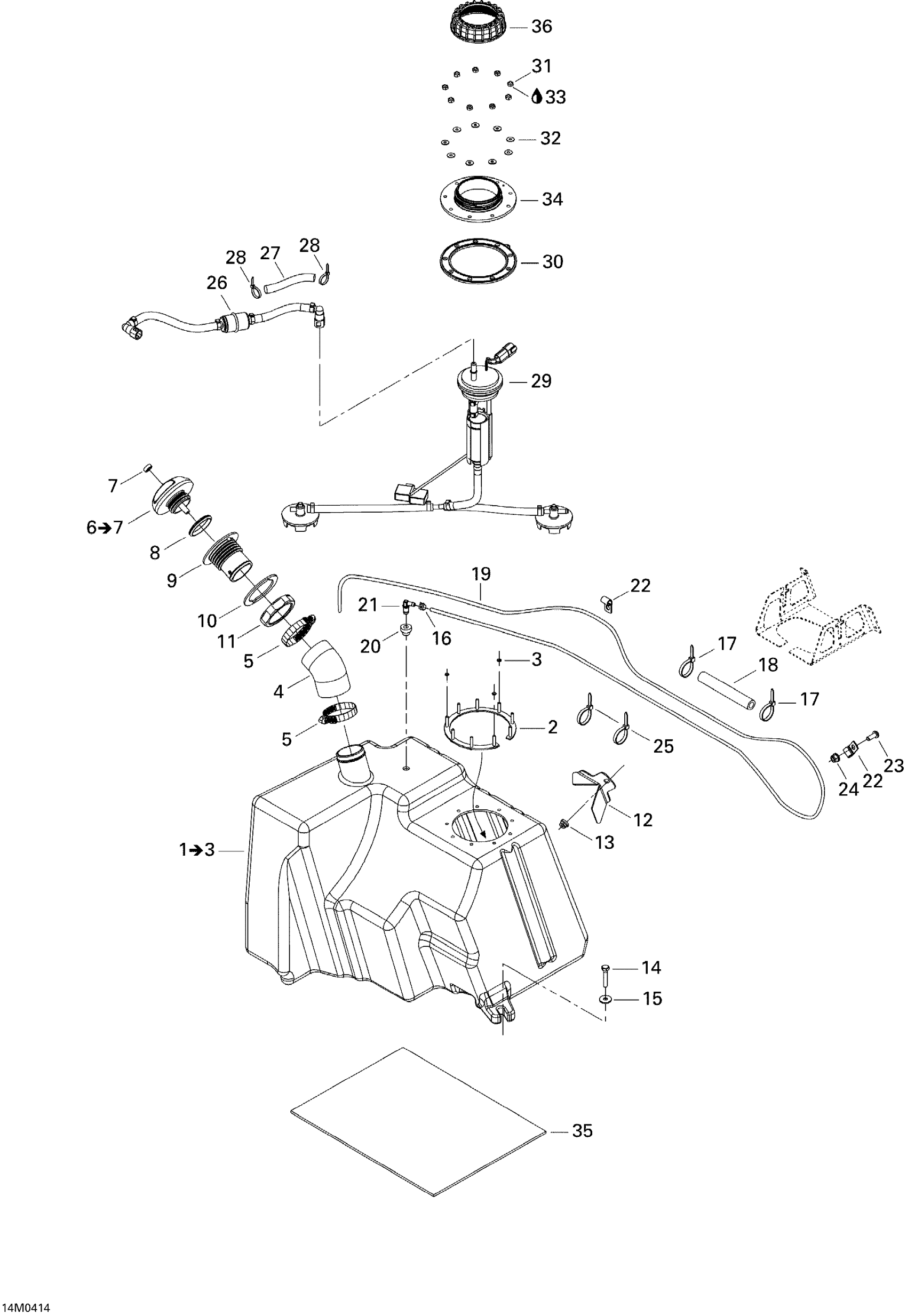

Ski-Doo Elite 1500 1st Edition, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 3

513033051

Unavailable

2

C-Ring, 9 Studs

275500679

$73.10

3

Push Nut

389804300

$0.43

4

Hose Filler Neck, Fuel

513033052

Unavailable

5

Tridon Clamp

293650023

$11.37

6

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

7

Black, Snap Cap

293000034

$7.48

8

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

9

Filler Neck, Fuel

275500231

$12.40

10

Gasket

293250029

$12.06

11

Filler Neck Nut, Fuel

211100012

$10.02

12

Tank Support, Fuel

513033113

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Hex. Screw M8 X 35

207083544

$0.92

15

Flat Washer 8 mm

234082410

$1.11

16

Spring Clamp

414554800

$0.81

17

Tie-Rap 180 mm

414115200

$0.09

18

Tubing 16 Mm 1000Mm Long

219704408

$6.23

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

20

Grommet

513032908

$8.48

21

Male Connector

414580700

$3.38

22

Open Clamp

414176000

$1.81

23

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

Tie-Rap 180 mm

414115200

$0.09

26

Fuel Filter Ass'y

513033116

Unavailable

27

Tubing 16 Mm 1000Mm Long

219704408

$6.23

28

Tie Wrap 142 mm

293750002

$0.88

29

Fuel Pump Module

513033115

Unavailable

30

Gasket

293250088

$10.95

31

Hex. Flange Nut M5

250100071

$1.77

32

Rubber Washer

291001956

Unavailable

33

Loctite 243, 10 ml

293800060

$20.77

34

Adapter

513033114

Unavailable

35

Rubber Pad, Fuel

293830104

Unavailable

36

Nut, Fuel Pump Module

513033040

$26.84
