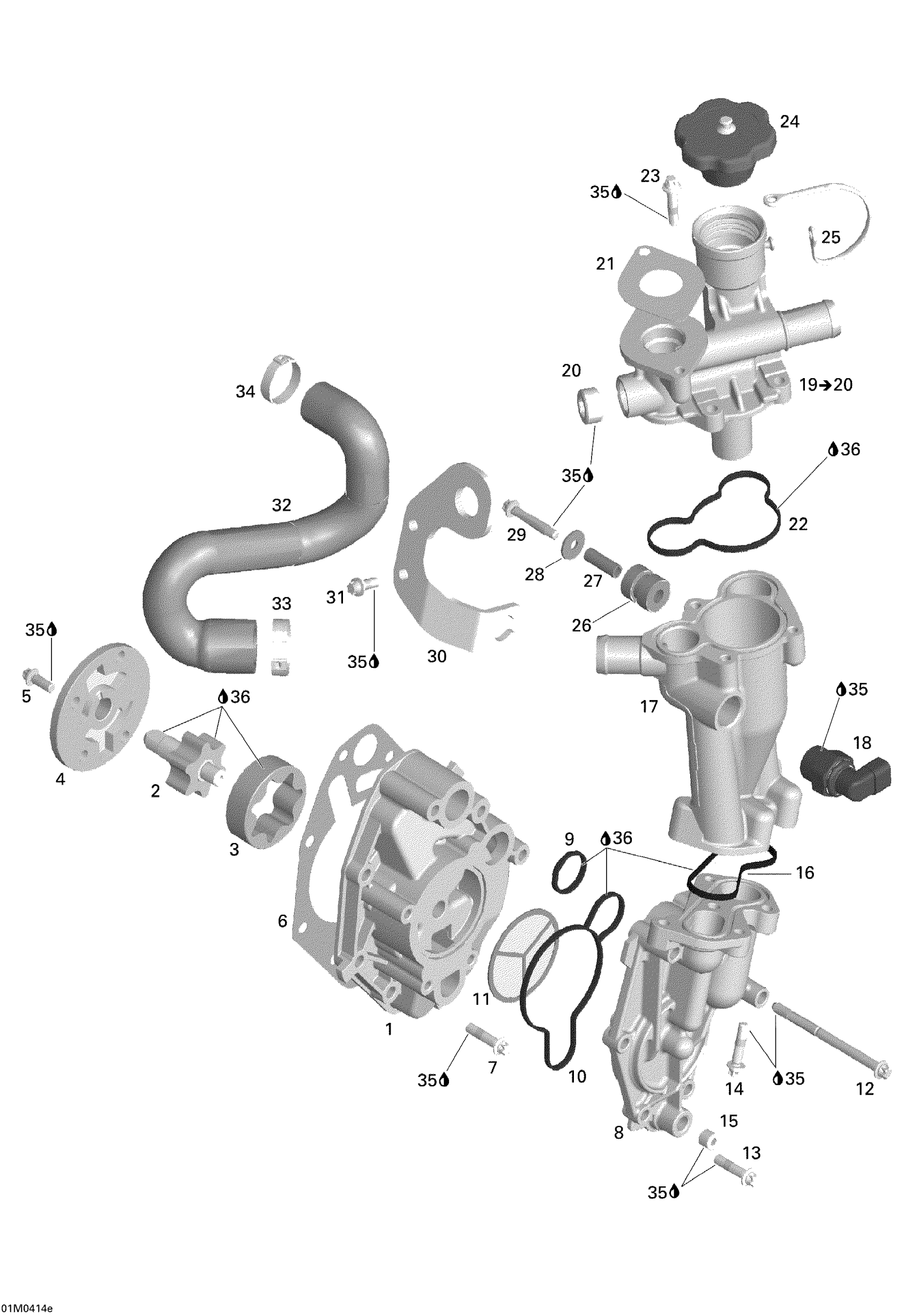

Ski-Doo Elite 1500 1st Edition, 2004 Oil Separator Diagram

#

Description
Price

1

OIL PUMP HOUSING - Call your local BRP dealership

420811840

Unavailable

2

PUMP SHAFT ASS'Y - Call your local BRP dealership

420837542

Unavailable

3

Oil Pump Rotor 16 mm

420956675

$29.22

4

Oil Pump Cover

420811851

$27.27

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

Gasket

420950970

Unavailable

7

Torx Flange Screw M6 X 25

420641238

$2.68

8

OIL SIEVE COVER - Call your local BRP dealership

420811892

Unavailable

9

SEAL RING - Call your local BRP dealership

420630240

Unavailable

10

GASKET - Call your local BRP dealership

420950850

Unavailable

11

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

12

Torx Flange Screw M6 X 85

420641228

$6.11

13

Torx Flange Screw M6 X 25

420641238

$2.68

14

Torx Flange Screw M6 X 25

420641238

$2.68

15

Plug Screw M10 X 1

420641323

$11.48

16

GASKET - Call your local BRP dealership

420630231

Unavailable

17

OIL SEPARATOR HOUSING - Call your local BRP dealership

420956761

Unavailable

18

Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.

420256886

$40.92

19

OIL SEPARATOR COVER - Call your local BRP dealership

420811962

Unavailable

20

Plug Screw M20 X 1.5

420641317

$10.58

21

Gasket

420630540

Unavailable

22

GASKET - Call your local BRP dealership

420630220

Unavailable

23

Torx Flange Screw M6 X 25

420641238

$2.68

24

Plug Cover, Yellow

420956923

$19.47

25

Retaining Band

420660620

$6.11

26

Rubber Bracket

420660090

$3.38

27

SPACER - Call your local BRP dealership

420847970

Unavailable

28

Flat Washer M6

420827968

$1.56

29

Torx Flange Screw M6 X 35

420641258

$2.78

30

FRONT TRANSPORT BRACKET - Call your local BRP dealership

420851610

Unavailable

31

Torx Flange Screw M6 X 16

420641048

$2.46

32

Formed Hose

420956970

Unavailable

33

Gear Clamp

420851673

$4.71

34

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

35

Loctite 243, 10 ml

293800060

$20.77

36

Synth Oil 4T 12x1

293600054

Unavailable
