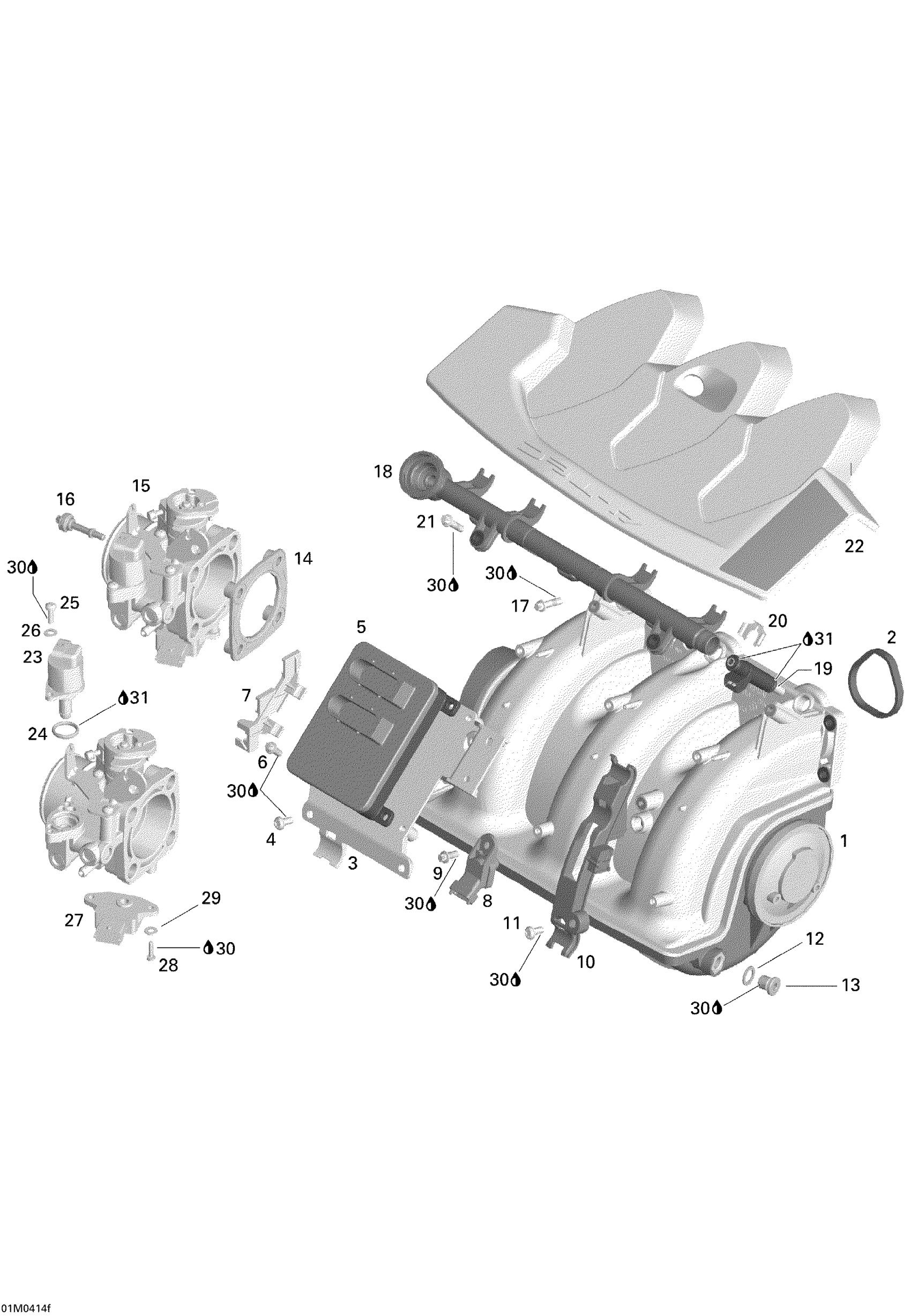

Ski-Doo Elite 1500 1st Edition, 2004 Intake Manifold Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$592.51

2

Gasket | Included in gasket kit

420950740

$3.61

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.46

5

Electronic Box

420664921

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

270600040

$157.92

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$1.74

12

Copper Washer

420250640

$0.81

13

Plug Screw M12 x 1,5

420241701

$10.76

14

Rubber Gasket

420950792

$8.89

15

THROTTLE BODY SOCKET - Call your local BRP dealership

420888906

Unavailable

16

Allen Screw M6 x 30,5

420440561

$3.67

17

Torx Flange Screw M6 X 25

420641238

$2.68

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

19

Injector

420874525

Unavailable

20

Injector Clip

420853030

$2.46

21

Torx Flange Screw M6 X 25

420641238

$2.68

22

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

23

Idle Bypass Valve

420963051

$254.12

24

O-Ring

420631780

$3.61

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Synth Oil 4T 12x1

293600054

Unavailable
