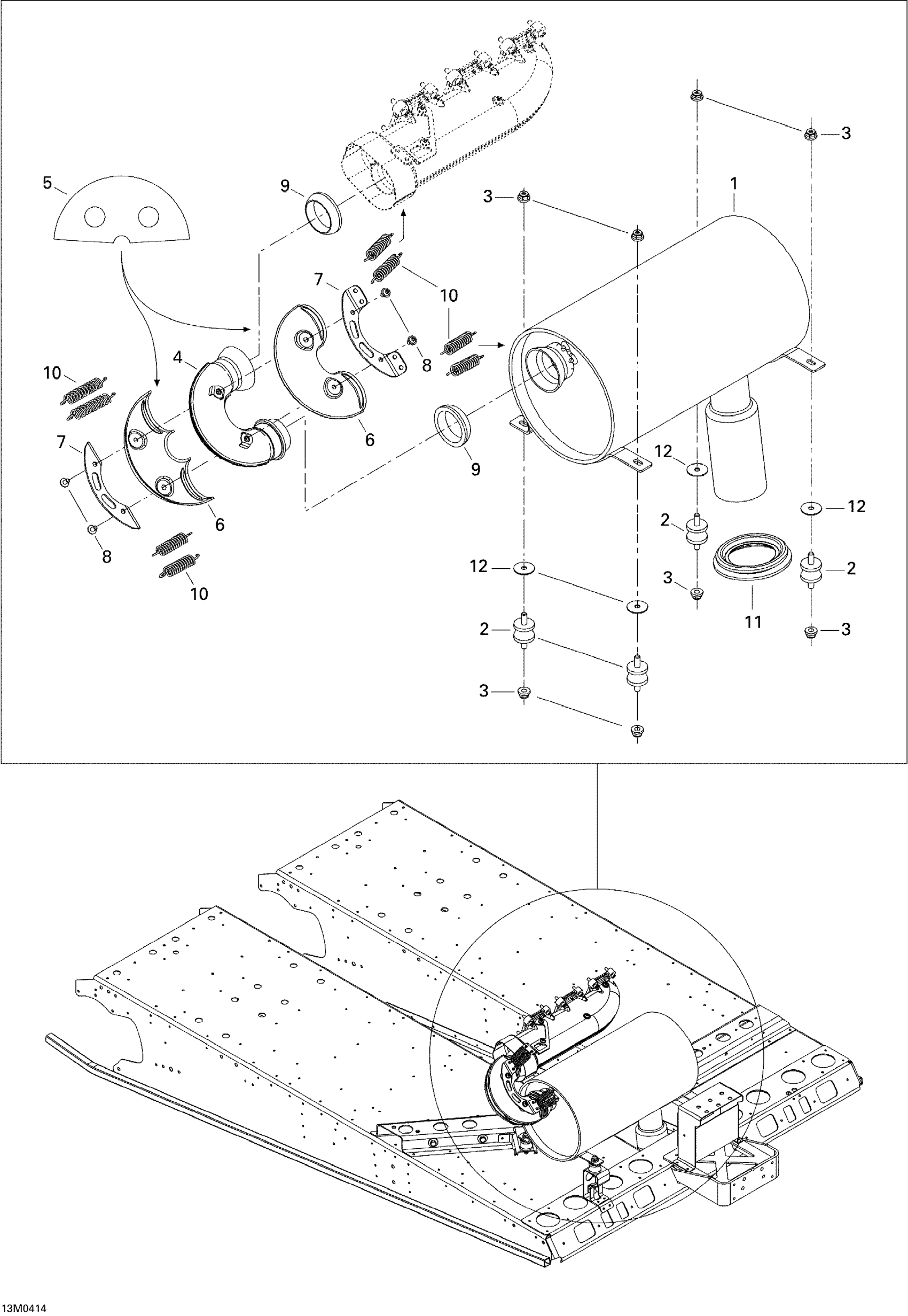

Ski-Doo Elite 1500 1st Edition, 2004 Exhaust System Diagram

#

Description

Price

1

Muffler Ass'y

514053481

Unavailable

2

Rubber Mount

514052994

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Elbow

514053711

Unavailable

5

Wooll Insulating

514053625

Unavailable

6

Heat Shield

514053530

Unavailable

7

Bracket

514053714

Unavailable

8

Socket Head Screw M6 X 10

514053811

Unavailable

9

Exhaust Gasket

514053712

Unavailable

10

Spring

514053793

Unavailable

11

Exhaust Grommet

514053394

Unavailable

12

Insulated Washer

514052891

Unavailable
