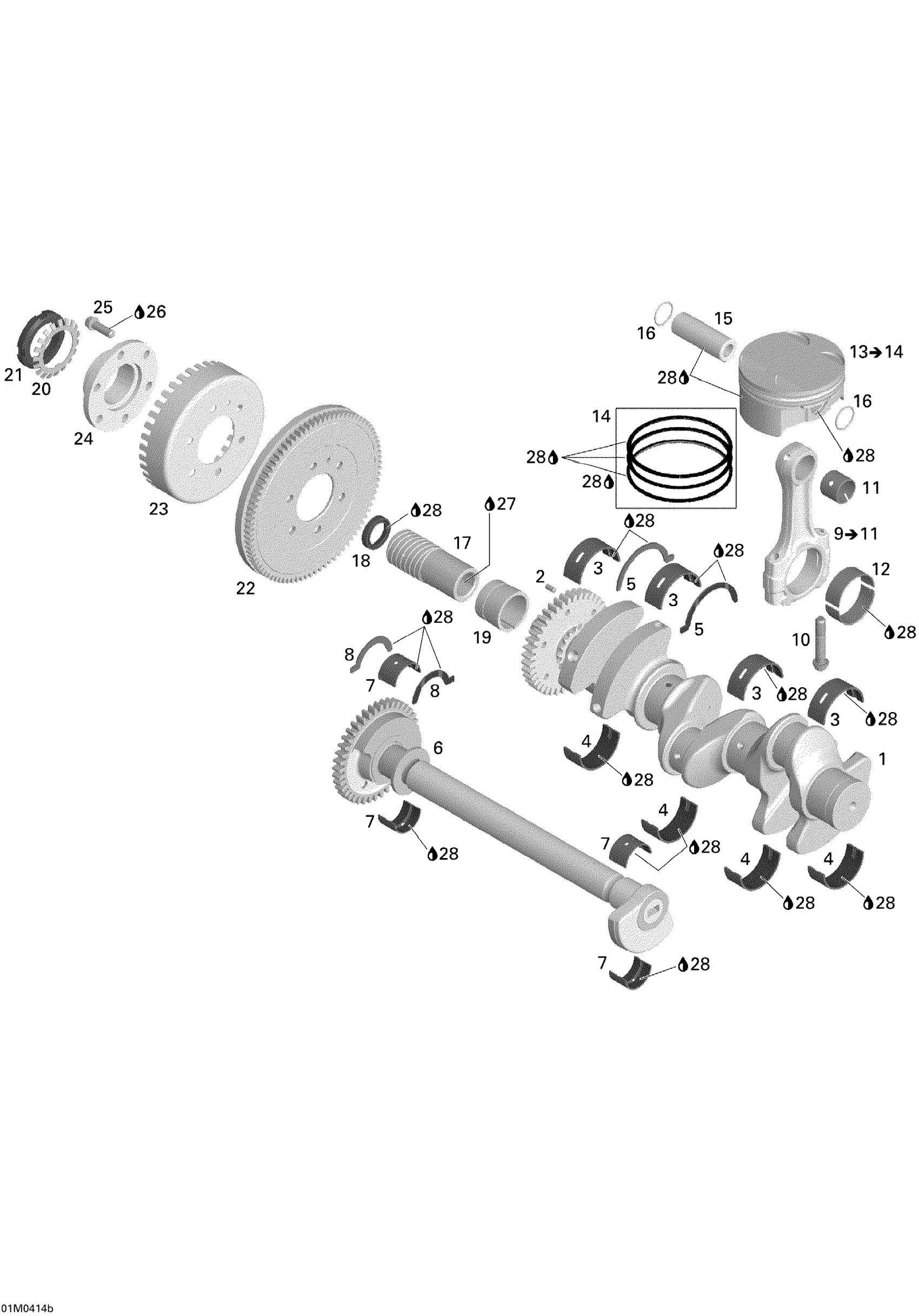

Ski-Doo Elite 1500 1st Edition, 2004 01- Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

REBUILT - CRANKSHAFT 1503 02 A 05 | Includes 1 to 2 This part replaces 420819078.

421000670

Unavailable

2

Drive Pin 5 X 10

420929650

$1.68

3

Plain Half-Bearing

420933456

$16.34

4

Plain Half-Bearing

420933466

$16.34

5

Half-Ring

420933475

$11.63

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$614.49

7

Plain Bearing Half

420933442

$19.99

8

Half-Ring

420933470

$7.41

9

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

10

Connecting rod Screw M10 X 1

420640991

$11.63

11

Bearing Sleeve

420933510

$14.22

12

Half-Bearing

420933523

$19.19

13

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$180.99

13

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

$164.99

14

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$65.99

14

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$71.49

15

Piston Pin

420216250

$23.99

16

Circlip

420845580

$2.64

17

Output Sleeve

420847954

Unavailable

18

Sealing Ring

420630551

$14.83

19

Adaptor Sleeve | Includes 19 to 21

420947210

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Starter Gear, 86 Teeth

420835163

$309.99

23

Trigger Wheel

420966851

$18.49

24

COUPLING FLANGE - Call your local BRP dealership

420959280

Unavailable

25

Torx Flange Screw M8 X 25

420440372

$4.12

26

Loctite 243, 10 ml

293800060

$21.49

27

Sealant Loctite 648

219703000

$45.99

28

Synth Oil 4T 12x1

293600054

Unavailable
