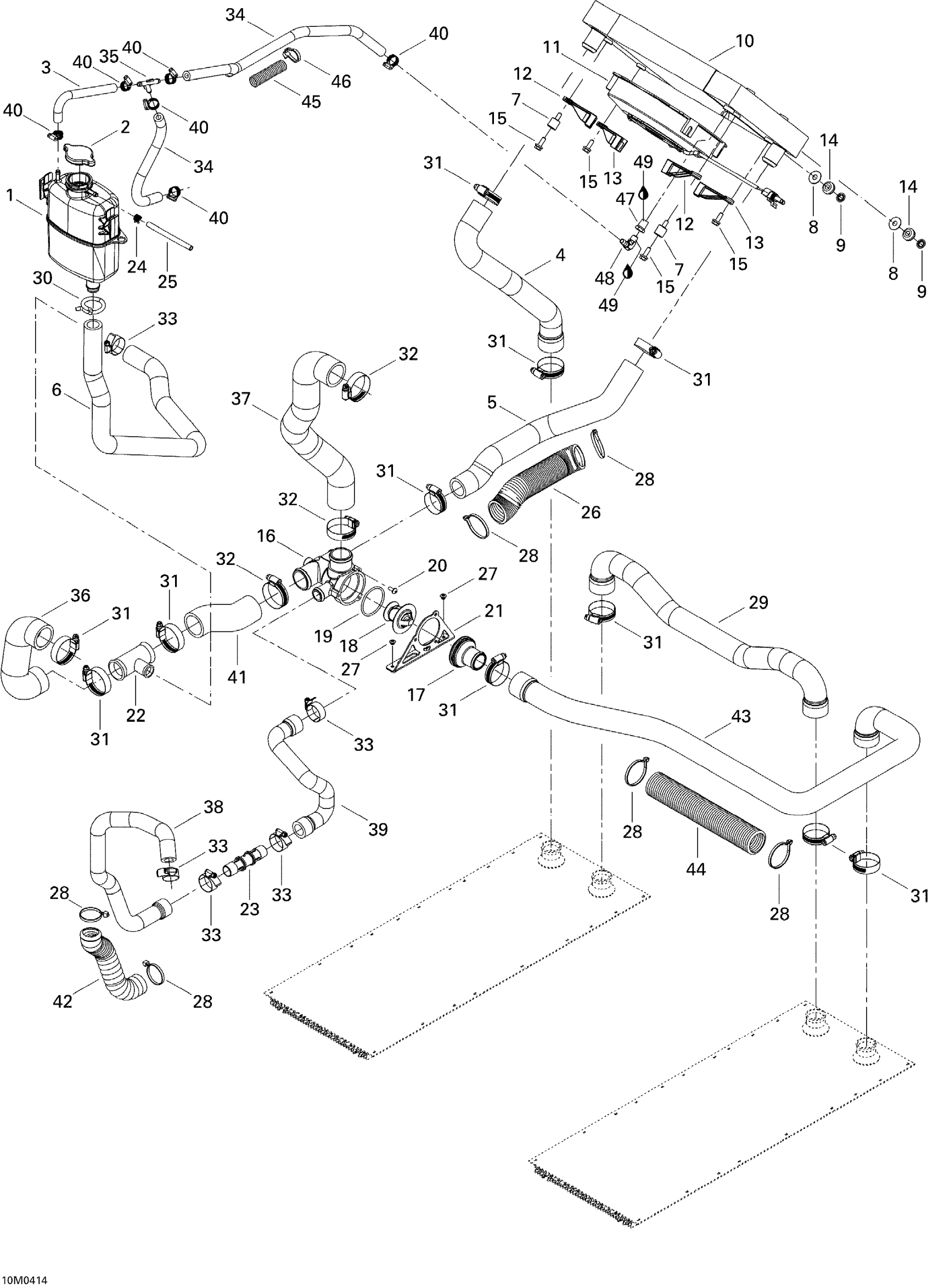

Ski-Doo Elite 1500 1st Edition, 2004 01- Cooling System Diagram
#
Description
Price
3
Formed Hose
276000131
Unavailable
4
Radiator Hose Return, Air
509000174
Unavailable
5
Radiator Hose Exit, Air
509000175
Unavailable
6
Tank Hose Return
509000227
Unavailable
7
Anti-Vibration Rubber Mount
509000284
Unavailable
8
Spacer
507032396
Unavailable
10
Radiator Ass'y
509000205
Unavailable
11
FAN ASS'Y - Call your local BRP dealership
709200075
Unavailable
12
FAN SUPPORT - Call your local BRP dealership
709200076
Unavailable
13
FAN SUPPORT - Call your local BRP dealership
709200095
Unavailable
16
Thermostat Housing
509000206
Unavailable
17
Cover
509000209
Unavailable
18
THERMOSTAT 87 C - Call your local BRP dealership
420922690
Unavailable
19
O-Ring
509000211
Unavailable
20
SCREW M5 X 12 - Call your local BRP dealership | 800 H.O. with DPM
205451286
Unavailable
21
Thermostat Support
509000242
Unavailable
22
T-Fitting
509000283
Unavailable
23
Hose Connector 3/4"
509000282
Unavailable
26
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
29
LH Radiator Exit Hose
509000229
Unavailable
34
Hose 8 mm
509000093
Unavailable
36
Pump Hose
509000233
Unavailable
37
Engine Exit Hose
509000234
Unavailable
38
Engine Coolant Hose
509000236
Unavailable
39
Formed Hose
509000265
Unavailable
41
Hose
509000262
Unavailable
43
Thermostat Exit Hose
509000231
Unavailable
44
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
47
Bushing
293700044
Unavailable
48
Elbow Fitting 90°
293700020
Unavailable
