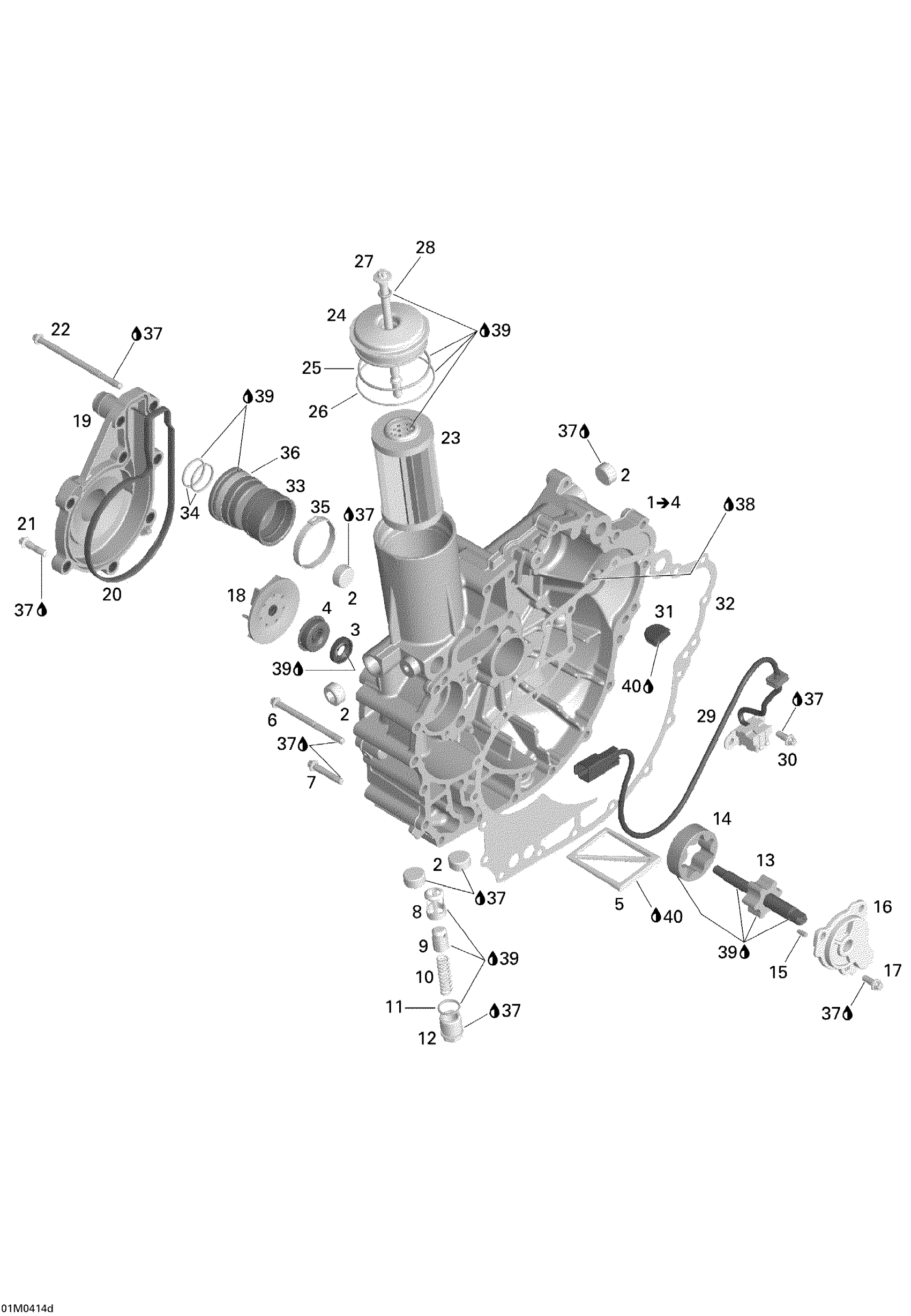

Ski-Doo Elite 1500 1st Edition, 2004 Clutch Cover, Magneto Generator Diagram

#

Description
Price

1

Timing Drive Cover Ass'y | Includes 1 to 4

420812462

Unavailable

2

Plug Screw M20 X 1.5

420641317

$10.58

3

Oil Seal

420650315

$9.62

4

Rotary Seal

420650371

$35.72

5

Oil Sieve

420956950

$12.48

6

Torx Flange Screw M6 X 85

420641228

$6.11

7

Torx Flange Screw M6 X 35

420641258

$2.78

8

Valve Seat Sleeve

420256606

$24.02

9

Piston Valve

420256638

Unavailable

10

Compression Spring

420939211

$7.16

11

O-Ring

420230890

$4.41

12

Plug Screw M20 X 1.5

420641052

$31.17

13

Pump Shaft Ass'y

420837472

$45.47

14

Oil Pump Rotor 16 mm

420956675

$29.22

15

Needle Pin

420929070

$1.56

16

Oil Pump Cover

420811591

$29.87

17

Torx Flange Screw M6 X 16

420641048

$2.46

18

Impeller

420922801

$14.27

19

Water Pump Housing

420822140

Unavailable

20

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

21

Torx Flange Screw M6 X 25

420641238

$2.68

22

Torx Flange Screw M6 X 105

420641338

$6.11

23

Oil Filter

420956741

$11.14

24

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

25

O-Ring

420230923

$2.59

26

O-Ring

420850500

$2.63

27

Oil Filter Screw Kit

295501207

$32.47

28

O-Ring

420950860

$3.20

29

CRANKSHAFT SENSOR - Call your local BRP dealership

420664140

Unavailable

30

Torx Flange Screw M6 X 16

420641048

$2.46

31

Rubber Plug

420660930

Unavailable

32

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

33

Ball Bearing Ass'y | Includes 33 to 34

420832750

Unavailable

34

O-Ring

420631612

$3.52

35

Gear Clamp

420851653

$6.11

36

Gear Clamp 46.8-50.0MM

420853023

$6.11

37

Loctite 243, 10 ml

293800060

$20.77

38

Grease, Super Lube

293550030

$24.67

39

Synth Oil 4T 12x1

293600054

Unavailable

40

Loctite 5910, 300 ml

293800081

$57.99
