Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11065

CAP

11065-0969

$2.02

16160

BODY,THERMOSTAT

16160-0830

$46.93

23062

BRACKET-COMP

23062-1414

$34.04

39062

HOSE-COOLING,THERMO.-RADIATOR

39062-0781

$13.98

39062A

HOSE-COOLING,RADIATOR-W/PUMP

39062-0861

$10.17

39062B

HOSE-COOLING,CAP-FITTING

39062-0996

$40.45

39062C

HOSE-COOLING,FITTING-RESERVOIR

39062-0997

$15.82

39062D

HOSE-COOLING,OVER FLOW

39062-0998

$32.16

43078

RESERVOIR

43078-0619

$42.73

49054

THERMOSTAT

49054-0001

$30.76

92005

FITTING

92005-0721

$9.09

92055

RING-O,46.7X2.4

92055-0992

$6.32

92071

GROMMET

92071-1115

$5.46

92154

BOLT,FLANGED,6X20

92154-1778

$2.26

92173

CLAMP

92173-0050

$6.61

92173A

CLAMP,12MM DIA.

92173-0736

$5.05

92173B

CLAMP

92173-1688

$3.86

92210

NUT,WELL,5MM

92210-0498

$7.29

132

BOLT-FLANGED-SMALL

132BB0516

$1.28

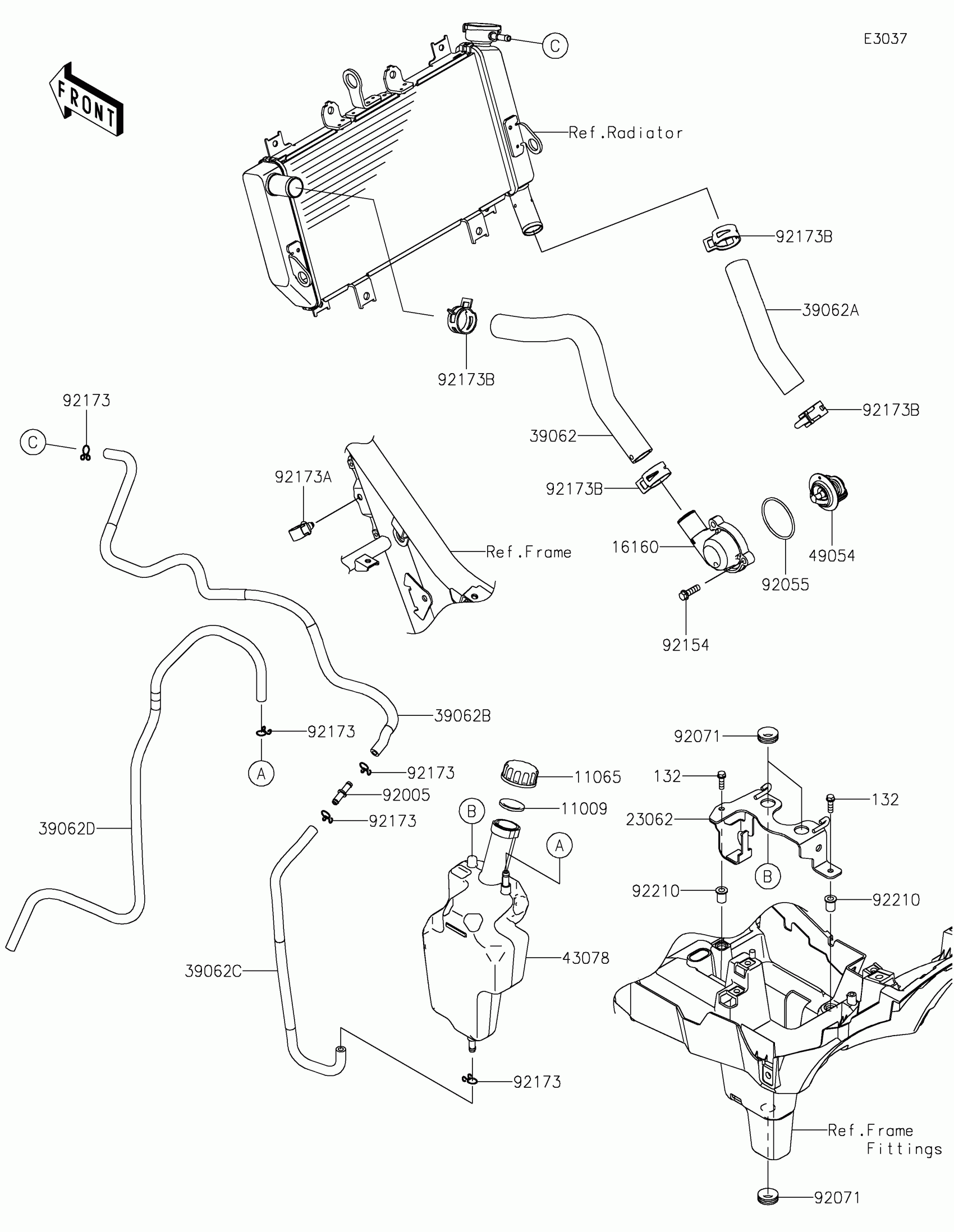

Kawasaki Eliminator Water Pipe Diagram

GASKET,RESERVOIR TANK CAP

CAP

BODY,THERMOSTAT

BRACKET-COMP

HOSE-COOLING,THERMO.-RADIATOR

HOSE-COOLING,RADIATOR-W/PUMP

HOSE-COOLING,CAP-FITTING

HOSE-COOLING,FITTING-RESERVOIR

HOSE-COOLING,OVER FLOW

RESERVOIR

THERMOSTAT

FITTING

RING-O,46.7X2.4

GROMMET

BOLT,FLANGED,6X20

CLAMP

CLAMP,12MM DIA.

CLAMP

NUT,WELL,5MM

BOLT-FLANGED-SMALL
