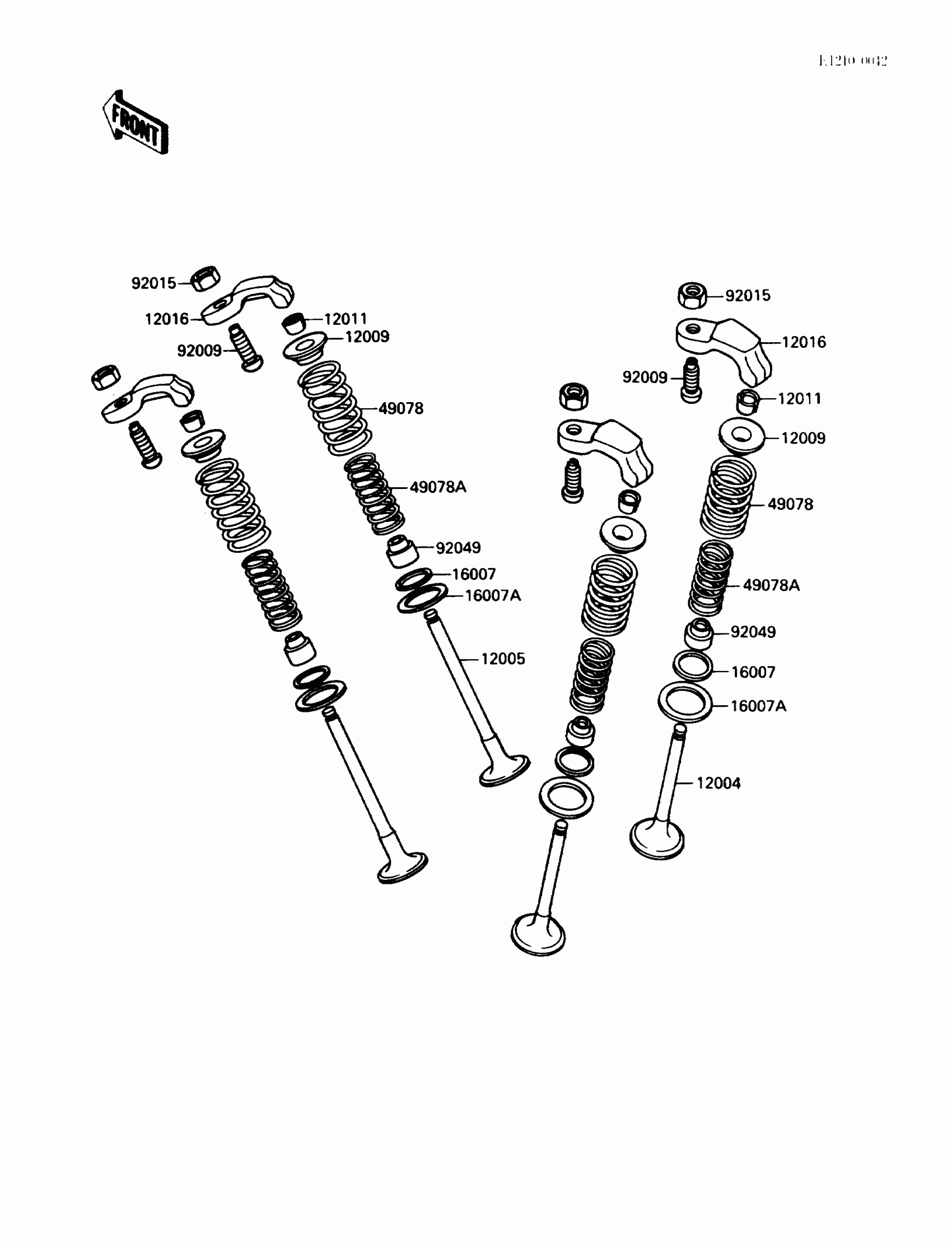

Kawasaki Eliminator Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-1074

$41.04

12005

VALVE-EXHAUST

12005-1091

$73.78

12009

RETAINER-VALVE SPRING

12009-1060

$10.28

12011

COLLET

12011-1051

$1.96

12016

ARM-ROCKER

12016-1067

$83.85

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1143

$5.54

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1144

$6.16

49078

SPRING-ENGINE VALVE

49078-1078

$16.56

49078A

SPRING-ENGINE VALVE

49078-1079

$16.56

92009

SCREW,6MM

92009-1424

$14.64

92015

NUT,6MM

92015-1586

$6.15

92049

SEAL-OIL,VSB58.558

92049-1218

$4.08
